How to add curved channels into parts

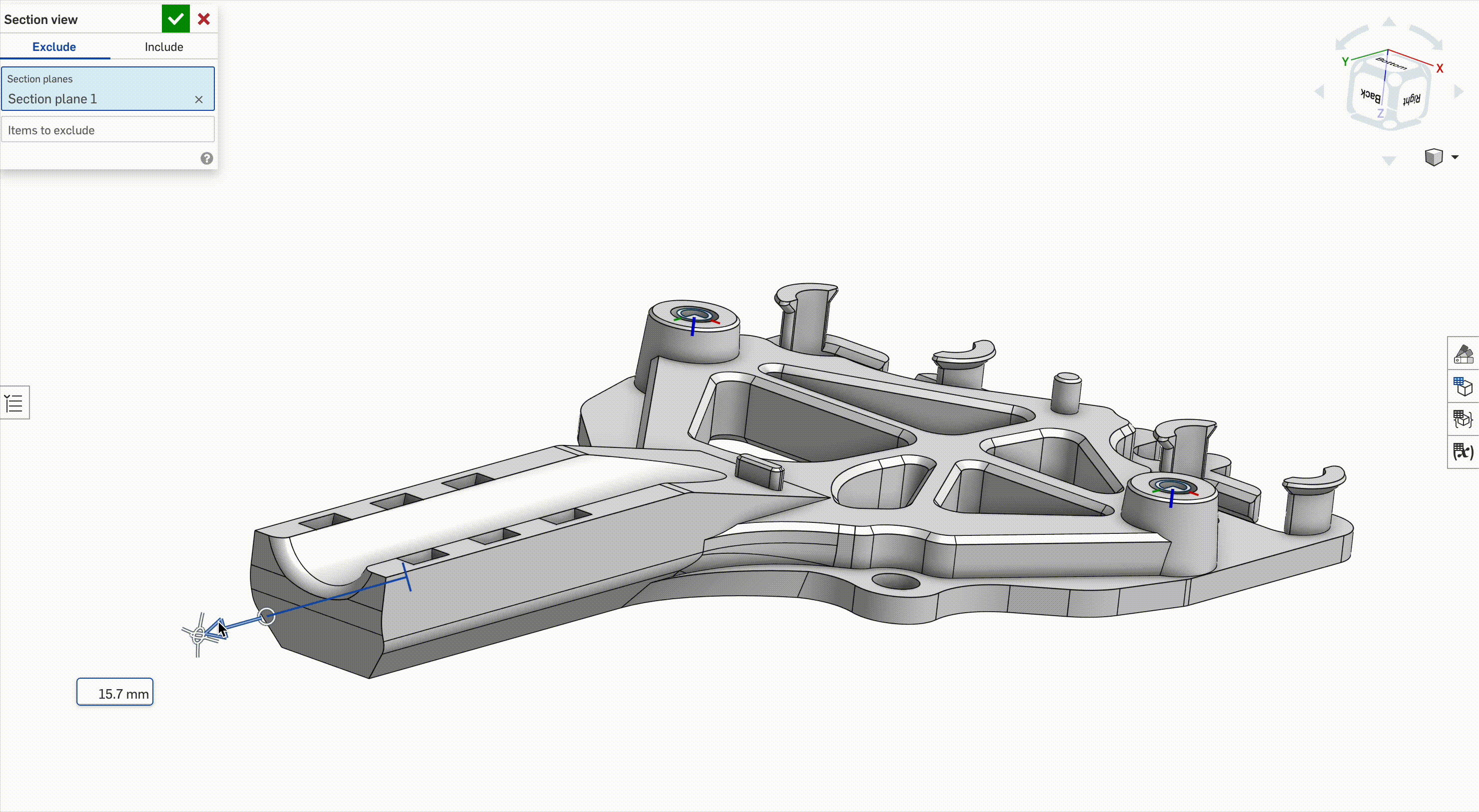

Hi everyone, I am still learning cad so apologies in advance if this is an obvious question. I am re-creating a part to mount a PCB and I am quite stumped as how these curved channels for zip-ties for cable strain relief are being added into the part. Could someone point me in the right direction on what I should be doing to re-create those cuts please? Any help would be appreciated!
Best Answers
-
Hello. Here is a link to a document using one method, not necessarily the method used by the creator of the model you posted. - Scotty
0 -
Correct, and you are welcome. - Scotty
0
Answers
-
Hello. Here is a link to a document using one method, not necessarily the method used by the creator of the model you posted. - Scotty
0 -
0
-
This is one method but as with most 3D modelling there a several ways to do this
https://cad.onshape.com/documents/29d59f3eba5c218e40bede3f/w/5e009e28023237fb1dc3e5c8/e/b9a18d594c88732407e76048
0 -
Thank you for the document, very helpful! For the line you made, was it a 3 point arc that you then offset and them mirrored?
1 -
Correct, and you are welcome. - Scotty
0
