Creating an angled connection between two cylinders
kvxd
Member Posts: 5 ✭

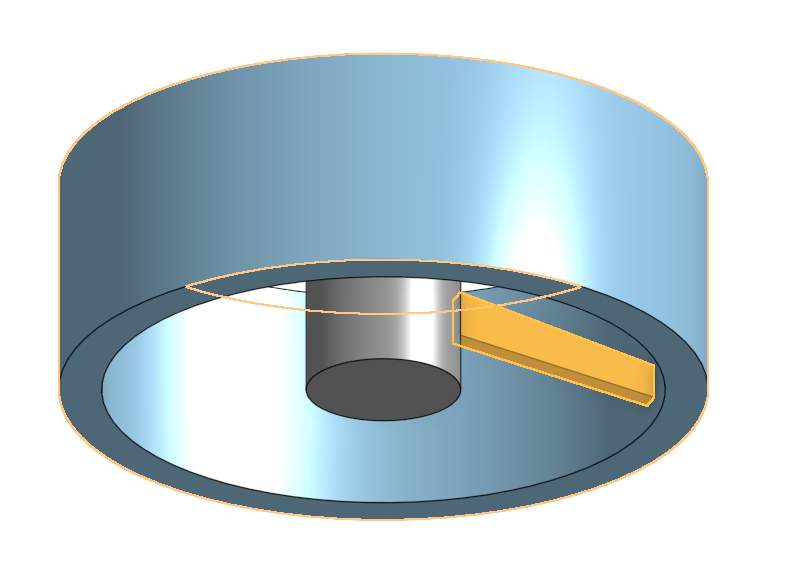

I'm trying to create a part which connects two cylinders.
My approach is problematic. It for example does not allow me to use the boolean tool to union the connection and the smaller cylinder because they do not actually connect.
What would be the correct design approach to tackle this problem?
https://cad.onshape.com/documents/d6f11b3078b24dc6010b40ff/w/bd14e41c87f8cba0240f61bf/e/ee0ccf3292d164e49231686a
Tagged:
0
Answers
You need to bring the rib end to center stub. There is a gap causing nonmanifold geometry which the Boolean can't deal with.
https://cad.onshape.com/documents/667f84d127e87ac4c557d639/w/f213d69bbce0c596e1ccb315/e/6c560bf76f3f9271718f243a
Here is one way of a few to take care of the issue.
I can't access the document you linked. Perhaps it is not shared?
Thanks for your help
It's public now.
Thank you so much :)
