Burr

hobie_smith
hobie_smith ✭✭
in Community Support

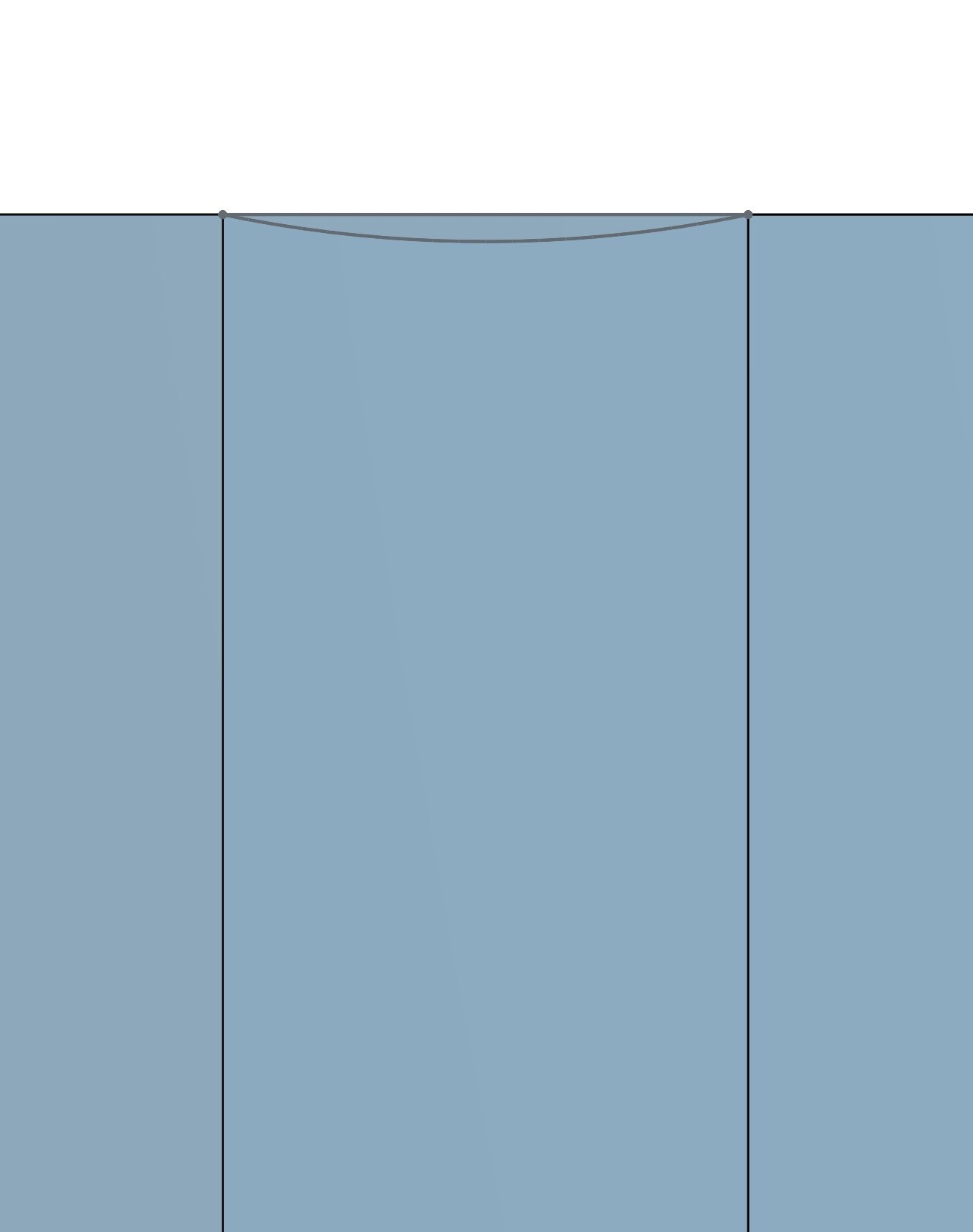

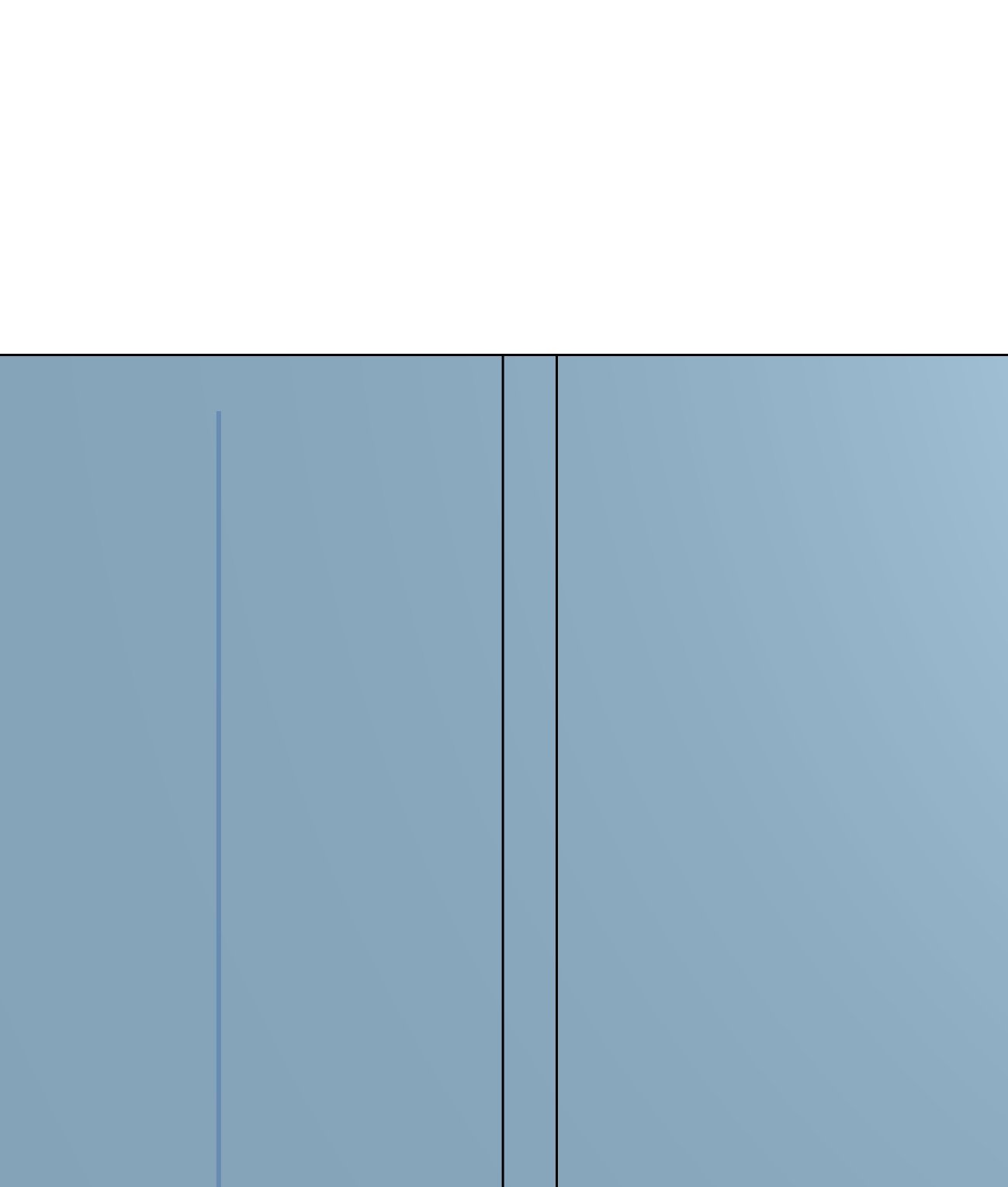

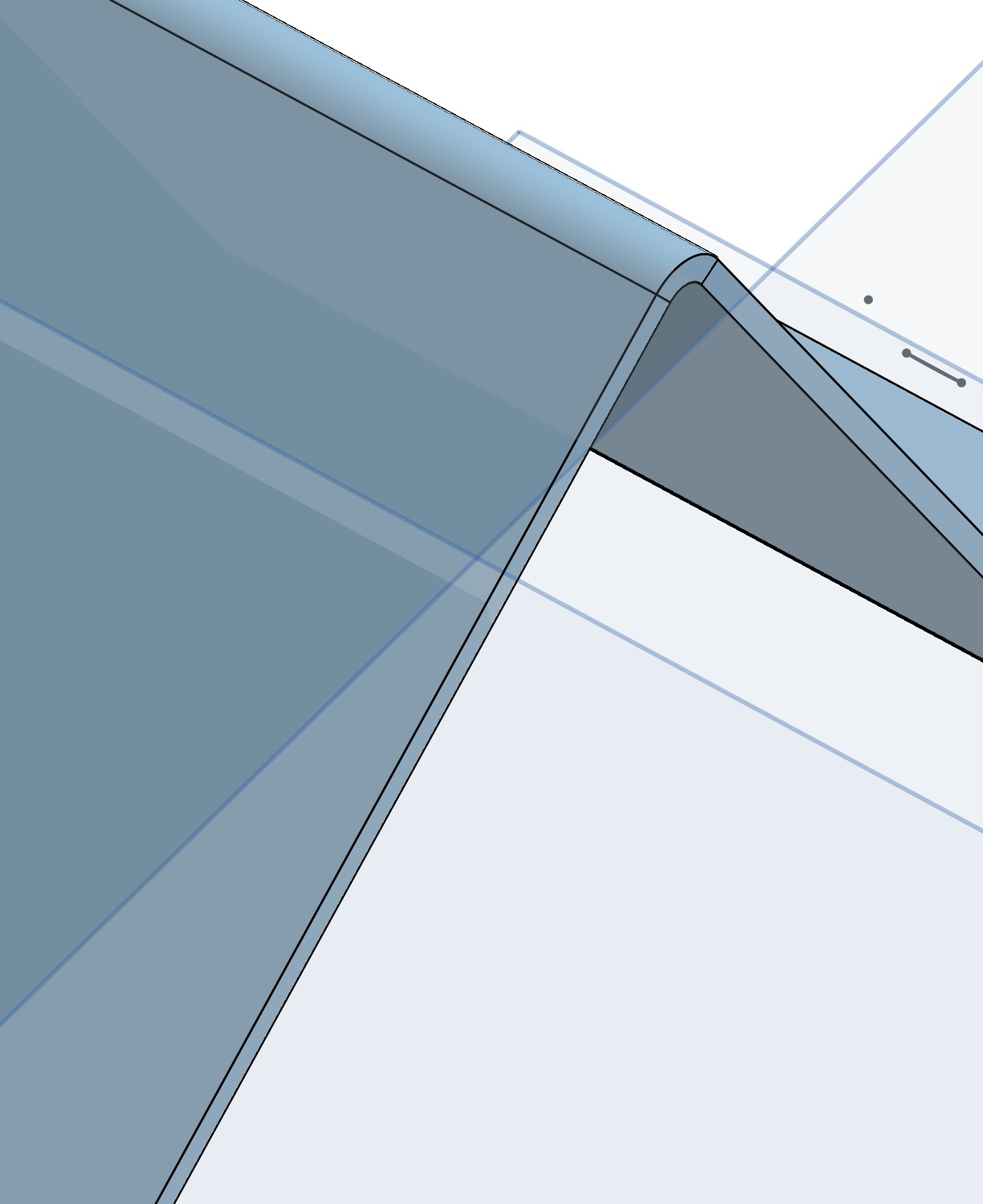

Hello,Is there a way to automatically cut away the burr that forms along the bend line on the sheet metal part directly in CAD?Here are 3 images.

IMG_2975.jpeg IMG_2976.jpeg IMG_2977.jpeg

Answers

  • MichaelPascoe
    MichaelPascoe PRO
    edited August 2025

    It is possible, but there is not a feature currently made for it that I'm aware of. (Someone correct me if you know of one.)

    To do this you would use FeatureScript and make a custom feature.
    If this is for commercial work, you could have CADSharp write it for you.
    If this is personal or you want to do it yourself, here are the resources for learning FeatureScript:

    FeatureScript Fundamentals by Onshape

    FeatureScript Video Tutorials by CADSharp

    .
