Using loft to create a winglet

sania_dhawan
sania_dhawan Member Posts: 2 ✭
in Community Support

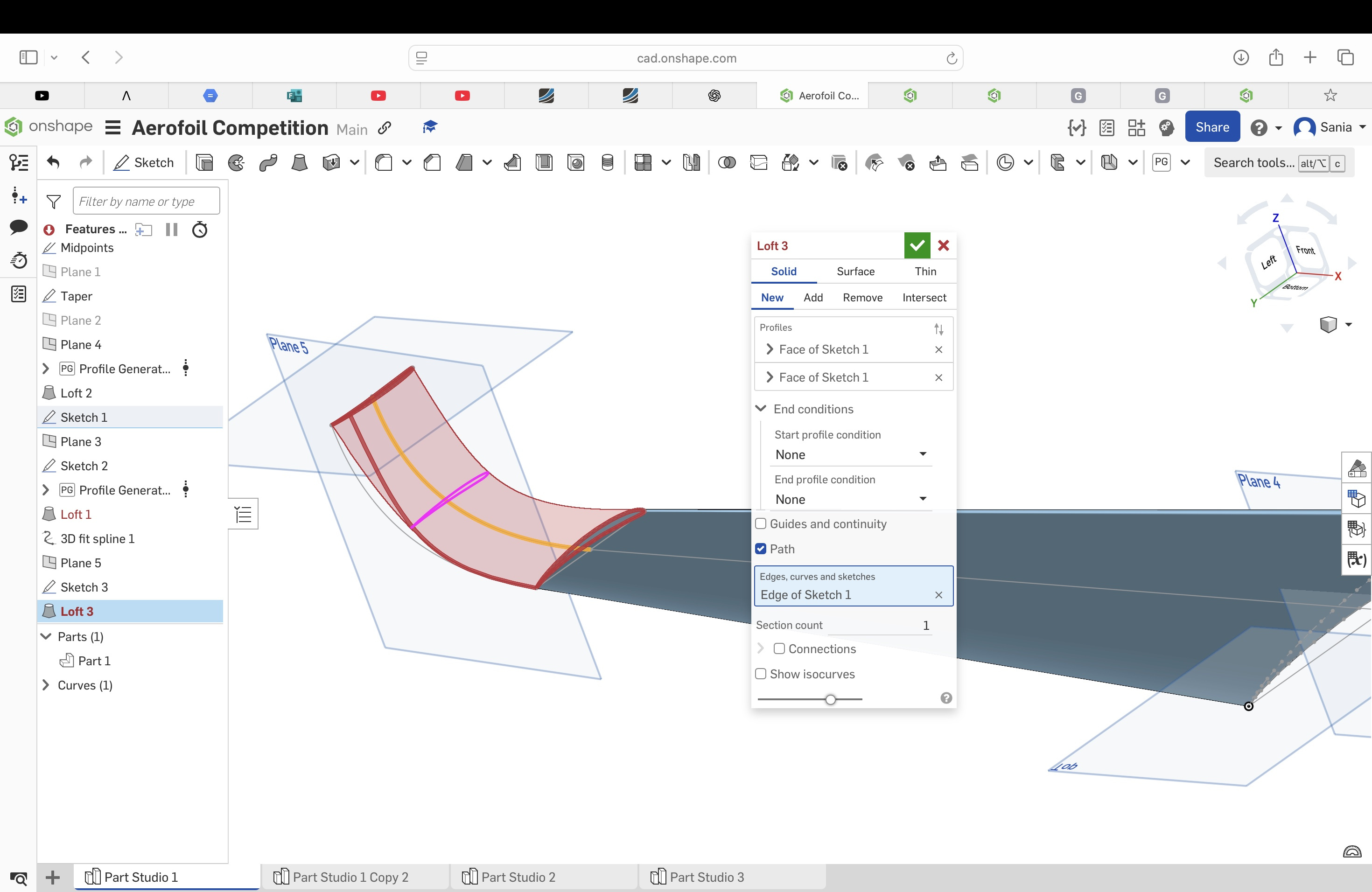

I'm trying to use the loft feature to create a winglet by connecting 2 different aerofoil sketches (1 bigger than the other), any ideas why it isn't working?

Image 21-08-2025 at 18.51.jpeg
Tagged:

Answers

  • MDesign
    MDesign Member Posts: 1,458 PRO

    looks like your profiles have a different amount of vertices. Use the connections option in the loft to tell Onshape exactly which points should connect to which.

  • martin_kopplow
    martin_kopplow Member Posts: 1,535 PRO

    As MDesign already said. But be super careful. This simple loft approach is very likely to not create the exact intermediate airfoils you expect. If you're after performance, you'll need a bit more helper geometry.
