MBD Step File Viewer
stuart_aspinall
Member Posts: 15 PRO
in General
Does anyone know a good free step file viewer that will show the MBD Info from the Inspection table. When I export the file to Step format and select AP242 format, with the Use Custom Annotation Text height set to 3mm, I try it in EDrawings, which just opens the model, doesnt show any annotations.
I just want to check that they are showing before sending Step file to manufacturers.
Thanks
Stu
0
Comments

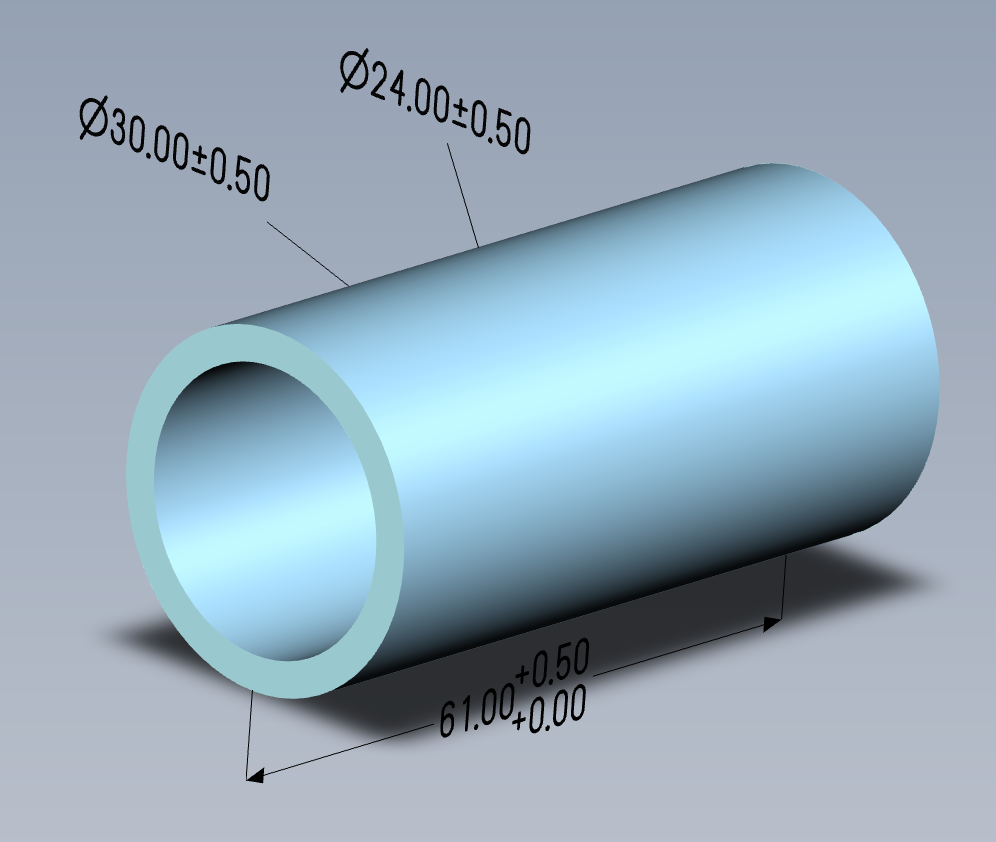

Tried again, no idea why as I didnt change anything, and EDrawings now shows the MBD annotations….result…
That's a Dassault product baby. Something breaks randomly? Change nothing and try again and it'll work. Maybe.
Derek Van Allen | Engineering Consultant | Meddler@stuart_aspinall
Shouldn't ODA's Open Step Viewer be able to show this kind of stuff? https://openstepviewer.com/ (60 day demo)
Why would you need this when you can share Onshape Documents online? It's cloud based and no viever needed.
