Can someone please help me understand why the linear feature pattern isn't generating some instances
arjun_chebrolu
Member Posts: 2 ✭
The Linear feature pattern sometimes skips over some instances but then generates the next one. Can someone please help me find out why? The doc in question is in the link below and its in part studio 1.
Best Answer
-
martin_kopplow
Member Posts: 1,380 PRO

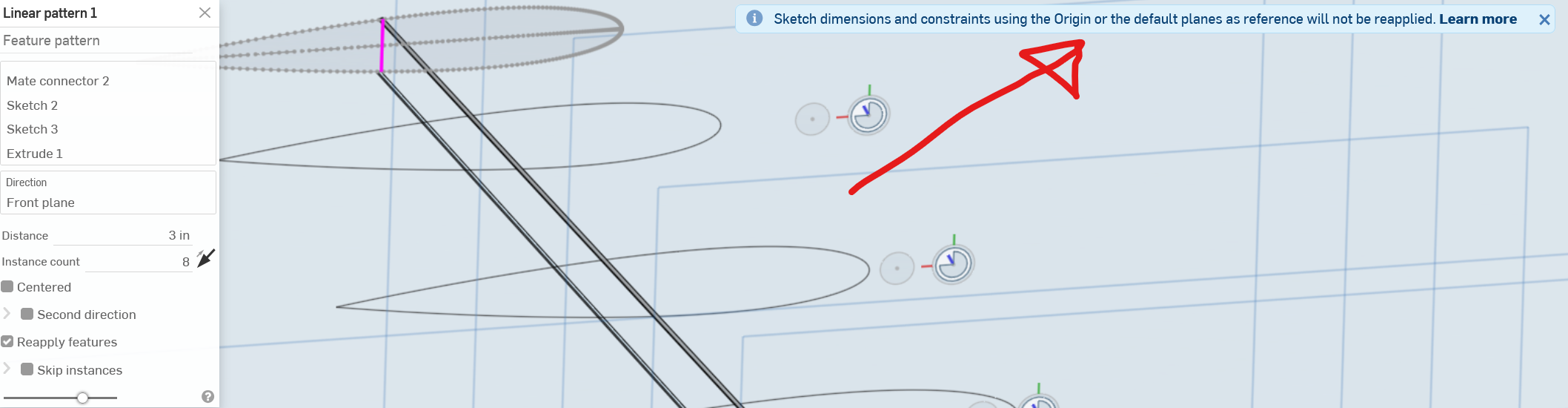

You've read that message?
This is by far the most interesting method for creating wing ribs I have ever seen. We learn someting new every day.

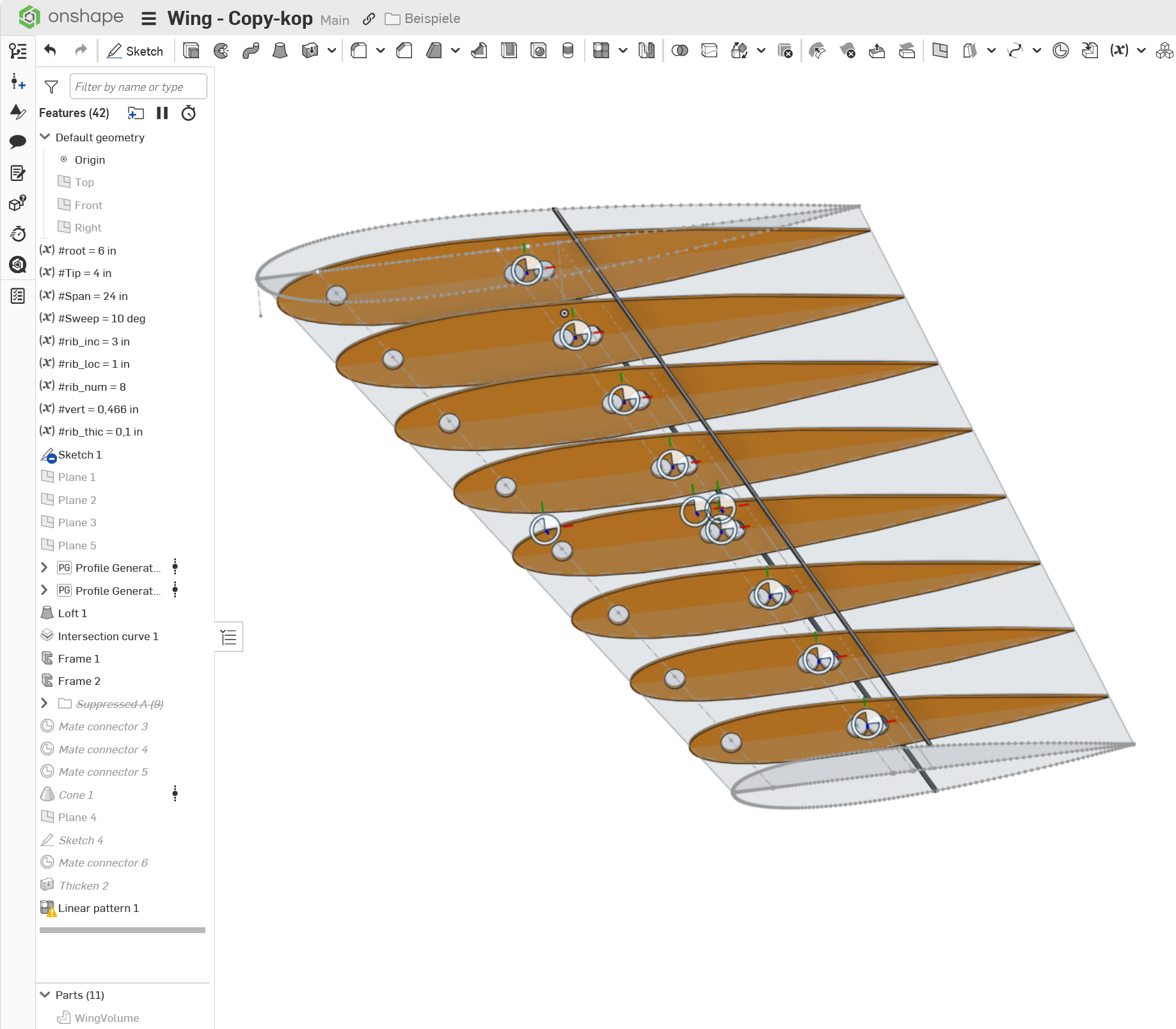

Anyway, I modified the linear pattern so as to use MCs instead of planes, used a solid for the wing volume, which already had the holes for the ribs by means of a boolean. It worked then: It is fewer steps, too.
The diameter of the holes in the ribs is probably off, sorry, it was but an exaple.
0
Answers
You've read that message?
This is by far the most interesting method for creating wing ribs I have ever seen. We learn someting new every day.
Anyway, I modified the linear pattern so as to use MCs instead of planes, used a solid for the wing volume, which already had the holes for the ribs by means of a boolean. It worked then: It is fewer steps, too.
https://cad.onshape.com/documents/f76692da35e08e1f71d30ff7/w/3b8130bfd6a1f48560fe1bae/e/b4bdd6aa6a914e79b79b19ef?renderMode=0&uiState=69e61173388748b73c13db9a
The diameter of the holes in the ribs is probably off, sorry, it was but an exaple.
