Lattice Pattern (New Custom Feature!) 🆕

MichaelPascoeMichaelPascoe Member Posts: 2,917 PRO
edited July 17 in FeatureScript

.

CadsharpSpin.gif   CADSharp  has sponsored a new custom feature:

.

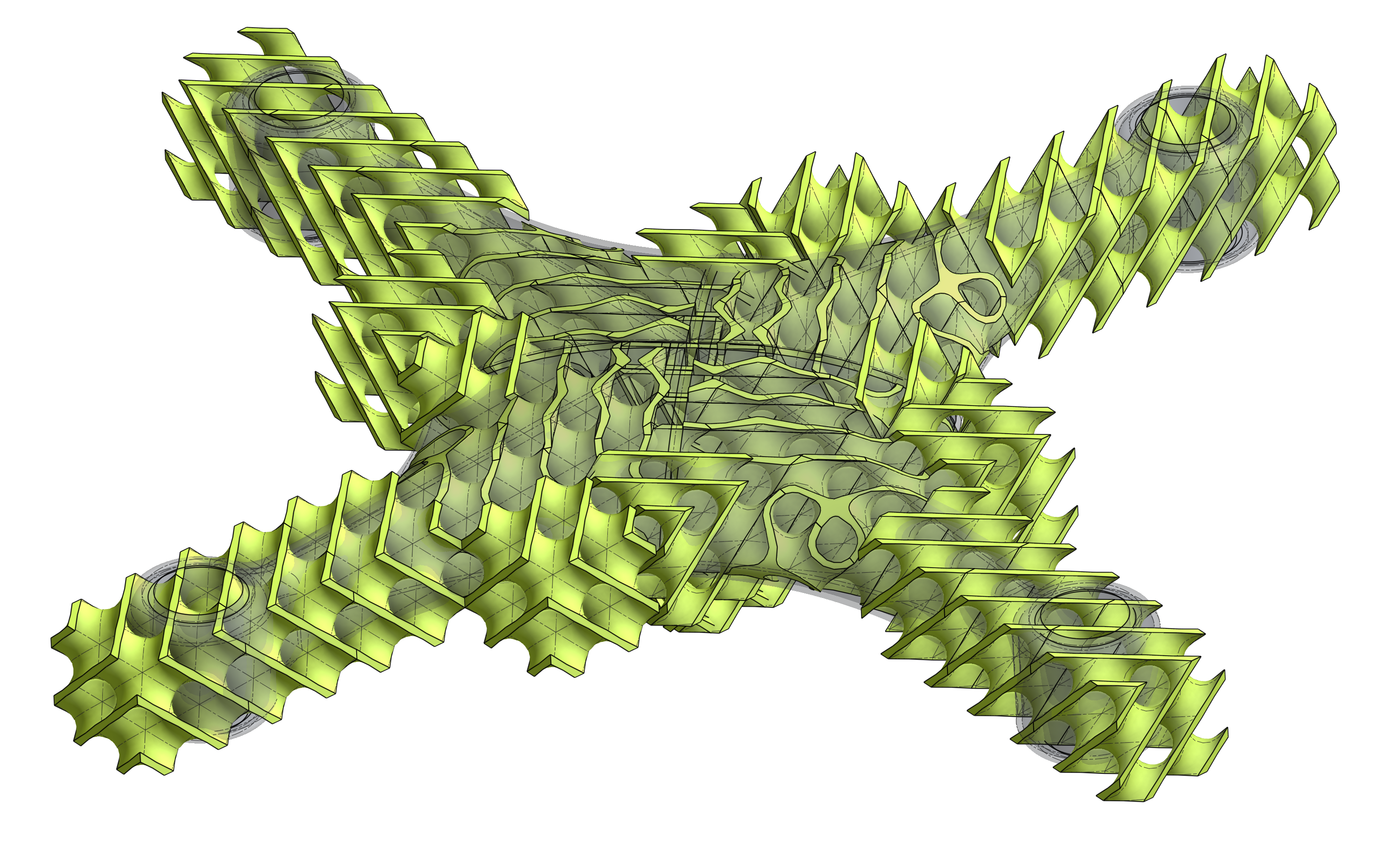

image.png Lattice Pattern
Fills body regions with a structural lattice. Useful for adding internal structure to parts.
https://cad.onshape.com/documents/a376466732c0c8becb886f96/w/c464b40a60ca32ffc5627252/e/a79a1…

Don't forget to vote on the Feature Store - (Improvement Request)
so that we can have an efficient place to distribute custom features to users.

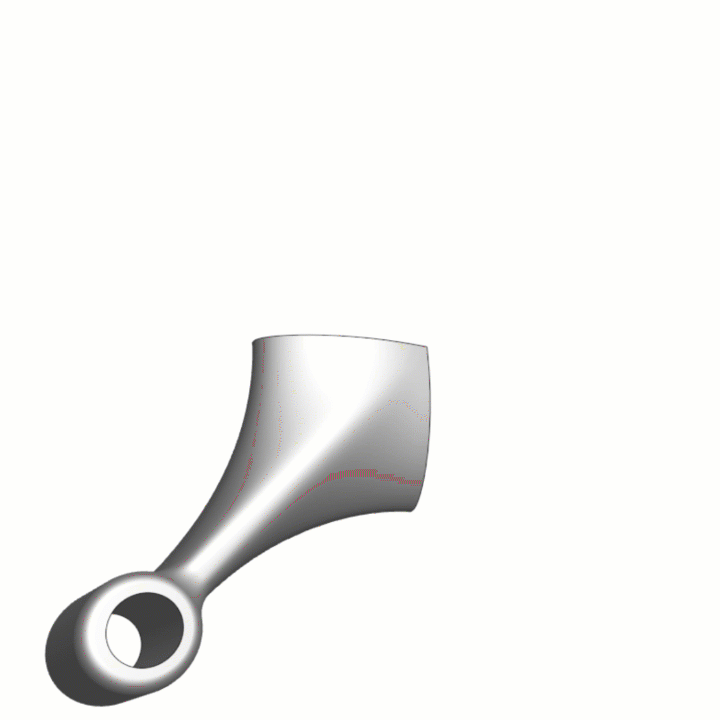

Lattice Pattern Short.gif

https://youtu.be/HsC22fw2Tjs

.


RENDERCAD
rendercad.ai - Photorealistic product rendering.

â–šâ–žâ–šâ–žâ–šâ–žâ–šâ–žâ–š
________________________________________________________________________
Tagged:

Comments

  • S1monS1mon Member Posts: 4,346 PRO
    edited July 17

    Amazing. This replaces workflows with other tools and with the custom option, expands possibilities.

    Two small things:

    1. The example in the document glitches with "diamond".

    2. The YouTube video has audio echo starting at around 9:19
    https://youtu.be/T3oDPwWJ5rw?t=559

    Simon Gatrall | Product Development, Engineering, Design, Onshape | Ex- IDEO, PCH, Unagi, Carbon | LinkedIn

  • MichaelPascoeMichaelPascoe Member Posts: 2,917 PRO
    edited July 17

    Thanks a ton @S1mon!

    • Video fixed.
    • "Diamond" option taken off example studio enum and slapped a "[BETA]" onto that option in the feature. This is more of an issue with Onshape and Parasolid functionality involving either "shared vertices" or "non manifold geometry" even though these surfaces are perfectly valid, this should not be an issue.

    RENDERCAD
    rendercad.ai - Photorealistic product rendering.

    â–šâ–žâ–šâ–žâ–šâ–žâ–šâ–žâ–š
    ________________________________________________________________________
  • EvanReeseEvanReese Member, Mentor Posts: 3,002 PRO

    Ooh this is a really cool one! Thanks.

    Evan Reese
    The Onsherpa | Reach peak Onshape productivity
    www.theonsherpa.com
