Internal bevel gears

robert_pastor877
robert_pastor877 Posts: 4 ✭
edited August 12 in Community Support

Hi, I'm trying to design a gear pair that would mesh two axes at 135 degrees (or 45 degrees depending on how you look at it). I tried several gear generators feature scripts, but none of them seems to allow me to generate this geometry.

I'm attaching some pictures of what I'm trying to acomplish.

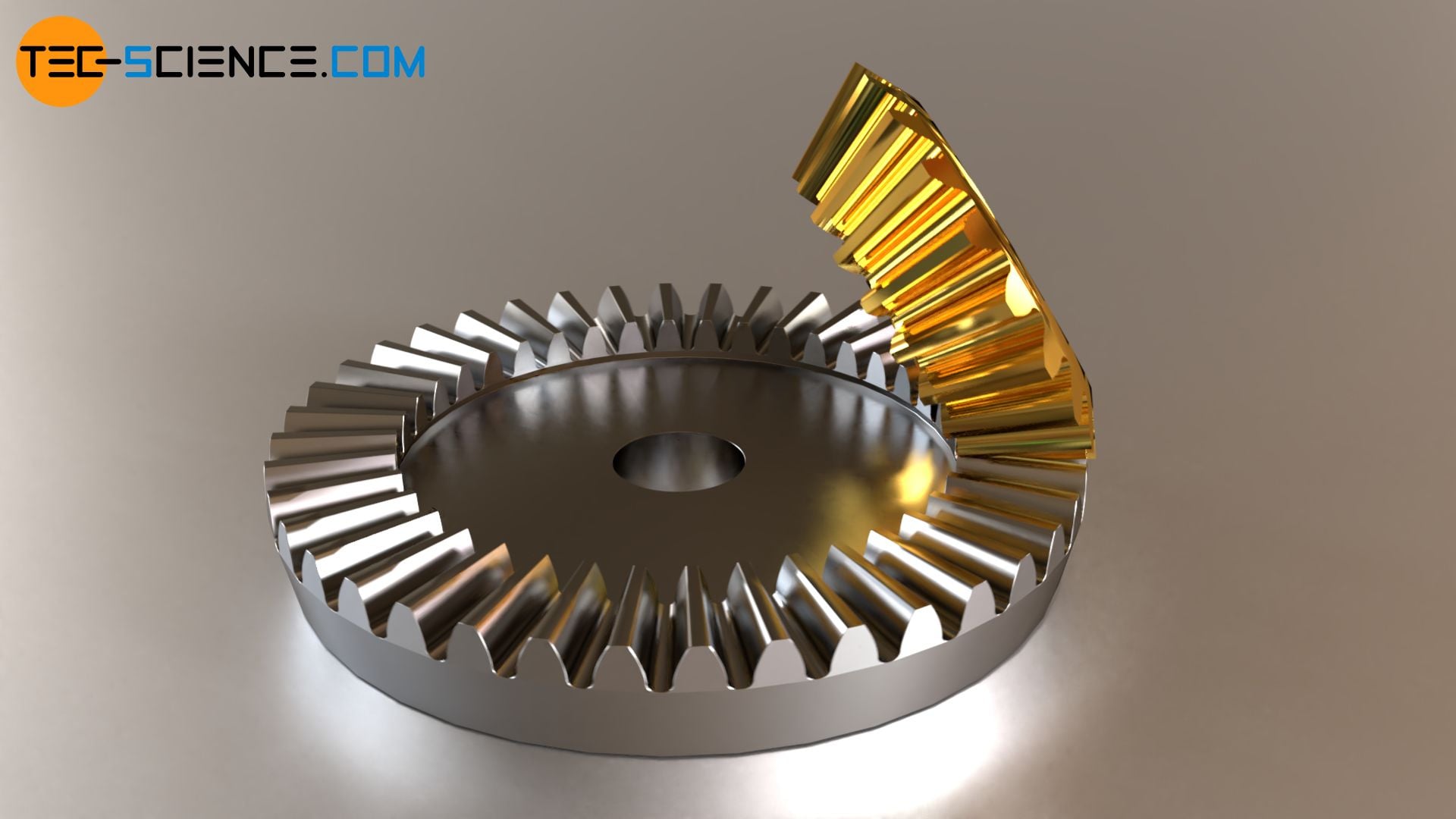

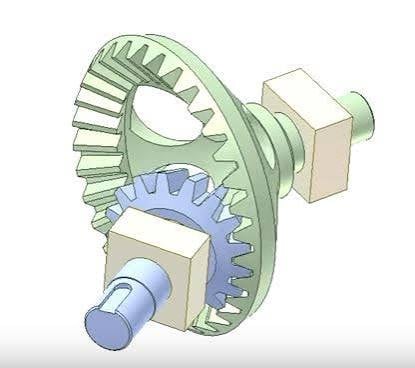

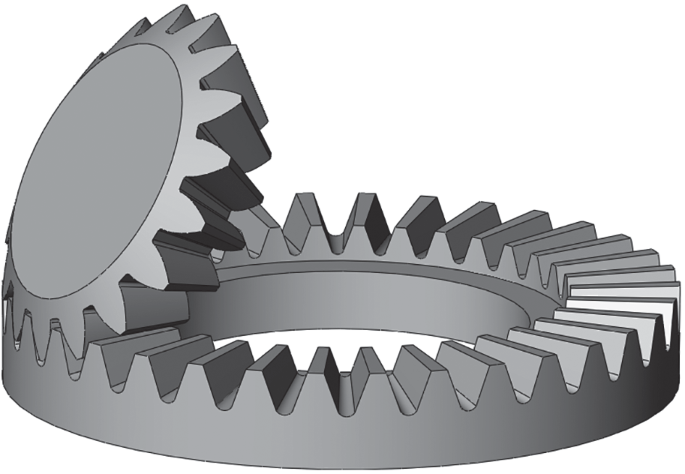

gears1.jpg gears2.png gears3.jpg

Do you know about any custom feature script that would generate this gear pair? The 135 degree requirement is not strict, I will be fine with anything in between 130 and 140 degrees.

Best Answer

  • jose_pedro674
    jose_pedro674 Posts: 14 ✭✭
    edited August 13 Answer ✓

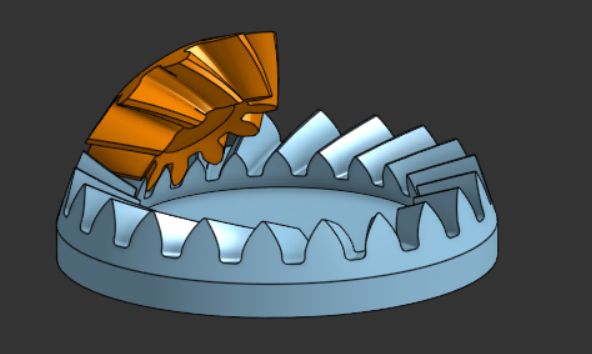

    Try this one, the angle between axes ranges from 10 to 170 degrees.

    https://cad.onshape.com/documents/0a129f7d4635a6f29a6d99ea/w/a92fdb902e6791b3e8a33ccc/e/3418bac956ca379d91ab26e1?renderMode=0&uiState=6a7df2d3e325d4a8ddeeafb5
