helical slot cylinder

mitchell_lewis354
mitchell_lewis354 Member Posts: 4 ✭
in Community Support

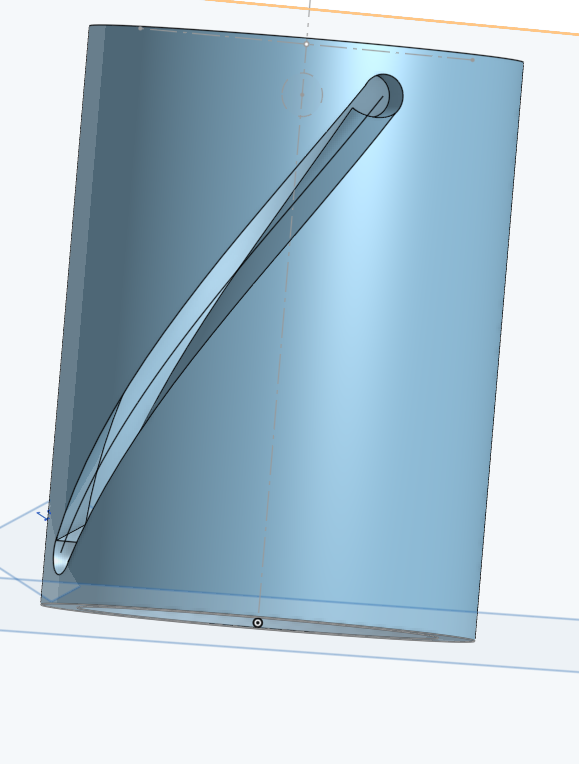

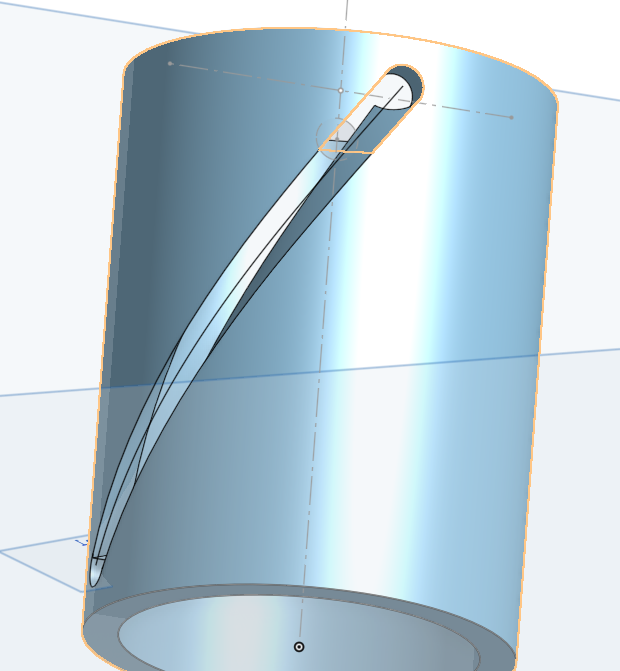

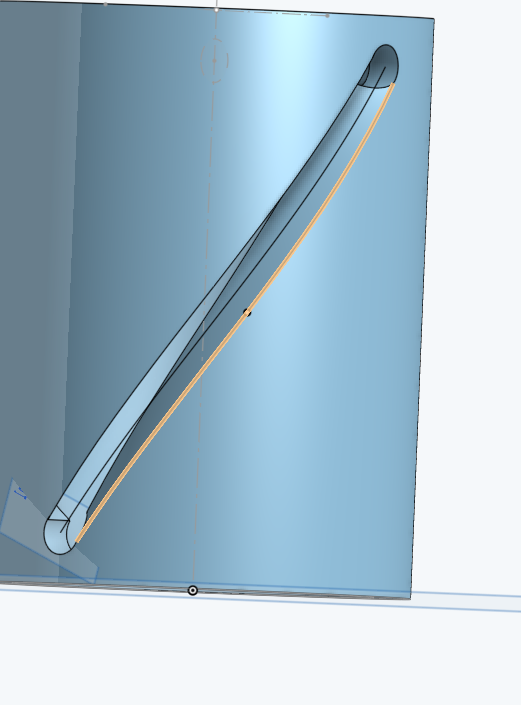

Having some issues with my slot on my cylinder and making my hilux right to extrude the slot. looking for some guidance on this. You can see how its not matching my circles on the cylinder. Thanks!

Screenshot 2026-09-06 190238.png Screenshot 2026-09-06 190259.png Screenshot 2026-09-06 190330.png

Answers

  • robert_scott_jr_
    robert_scott_jr_ Member Posts: 912 ✭✭✭

    Hey Mitchel. One method would be to create a plane on the endpoint of the helix and draw a rectangle with the sides having the dimensions of the slot's width and depth. Sweep-Remove the rectangle profile along the helix.

    Here is another method. - Scotty

  • martin_kopplow
    martin_kopplow Member Posts: 1,614 PRO

    This question has been discussed and solved in this forum at least twice within the past year. A search for "Helical Slot" might help.

  • mitchell_lewis354
    mitchell_lewis354 Member Posts: 4 ✭

    Thank you!
