Surface Text "Cut Out" extrude not generating

ode_tujoy
ode_tujoy Member Posts: 15 ✭

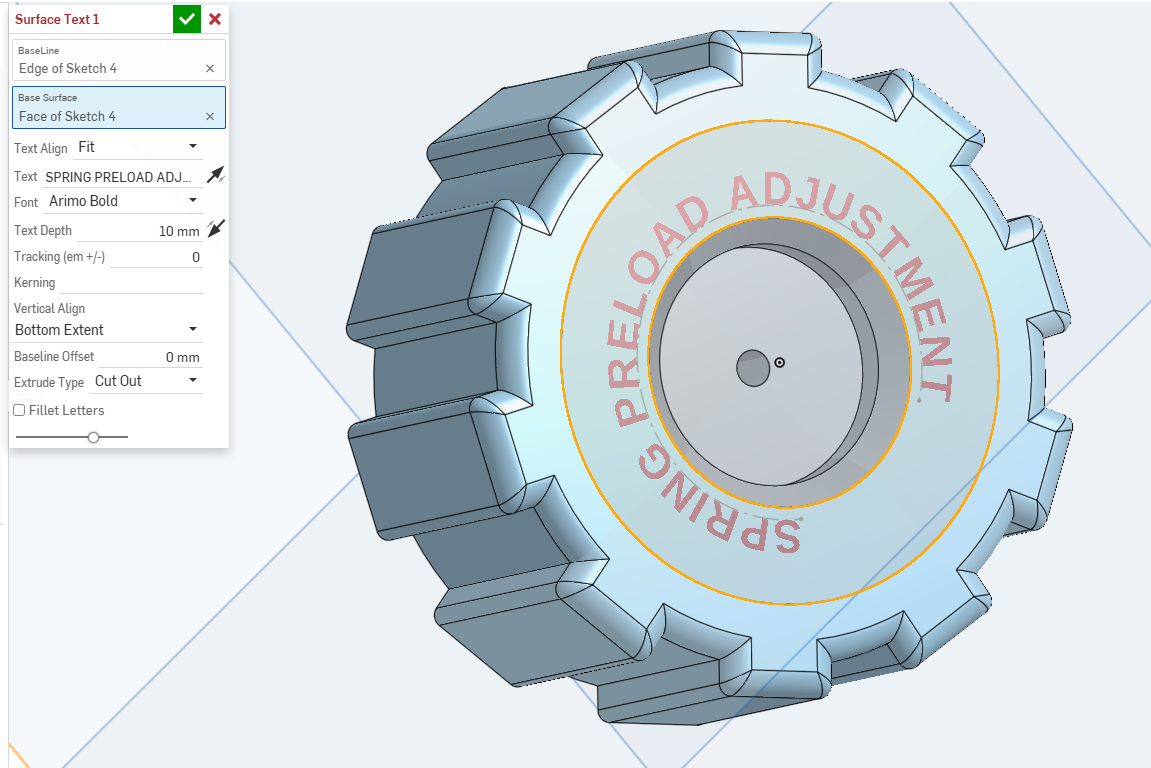

I can not get this text to remove (Cut Out option) on the face of this extrude. I've gone back and changed each extrude to "new" rather than add and it still won't generate.

I created a second Part Studio with a basic extrude and it seems to remove text on that one.

I can't figure out why it won't generate.


https://cad.onshape.com/documents/fa8451137ffe39abe713f916/w/6d7951e2af03f5c142a0f7e4/e/bce8877b1c2128581be13bbd?renderMode=0&uiState=6aa4608a8988715ffdf931ae

Answers

  • ian_whaples807
    ian_whaples807 Member Posts: 10 ✭

    it looks like the custom feature has been updates since this was posed and you have found success. I would suggest though making all the letters be a composite part so it's easy to work with and less cluttered

  • daniel_maclise
    daniel_maclise Member Posts: 2 ✭

    it works in your second Part Studio, there may be an issue with the original model’s geometry or feature order.
