New Custom Feature: EZ Wire
Comments
-

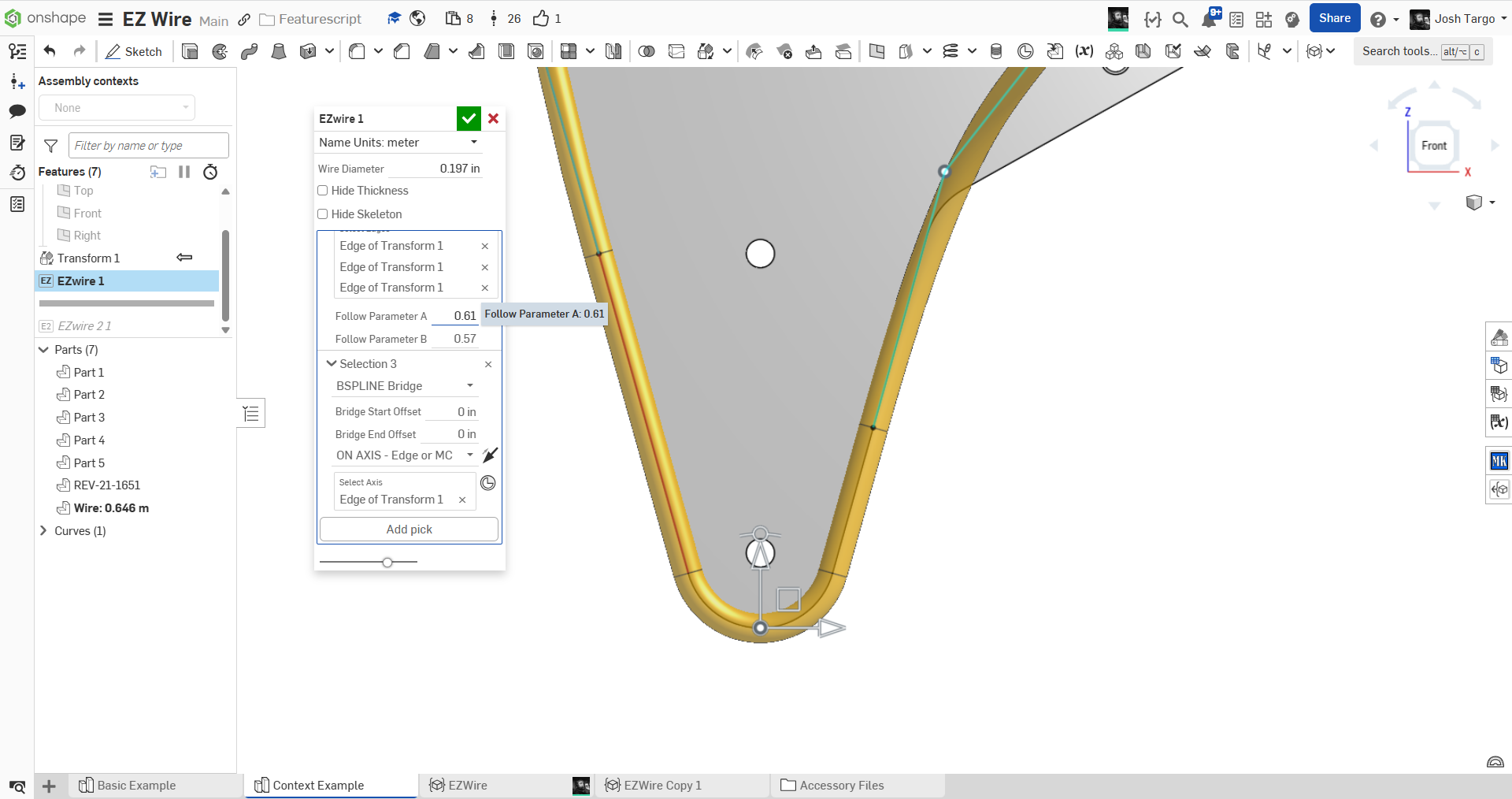

@martin_kopplow finally added start and end parameters for FOLLOW Curve mode.
2 -
@joshtargo I made some more wiring today. With the new features usability has increased a lot. Extending segment start or end is very helpful, when the wires run straight a longer distance, and the fan out to a connector board or such.
Also, the sketch option is nice. I am experimenting with projected/intersected sketches so I can also make wire harnesses with all wires following a common path at first and then fork off in repeating similar shapes to multiple connectors in a row. The idea is not to manipulate all the wires one by one, but have a means to drive them all from one place.
I have probably not yet even tried all possible combinations of options.
0 -
I made a lot of options! so glad you find it useful.
maybe this will help you too
https://cad.onshape.com/documents/e261acc4e298da1586459c84/w/555c2c9c08a06d228fd7d7cb/e/b883449e8d535ebdedee3faf0 -
omg, you're you're so welcome. We wired our competition robot with it for the first time and it helped so much. Sorry if it's confusing!
0 -
It's a little confusing to start but after getting a straight piece of wire started it was easy to just play around with it and see what it can do. I think I only touched about 10% of its ability. Pretty amazing.
