How do I create this spout
jake_wilson27cd13be110a89bcd7906d42
Member Posts: 2 ✭

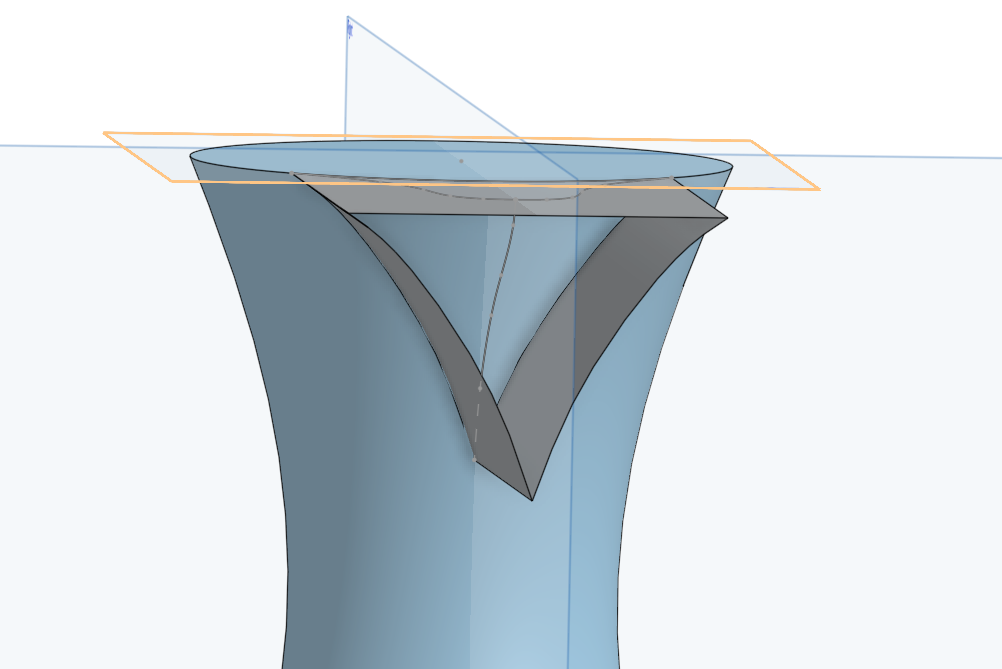

I've been playing around with this for a while and made some progress but nothing that will work properly so far. I have a revolvled sketch which creates the bottle shape and onto that I am trying to add a pouring spout. I have sketched out the top shape and the side profile. I was trying to wrap the shape onto the surface but onshape does not allow that on an uneven shape. The other option I explored is using the extrude function but I cannot find a way to trim thios down and only leave the sketch on the 3D surface, and even if I did manage that my only hope was that I could use bridging curves to tie everything together in a natural shape.Any suggestions would be greatly appreciated.
Jake
Answers
If you share a public document, it would be easier to help. Also if you can hand sketch the result you're trying to achieve.
Try this for an example to get started.
https://cad.onshape.com/documents/e7deb849eaf79cbe21dd8d77/w/d33b9654867f8aafb9a49fde/e/5fd8819e7e4498928d89456e
I just got done watching this master class.
https://www.youtube.com/watch?v=s-Ou2zgb5Yw

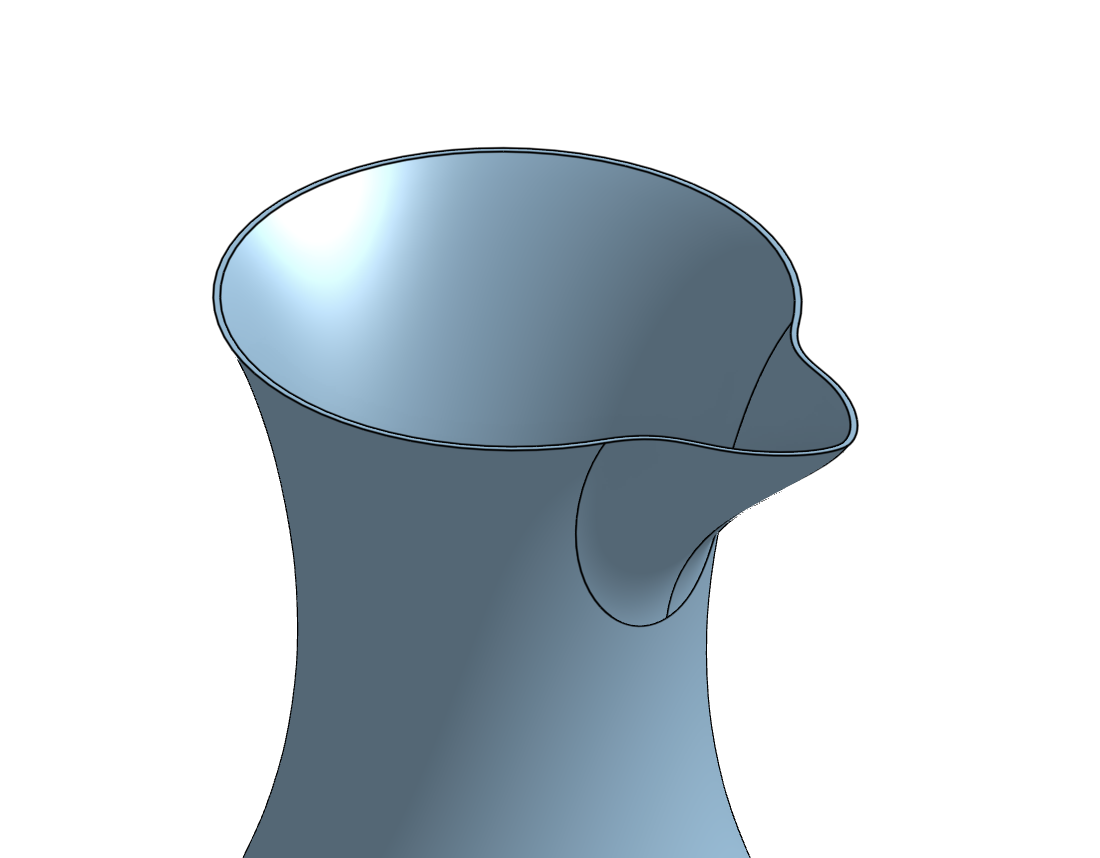

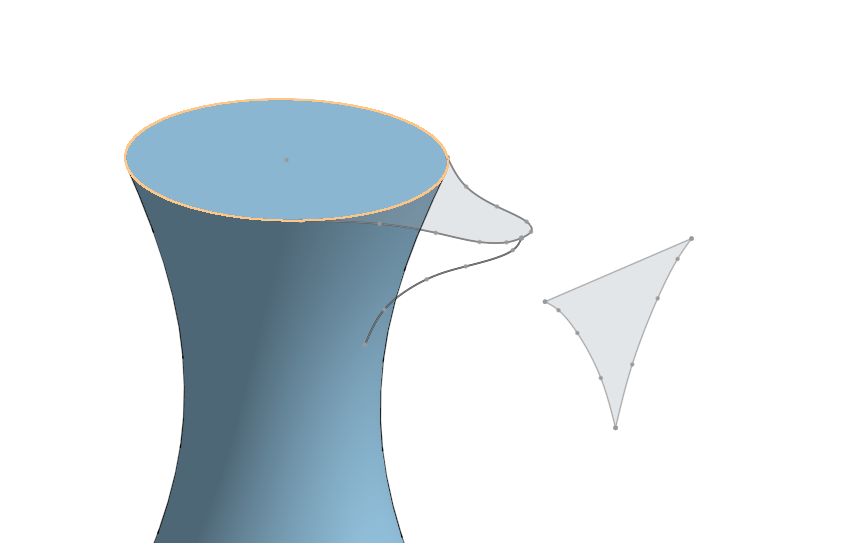

And it helped me try your problem:
https://cad.onshape.com/documents/076d69875c8edc25a45e250e/w/c985bfe742714f114a7de1bd/e/9811f8d35e9eb05fd58c1fea
