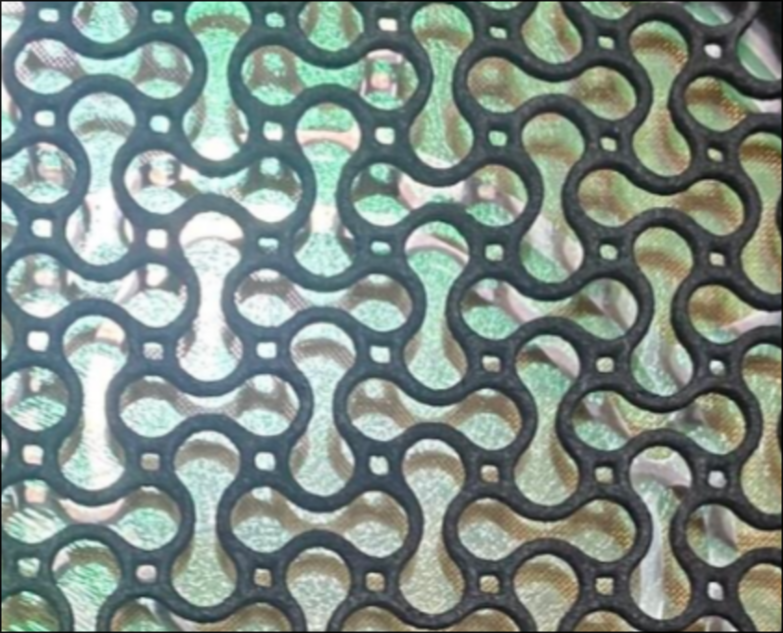

How can I pattern this particular shape as such:

john_speddingjohn_spedding Member Posts: 2 ✭
in Community Support

I know how to draw the "figure eight" shape, but I don't really know how to get this to pattern in such a way as seen above. Any help would be much appreciated.

Tagged:

Answers

  • EvanReeseEvanReese Member, Mentor Posts: 2,468 ✭✭✭✭✭

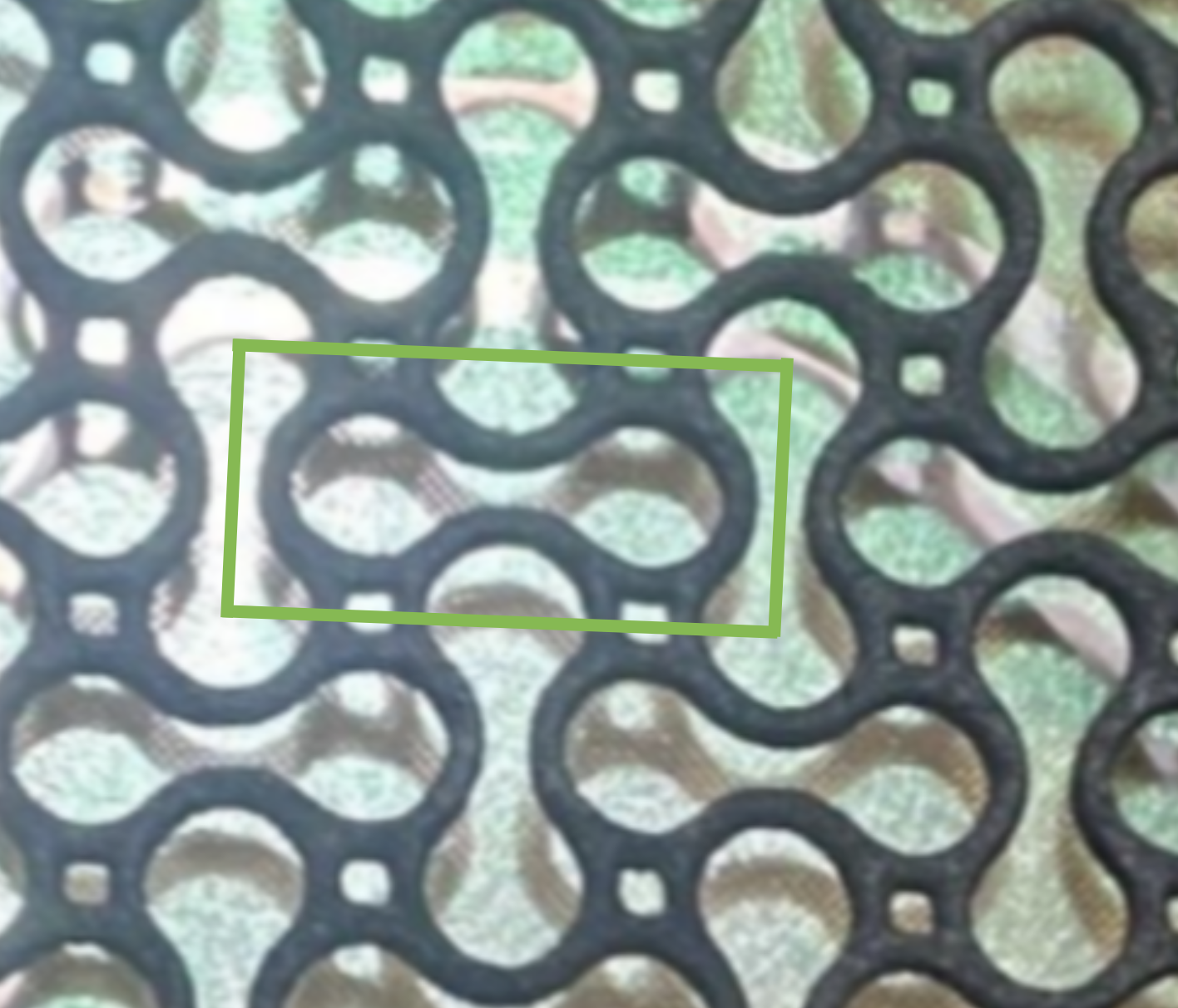

    Model just the smallest segment (like the green rectangle below) of it you can and use Linear Pattern.

    Screenshot 2025-07-30 at 4.27.36 PM.png
    Evan Reese
    The Onsherpa | Reach peak Onshape productivity
    www.theonsherpa.com
