How do I add spiral fluting

riley_harriss

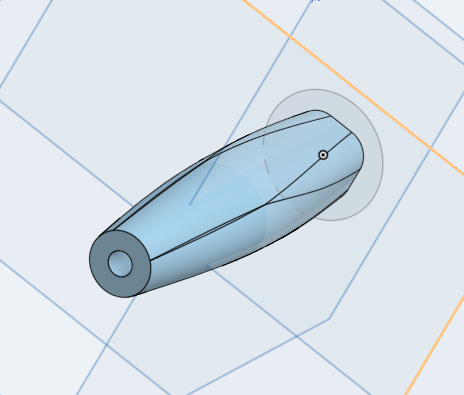

Making a printable fencing sword handle and want to have spiral fluting. I have a good shape, but cant figure out how to do the fluting on the complex shape.

https://cad.onshape.com/documents/b8a9f8494650bd9bc21d4c07/w/163360045836a39277fad2df/e/59e310a964f6a29f2eb9dc07?renderMode=0&uiState=68d5962c2208dcc3be6027f8

https://us.v-cdn.net/5022071/uploads/XDF2O45VLZ60/image.png

Matt_Shields

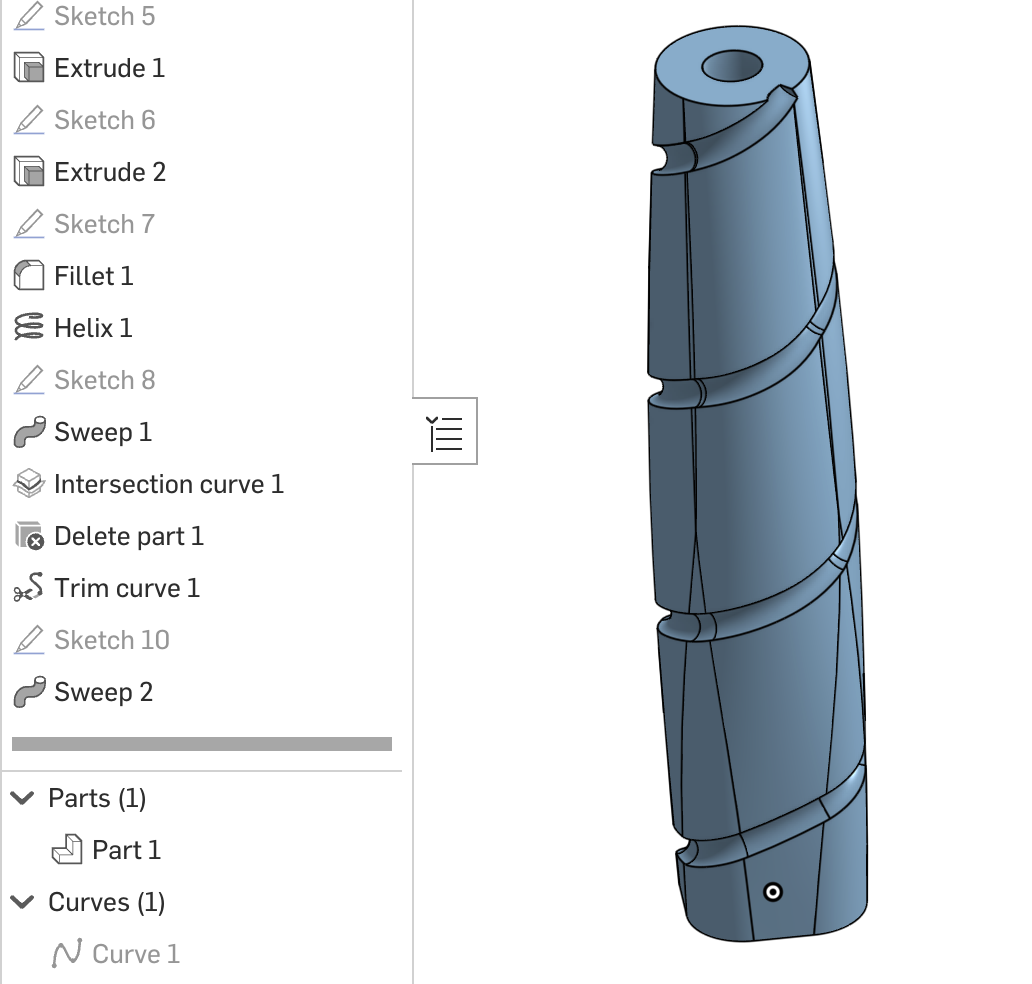

Here's one solution.

https://cad.onshape.com/documents/121a17a8c4d8d48f36341867/w/2a863093fd12c99de7827019/e/d7581c7507bad0f1b22a6646

riley_harriss

riley_harriss

Thank you so much! This is exactly what I was looking for! Is it possible to use a circular pattern if I want to have offset spirals (every 90 degrees). Thank you!

Matt_Shields

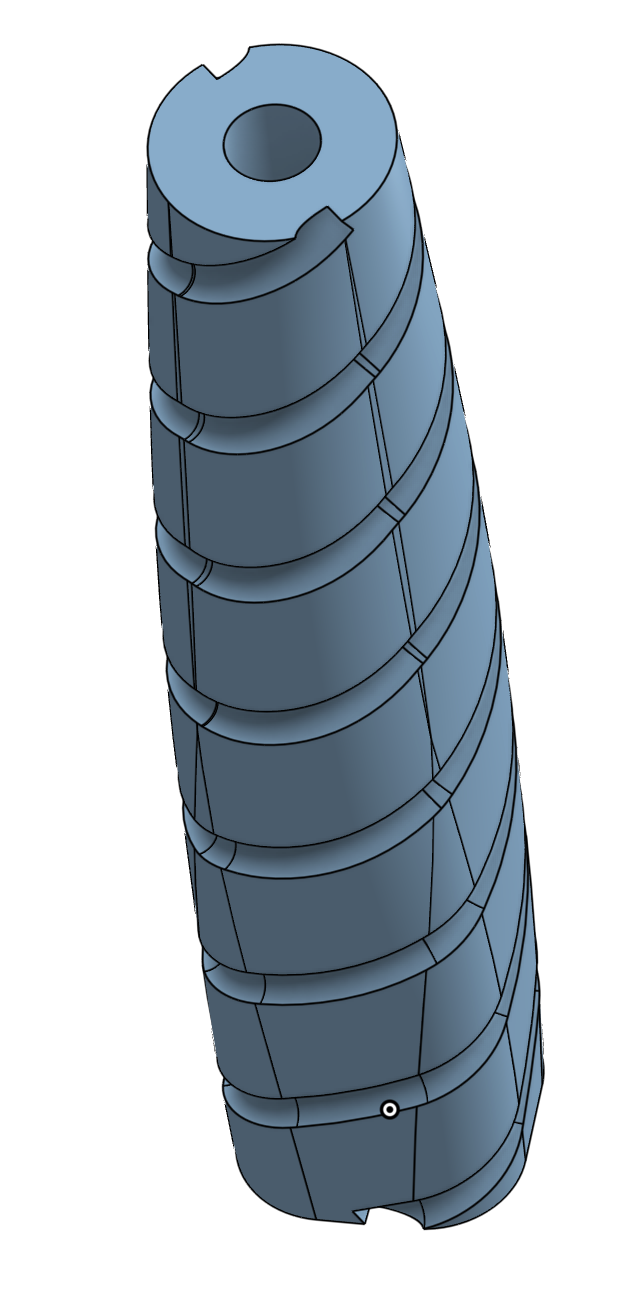

Because the shape is only symmetrical about one plane, I think you'd have to make one more, starting 90 degrees off. Then pattern the two sweeps 180 degrees. Here is the first one patterned 180 degrees.

nate_jake

Interesting

EvanReese

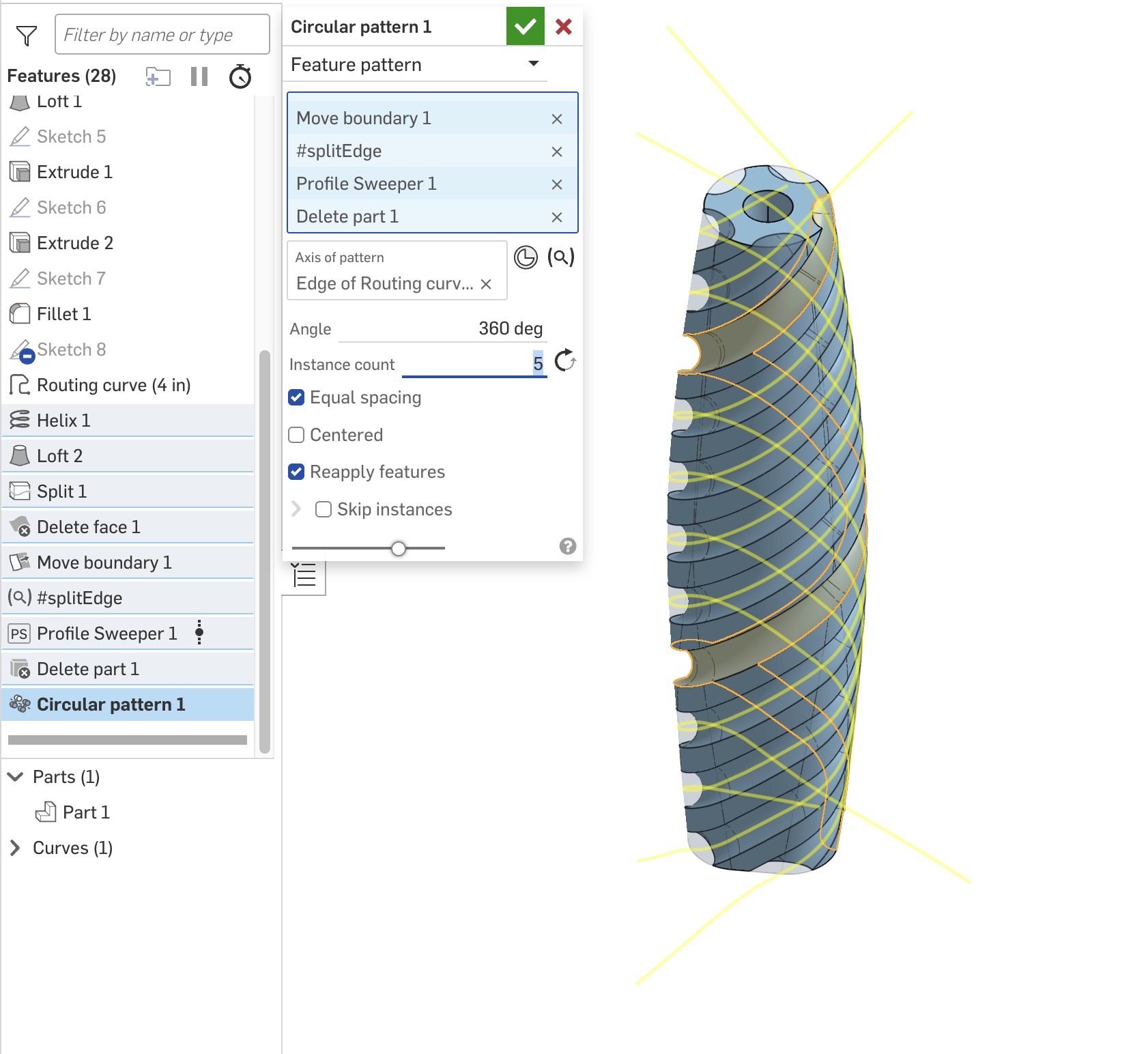

Actually you can get it going to an arbitrary number of spirals using some clever set up and a Circular Pattern set to "Reapply features". Side note, I'd probably use a single loft for modeling the base shape instead of extrudes and fillets. More control and cleaner result.

https://cad.onshape.com/documents/db55866d9dd35891f07f090d/w/733551659fd2ec6b194e5174/e/3ea3e7f4fef57bfe2e644415
