can i visualize a projekt with a gantt diagram?

derk_bossel
derk_bossel Member Posts: 2 ✭
in Community Support

Answers

  • martin_kopplow
    martin_kopplow Member Posts: 1,616 PRO

    Interesting question. I was asked that years ago, when still on my old CAD. The intention was to align the CAD project with shop flor management. I found a way to extract the assembly tree as an XML file, and that could then be turned into all sorts of diagrams. Depending on what you're up to: Would the BOM be a good starting point for this?

  • jnewth
    jnewth Member, OS Professional Posts: 155 PRO

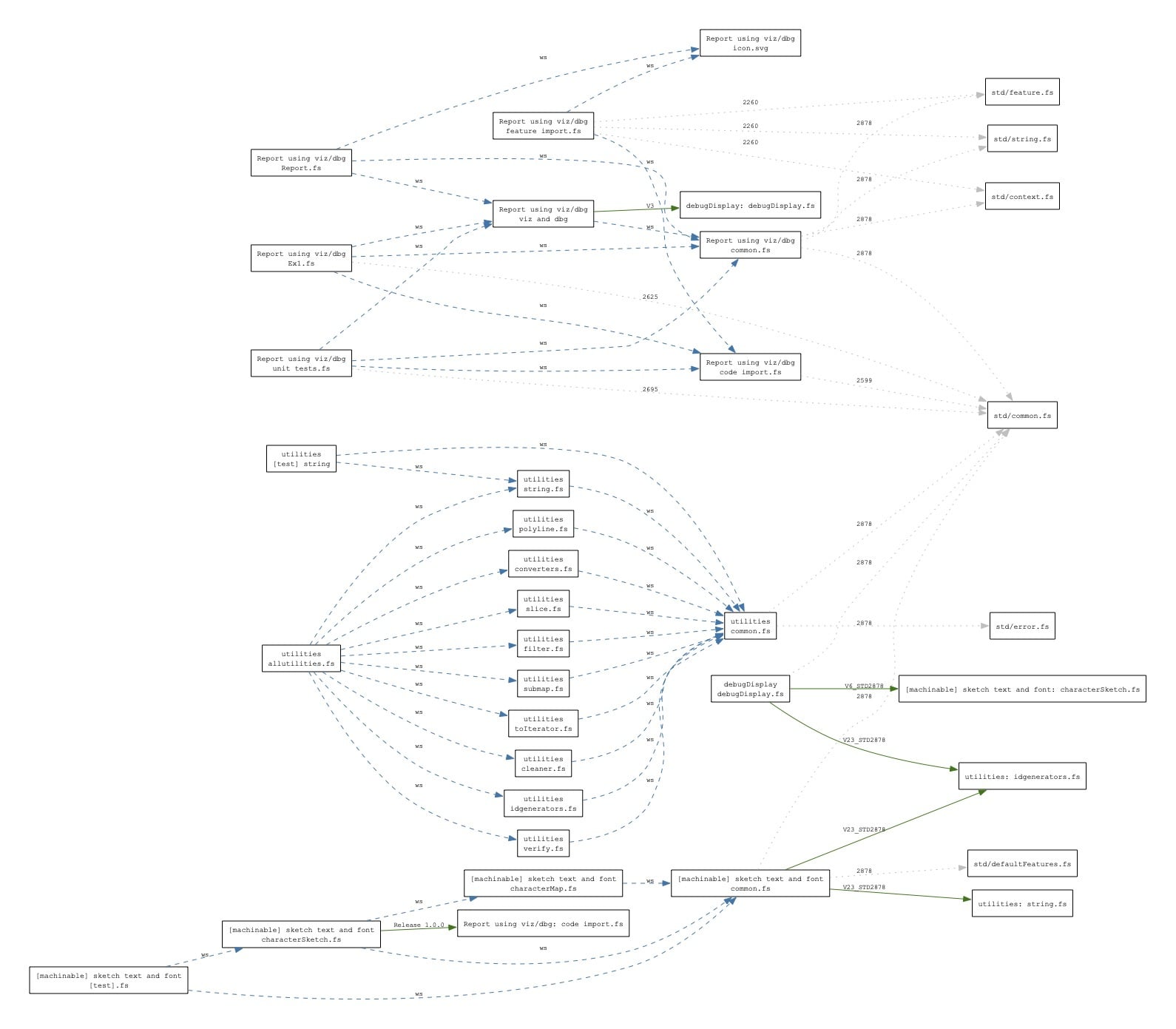

    Do you mean a diagram of the connectivity of a document or between documents? I've done something similar recently for finding circular dependencies and duplicated versions. Something like this could be modified to work for part studios as well:

  • jeremiah_peschka840
    jeremiah_peschka840 Member Posts: 28 PRO
    https://forum.onshape.com/discussion/comment/129975#Comment_129975

    Is that done via some kind of JSON/XML export and dot or did you use something else to generate the diagram?

  • jnewth
    jnewth Member, OS Professional Posts: 155 PRO

    doc traversal via api and graphviz (dot) for render.

  • S1mon
    S1mon Member Posts: 4,551 PRO

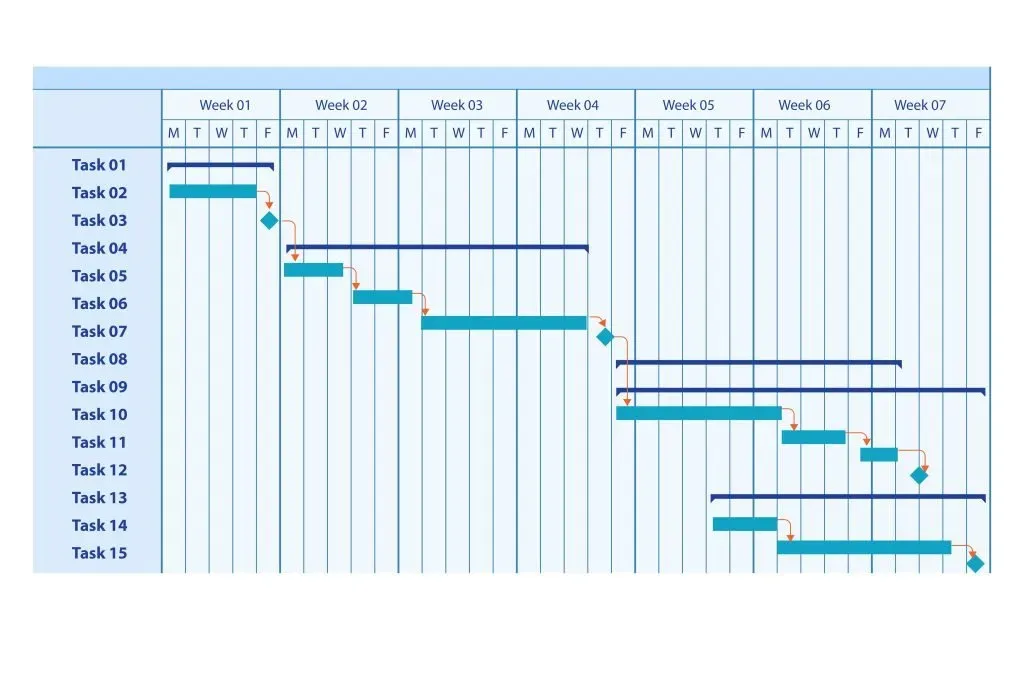

    I assume the original post was about a Gantt chart for tracking tasks, subtasks and milestones in a project.


    The quick answer is no, Onshape doesn't do that.

    Onshape does have basic task tracking:
    https://www.onshape.com/en/blog/tasks-key-benefits-use-cases

    That said, @jnewth , I'd love to see a document reference visualizer like that.

    Simon Gatrall | Product Development, Engineering, Design, Onshape | Ex- IDEO, PCH, Unagi, Carbon | LinkedIn
