HELP: Tangent constraint removes sketch face.

zayne_admiraal
zayne_admiraal ✭
in Community Support

Hello, weird interaction I'm fighting: Connecting a line to spine using a tangent constraint removes the face of the sketch. Unsure if it's a bug or something I'm unintentionally doing is causing it to happen.

Any suggestions?

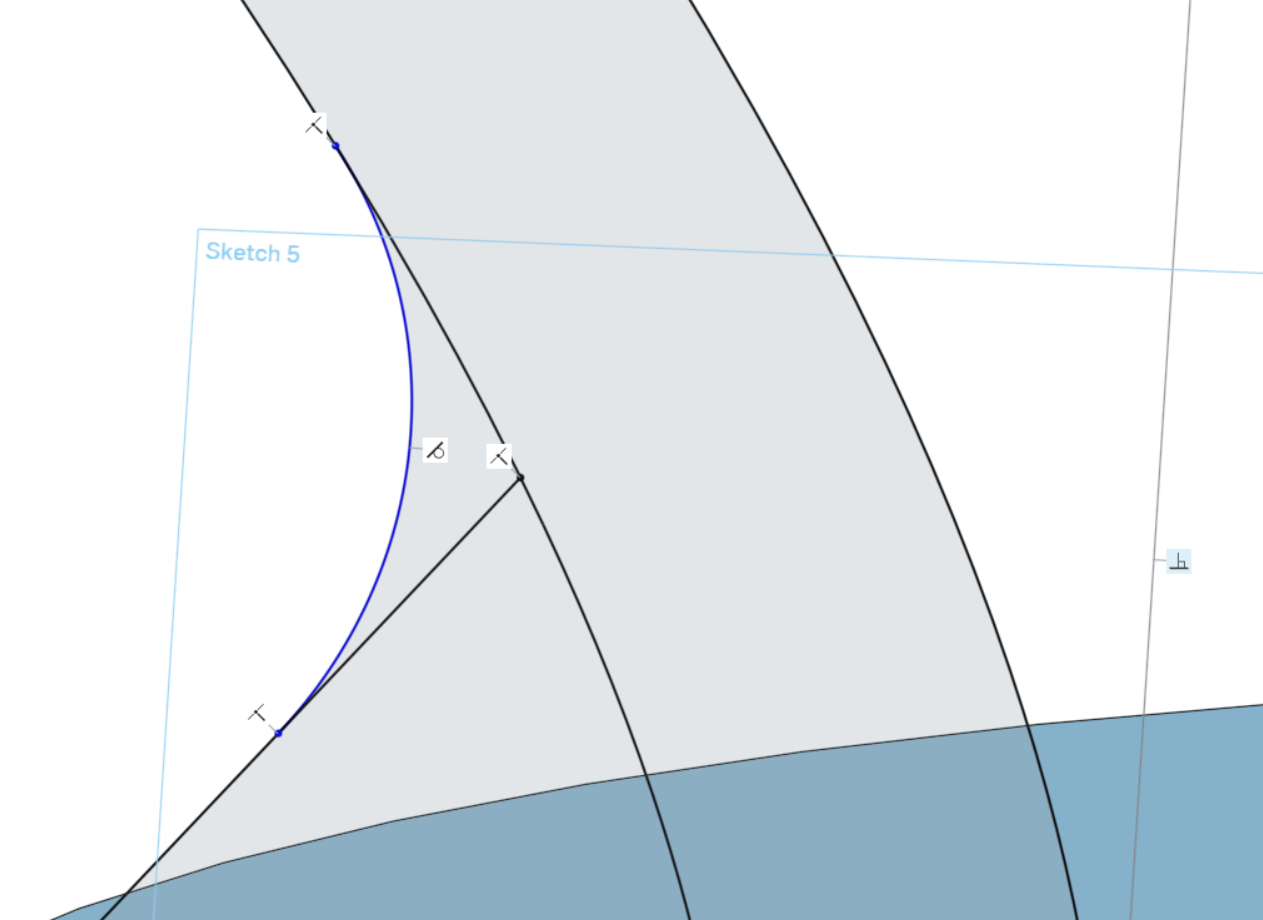

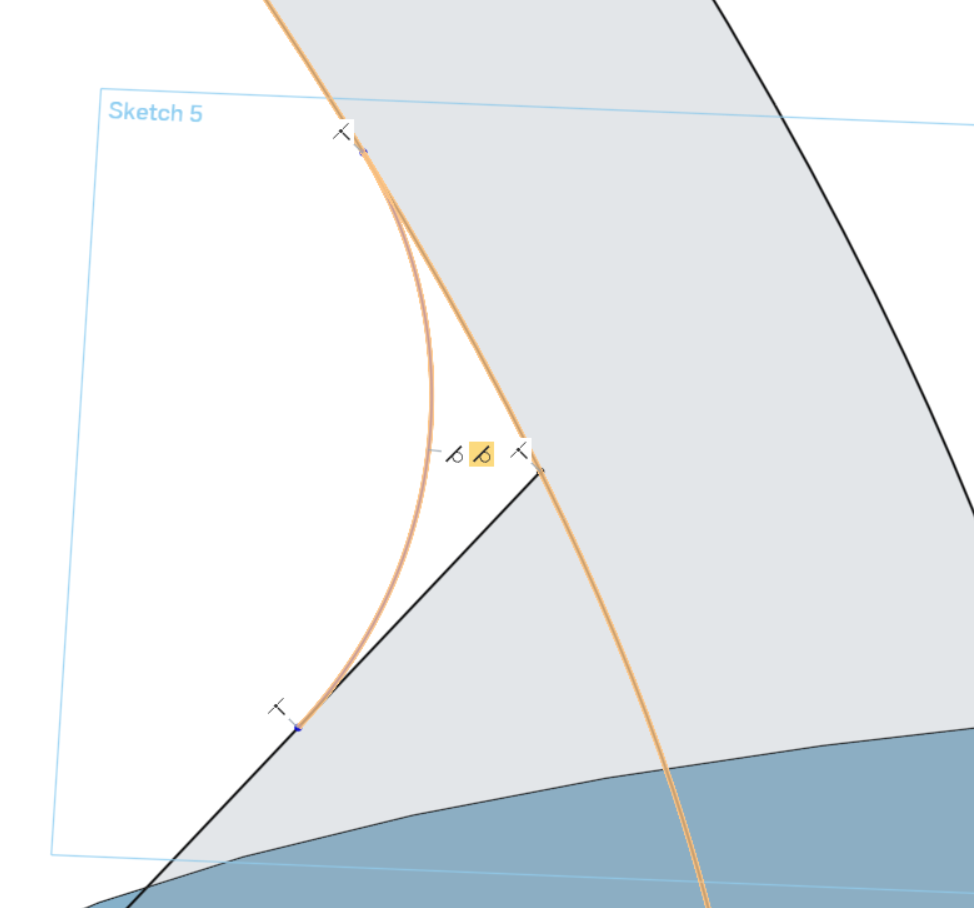

Capture.PNG Capture1.PNG
Tagged:

Answers

  • martin_kopplow
    martin_kopplow PRO

    I've seen a similar thing once. I think it had to do with self intersection at some level. It disapperaed when trimming off the internal curves of the enclosed 'face'.
