Chamfers acting inconsistently on a repeated feature?

evan_tatusko763
evan_tatusko763 Member Posts: 2 ✭
in Community Support

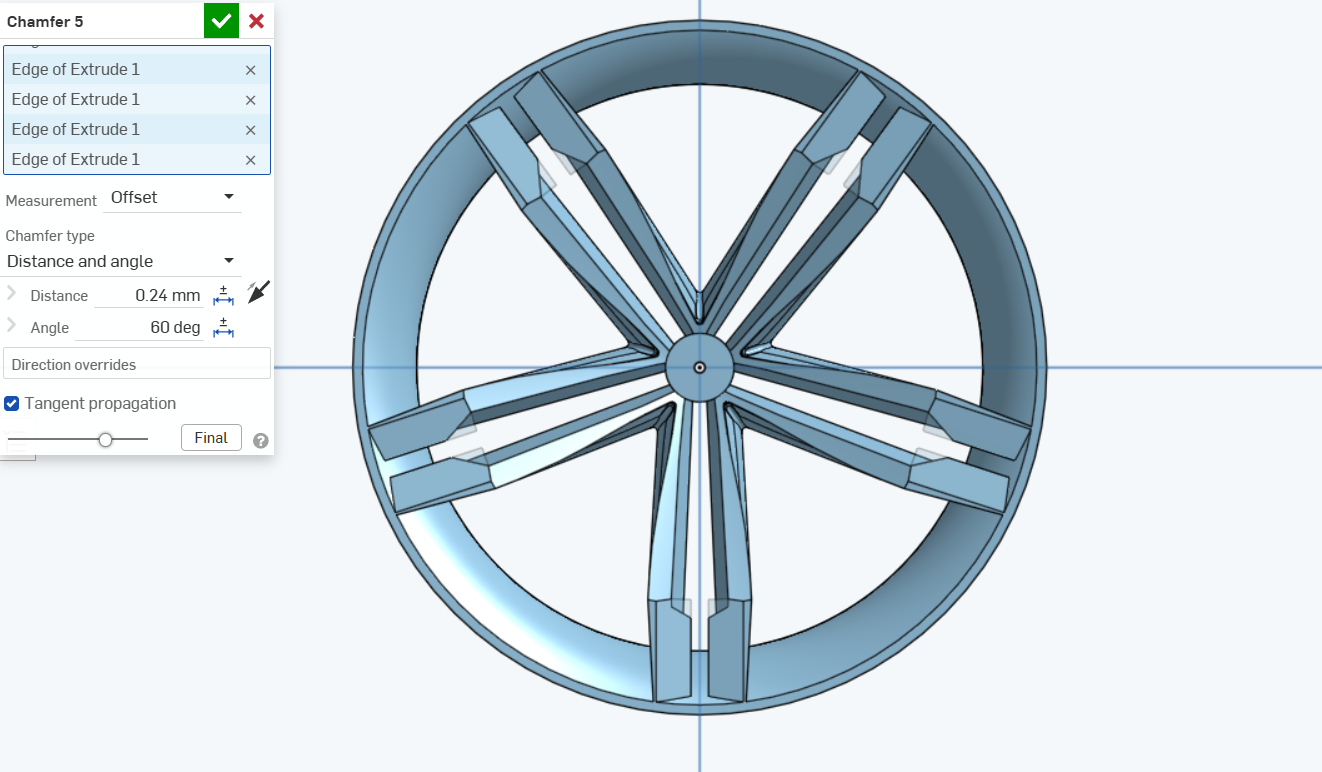

Screenshot 2026-10-28 163438.png

Hello, I tried to add chamfers to this repeated feature but for some reason they look different on the bottom pair of spokes. I checked to see if I missed something on these spokes or added something the others don't have, but I swear they're all identical. Why is this happening? Is this a bug, or is there something crucial I'm missing?

Tagged:

Answers

  • S1mon
    S1mon Member Posts: 4,602 PRO

    You need to either pattern a 1/5 (or even 1/10) of the wheel, or use the "Direction overrides" to help Onshape get the Distance/Angle reference correctly for all of them.

    Simon Gatrall | Product Development, Engineering, Design, Onshape | Ex- IDEO, PCH, Unagi, Carbon | LinkedIn
