How do i design something like this?
gabor_lenart
Member Posts: 7 ✭
Hey guys i need some help how to make that chamber/fillet thing on the part?
Tagged:
0
Best Answer
Answers
-
First I want to thank you for the reply on the post. I really like the second one. How do I achieve something like that? Do you mind share something like a tutorial or do you have any link where I can check?
0 -

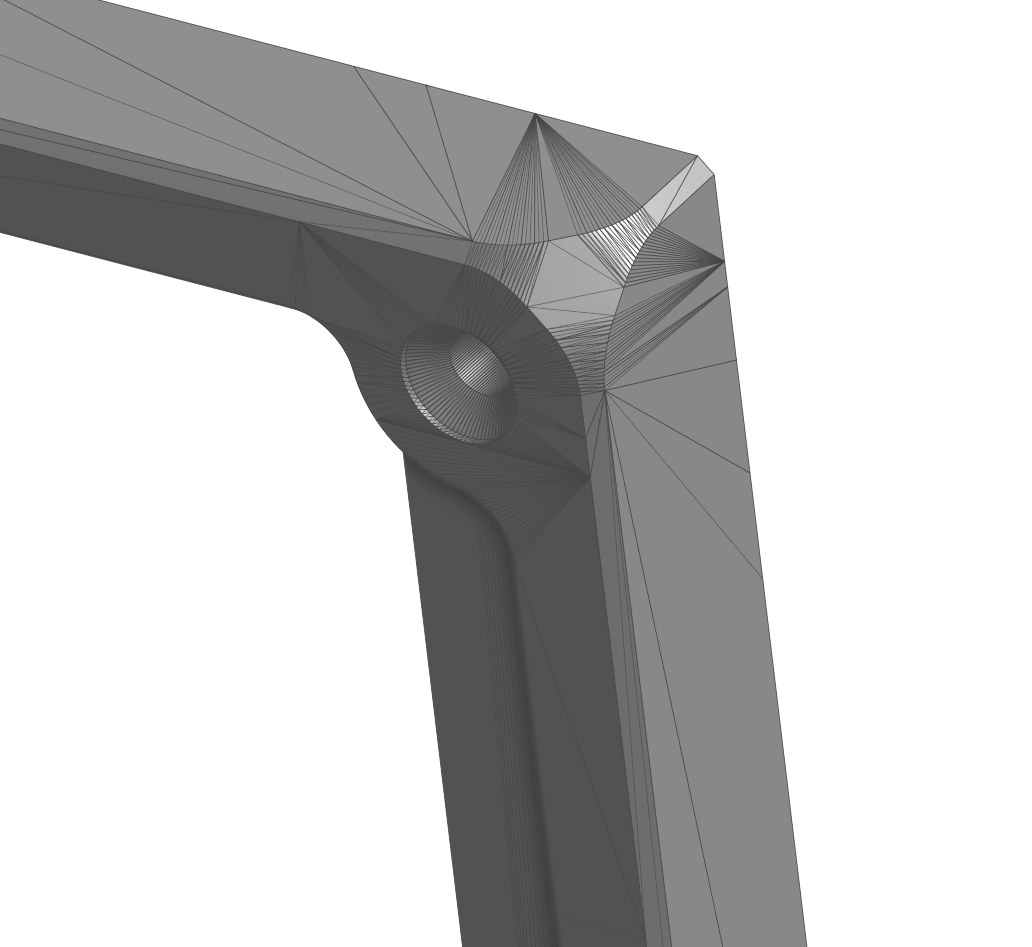

Can you show me how you did that in the second image? I would appreciate it!
0 -

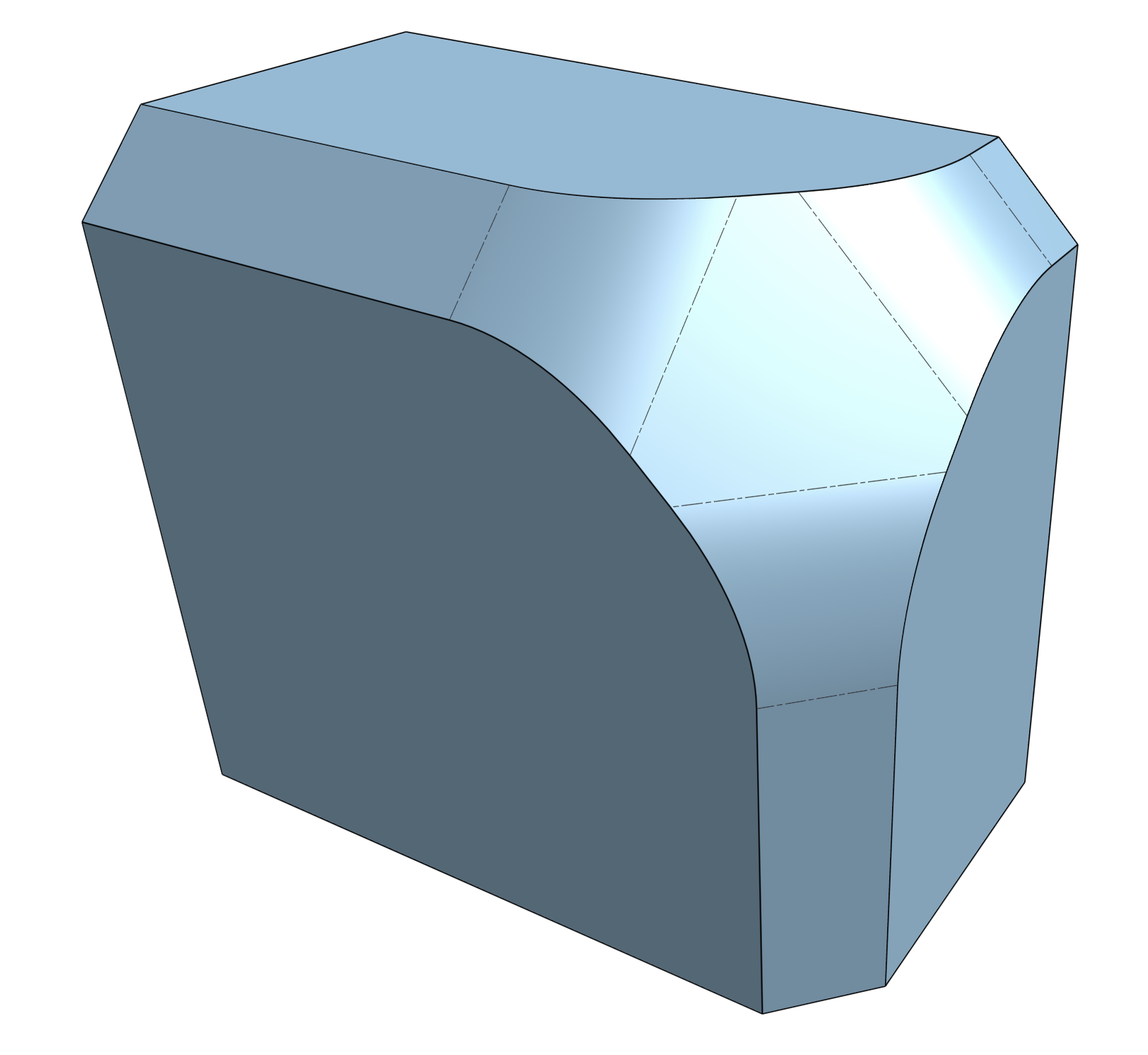

All three curves in the model are actually but intersections of the three cube sides with the same sphere.
Once you know that, you could make it much easier, though. ;0)

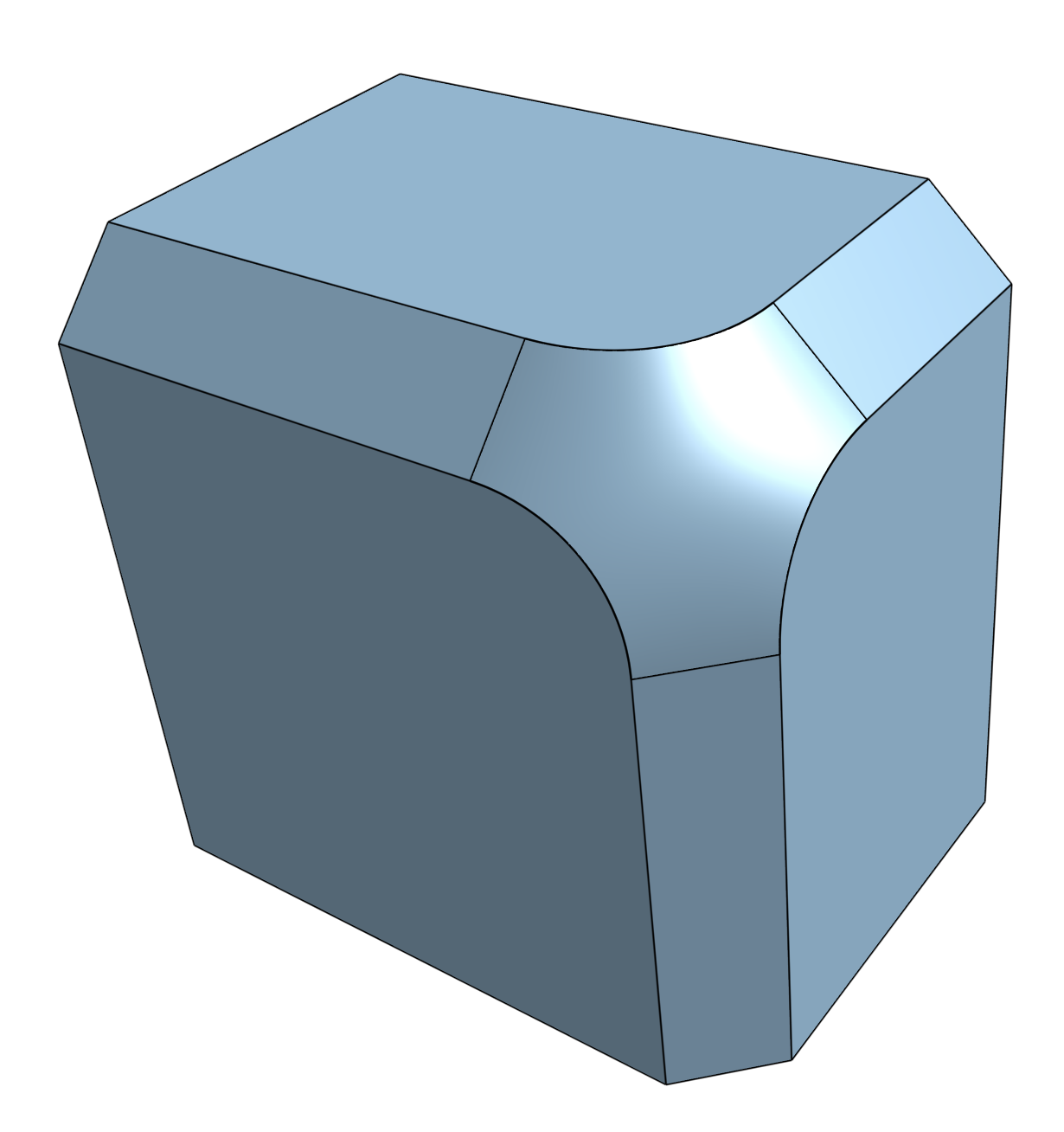

Just sketch 3 identical radius tangent arcs, one on each side, then split the sides with them. Delete unwanted faces, use the fill tool.
1
