How do I print an unshaded circle?
jeff_sea876
Member Posts: 7 ✭
New to Onshape, searched and couldn't find an answer.

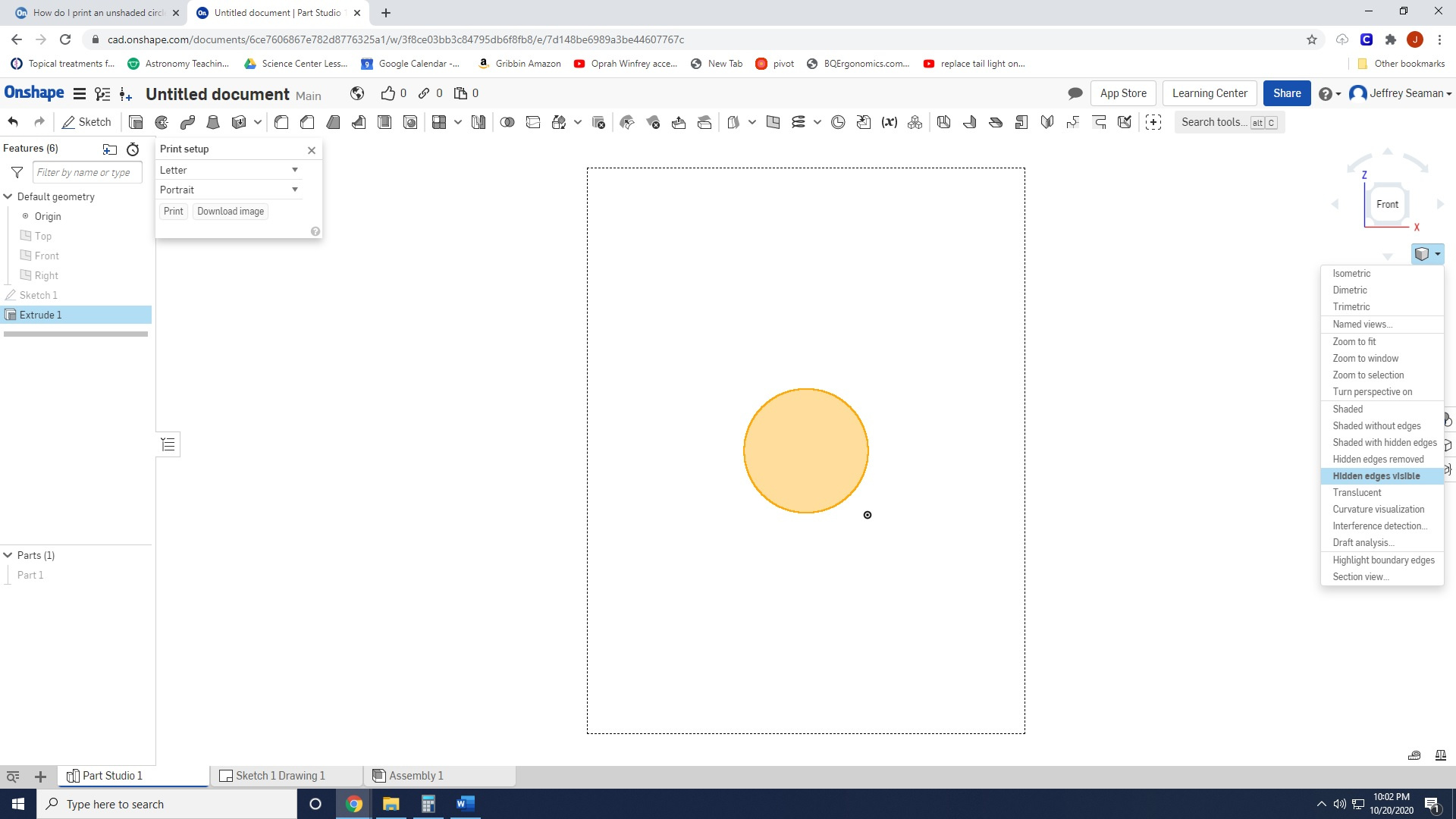

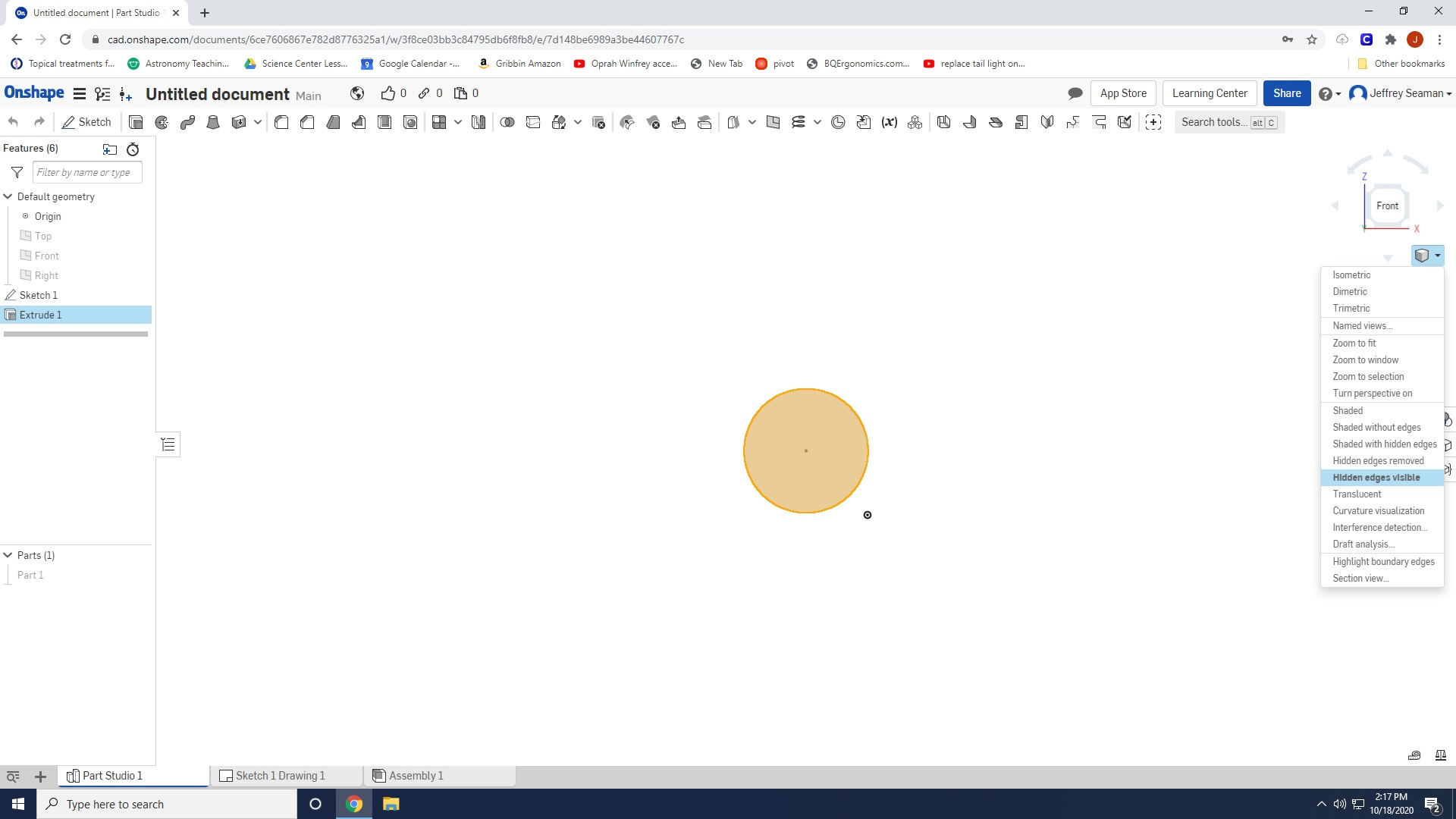

I need to print a circle with no shading. I tried going to the "Camera and Render Options", and selecting "Hidden, edges visible".
I am astounded something so seemingly simple can be so difficult.
0
Answers
And that didn't work for you? Seems simple enough to me.
I extruded and it still prints shaded.

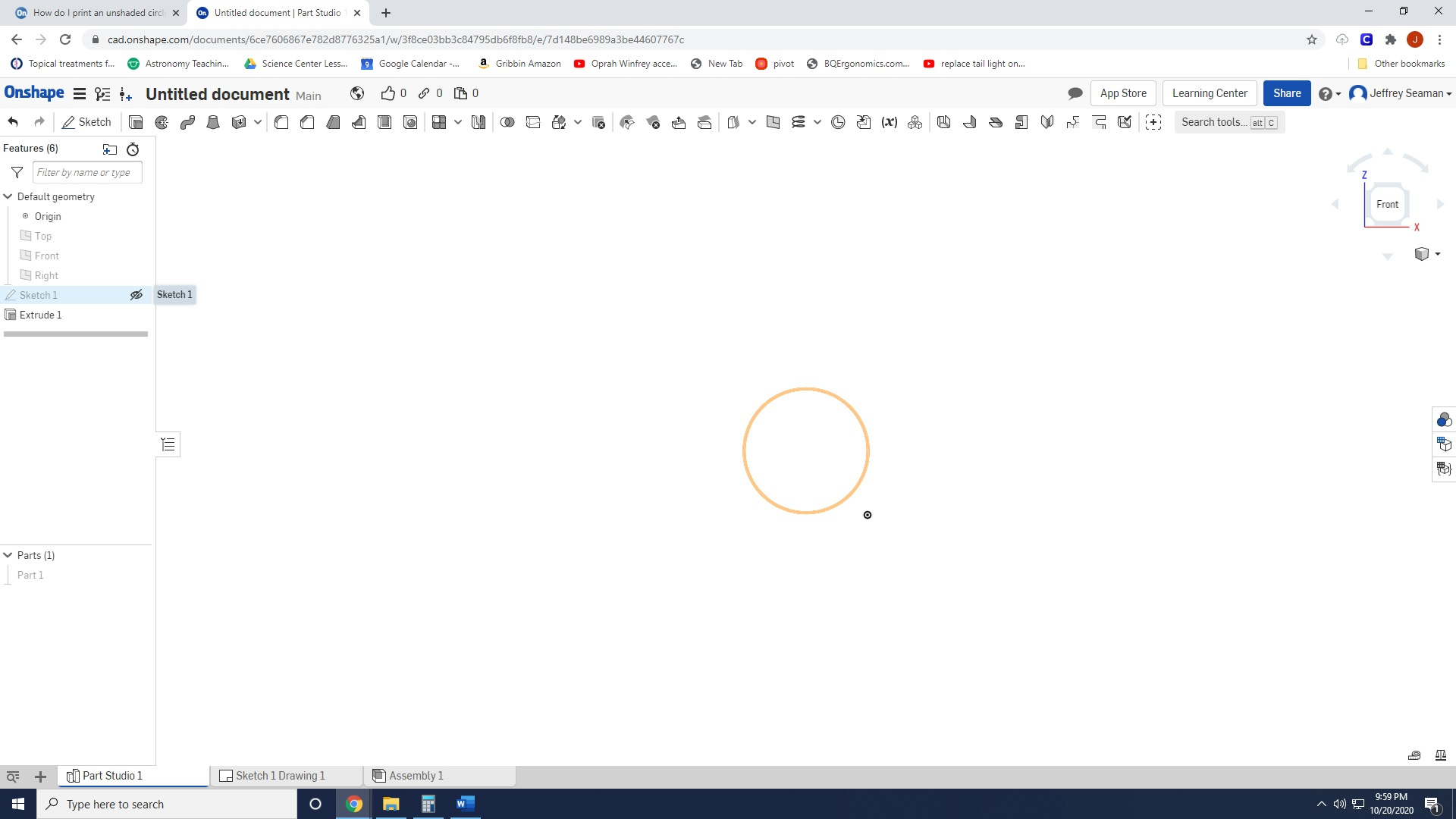

Hide the sketch

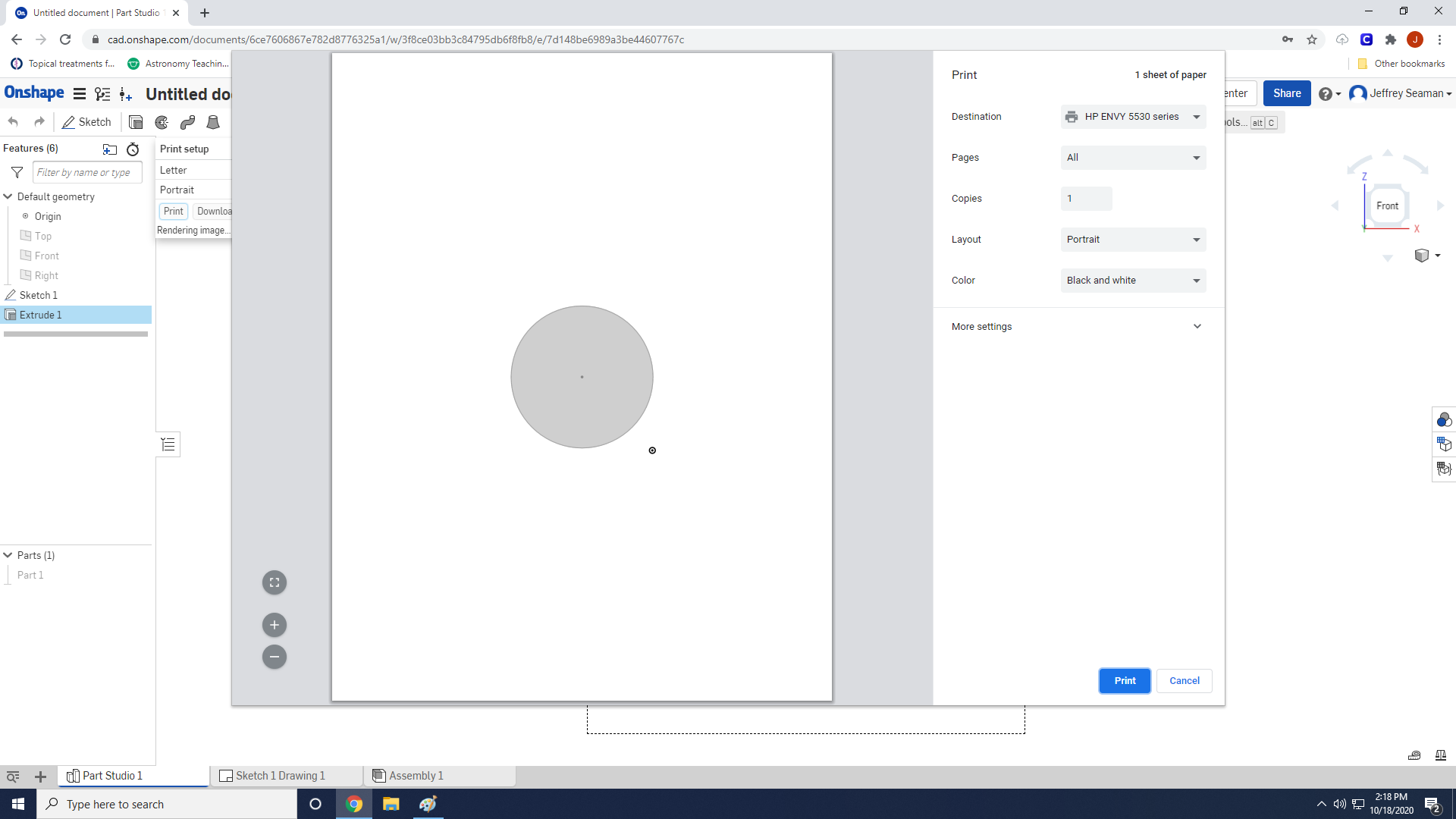

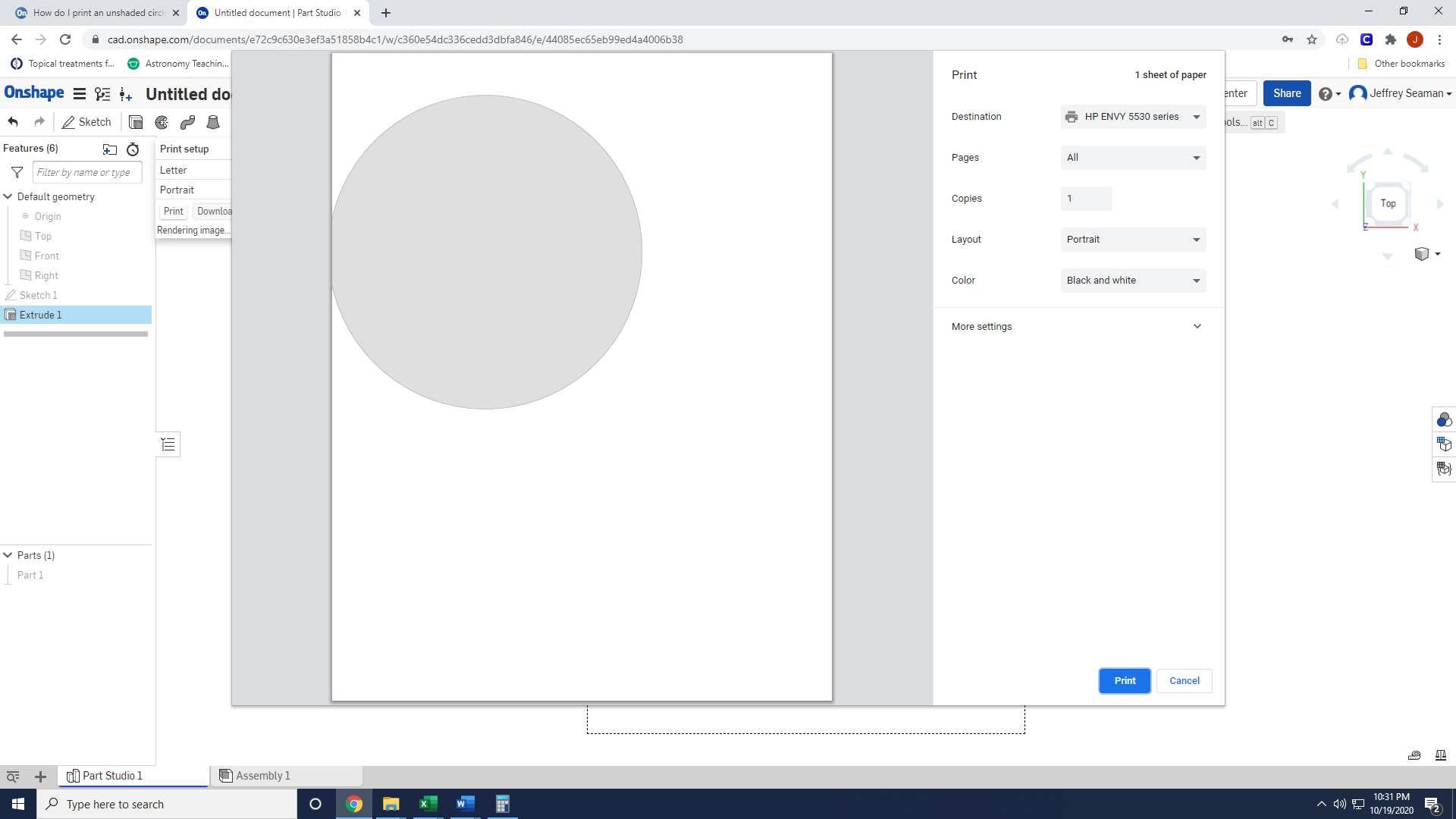

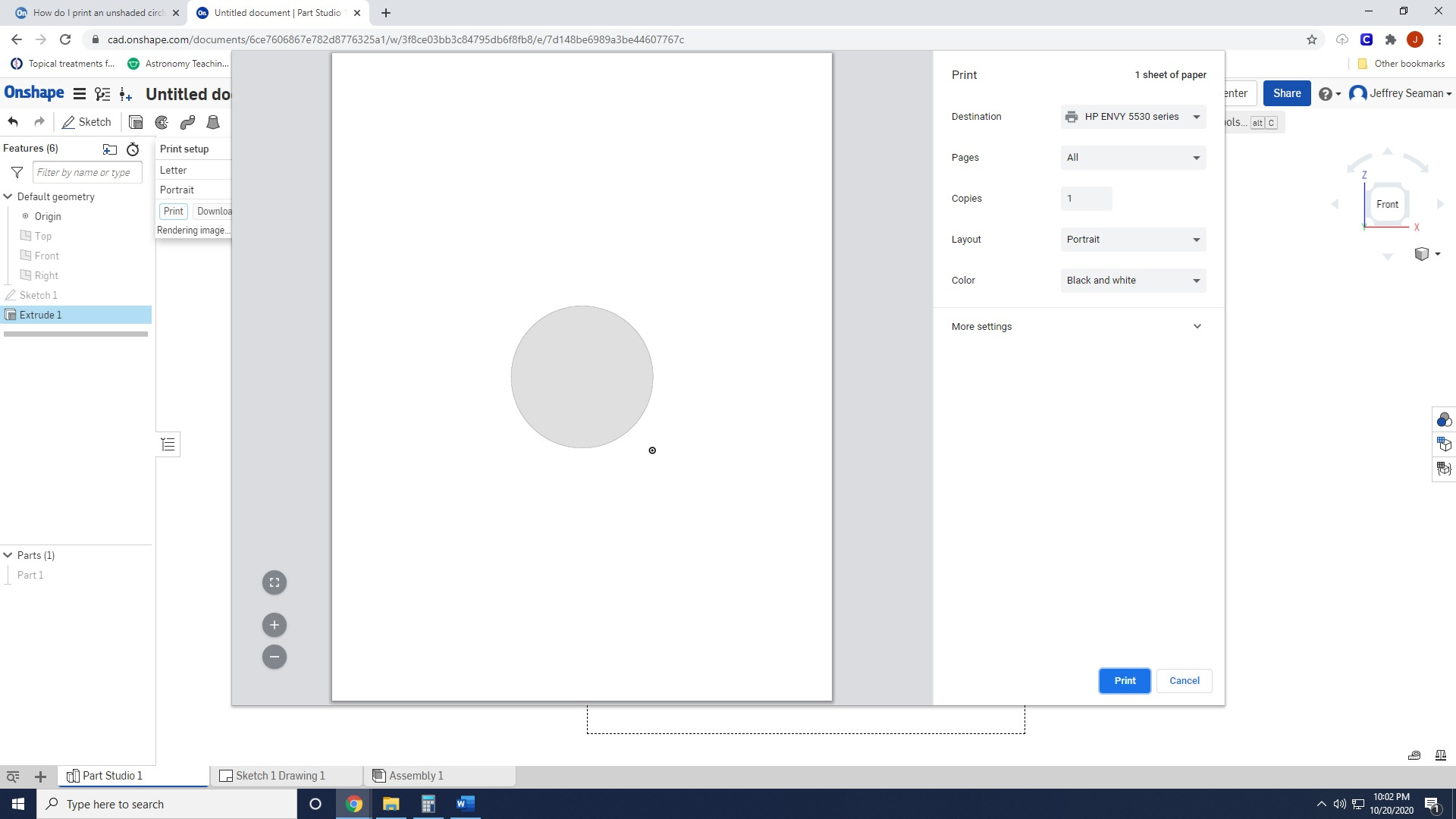

Okay, I made sure hidden edges visible was selected, the I hid the sketch, but it still prints with shading. Please see attached screenshot.
Print goes from the graphics area, so it's just like taking a screenshot but with higher resolution and an alpha channel. What you probably want is to make a drawing and export that as DXF/PDF or right click the sketch and export as DXF.
@alnis is my personal account. @alnis_ptc is my official PTC account.
go to view cube, choose 'Hidden edges removed'
I did those steps but it still prints it shaded.
@NeilCooke
I thought the selection could be problem but his Screen Shot 4 shows no selection and still shaded.
I have been unable to reproduce the shaded print when sketch is hidden. Not sure what is going on...
@jeff_sea876 this should be easy! you may want to submit to support; they are very helpful
