DUAL MOTION MATES?

larry_hawes

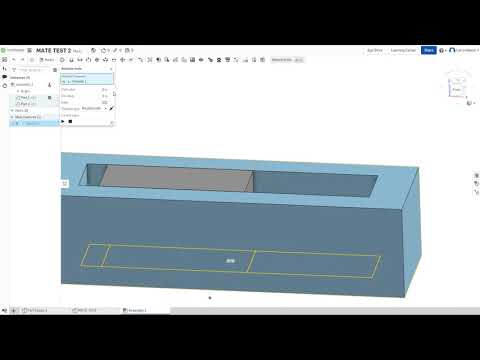

Not sure how to phrase the question and hopefully the (very poor) video shows what I would like to do. Any help much appreciated.

http://www.youtube.com/watch?v=qsZ5_9QsBiY

https://cad.onshape.com/documents/ccbbde7f559b214892aee86a/w/2a3e2a4c0dd639c6cf1748c1/e/9983d507783523da6b7b1dad

wayne_sauder

I would use a parallel and set the limits, not sure if that is the best but it should give you what you are looking for.
https://cad.onshape.com/documents/cdbbb388ddc3ff6245ac1a97/w/128c0e700bff5756900c72f4/e/a6c505608075e3042c122e97

wayne_sauder

I would use a parallel and set the limits, not sure if that is the best but it should give you what you are looking for.
https://cad.onshape.com/documents/cdbbb388ddc3ff6245ac1a97/w/128c0e700bff5756900c72f4/e/a6c505608075e3042c122e97

larry_hawes

Awesome Wayne, had no idea how a parallel mate worked. Will explore limits and it should do the trick.

larry_hawes

Just cannot understand Onshape's mate functions. I would like to 'animate' the parallel mate but it looks as tough only 1 degree of freedom can be spec'd at once. Is there a solution to what I would like to accomplish?

https://cad.onshape.com/documents/e0e030b9824fd4b44b51ea2c/w/d2df7df6cf0569174ef2dbbc/e/014848a5950f8c738728d3d9

http://www.youtube.com/watch?v=3o8EQLcaKEk

wayne_sauder

I do not have time to work through this at the moment, but just thinking through it I think to get what you are looking for is going to require building some dummy parts possibly using the pin slot, and maybe a tangent mate to accomplish your animation. You can get a close representation of your motion with a sketch and the tangent mate, but I have not found a good way to animate a tangent mate. If someone knows of a way I would love to hear about it.

larry_hawes

Thanks Wayne, Seems like a pretty simple task as it seems I've seen much more complex animations but maybe not so much?

larry_hawes

With all due respect to everyone's time and effort is it even possible to do what I am requesting?

THANK YOU

wayne_sauder

Does this help at all. I just mocked it up real quick and it not clean at all but I thought it might get you started.
The document is here.
https://cad.onshape.com/documents/cdbbb388ddc3ff6245ac1a97/w/128c0e700bff5756900c72f4/e/a6c505608075e3042c122e97

larry_hawes

Thanks for all the help Wayne but am looking for a very simple vertical, then horizontal movement. I think it might be easier than I think and will make more time to perhaps integrate your idea in to the motion I'm looking for.

Thank you again.

Larry
