Sheet Metal Hole Distortion Bend Relief

Kody_Habeck

Is there a way to add a relief cut to sheet metal parts for where holes are located near a bend to prevent them from distorting during the bending process?  Another application for this is to add a relief on a bend to allow the bending process to be done without a brake press.

Example of what I am looking to do:


Example of bend reliefs to allow for hand bending of a part:

bryan_lagrange

See if this works for you:

https://cad.onshape.com/documents/084ef19b8595c2eb52d61d41/w/b64e00a834ad6664b9dd5b39/e/61898cb64b7946fbec6743d7

nick_papageorge_dayjob

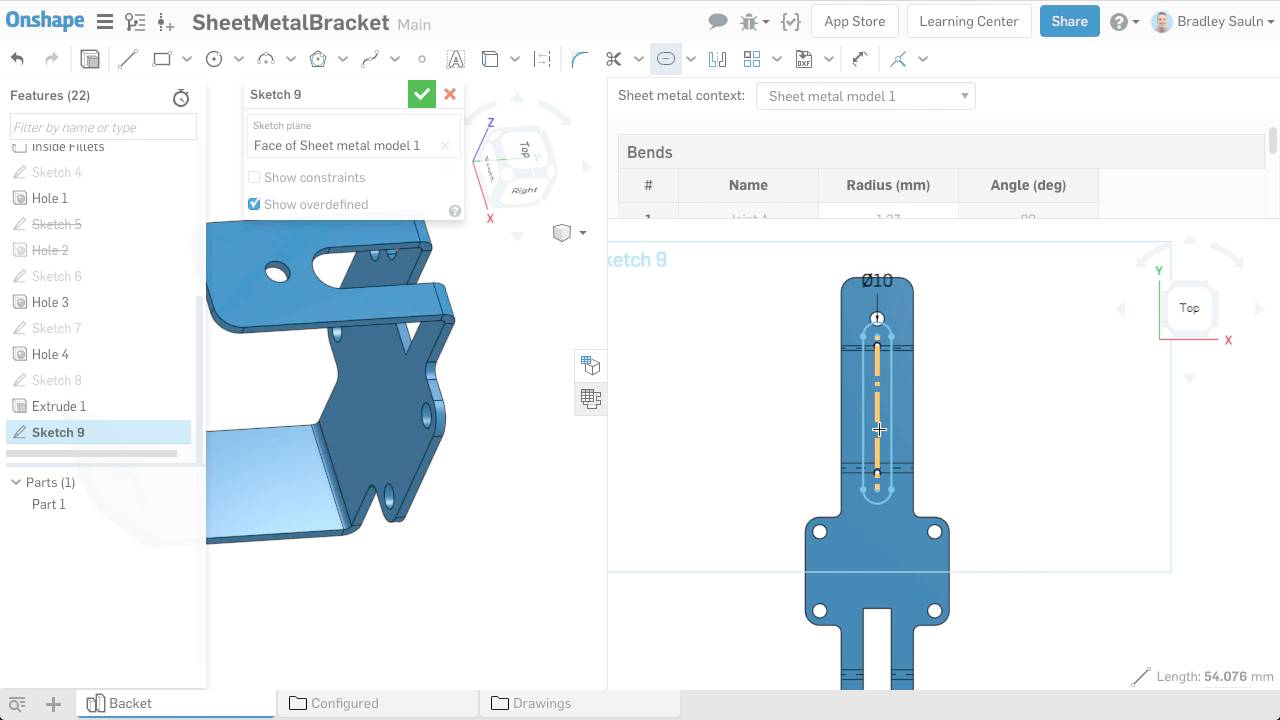

@bryan_lagrange Wow! I did not know it was possible to sketch on the flat pattern. Is that new? Or should I have completed the entire sheetmetal training module 6 months ago instead of stopping about 1/4 of the way through? ha ha.

bryan_lagrange

Not sure when but it has been here a while. It also comes in handy if you need geometry to etch, such as text, you could place the sketch on the flat pattern and create a .dxf with sketch shown. You can also display this in the drawings by showing the sketch there as well.

eric_pesty

nick_papageorge073 said:

@bryan_lagrange Wow! I did not know it was possible to sketch on the flat pattern. Is that new? Or should I have completed the entire sheetmetal training module 6 months ago instead of stopping about 1/4 of the way through? ha ha.

I've been using Onhsape for 2 years now and sketching on the flat was always there for me so not very new...
I've definitely found that completing the training modules seems like a good idea in general!

nick_papageorge_dayjob

eric_pesty said:

nick_papageorge073 said:

@bryan_lagrange Wow! I did not know it was possible to sketch on the flat pattern. Is that new? Or should I have completed the entire sheetmetal training module 6 months ago instead of stopping about 1/4 of the way through? ha ha.

I've been using Onhsape for 2 years now and sketching on the flat was always there for me so not very new...
I've definitely found that completing the training modules seems like a good idea in general!

I hear ya! I did most of them for 3 weeks straight when I bought OS, but haven't revisited in a year. I need to go back and do more now.
