INTRODUCTION TO PART STUDIOS - ADVANCED FEATURES / EXCERCISE:FUNNEL

adriano_borgiaadriano_borgia Member Posts: 5

Hello,

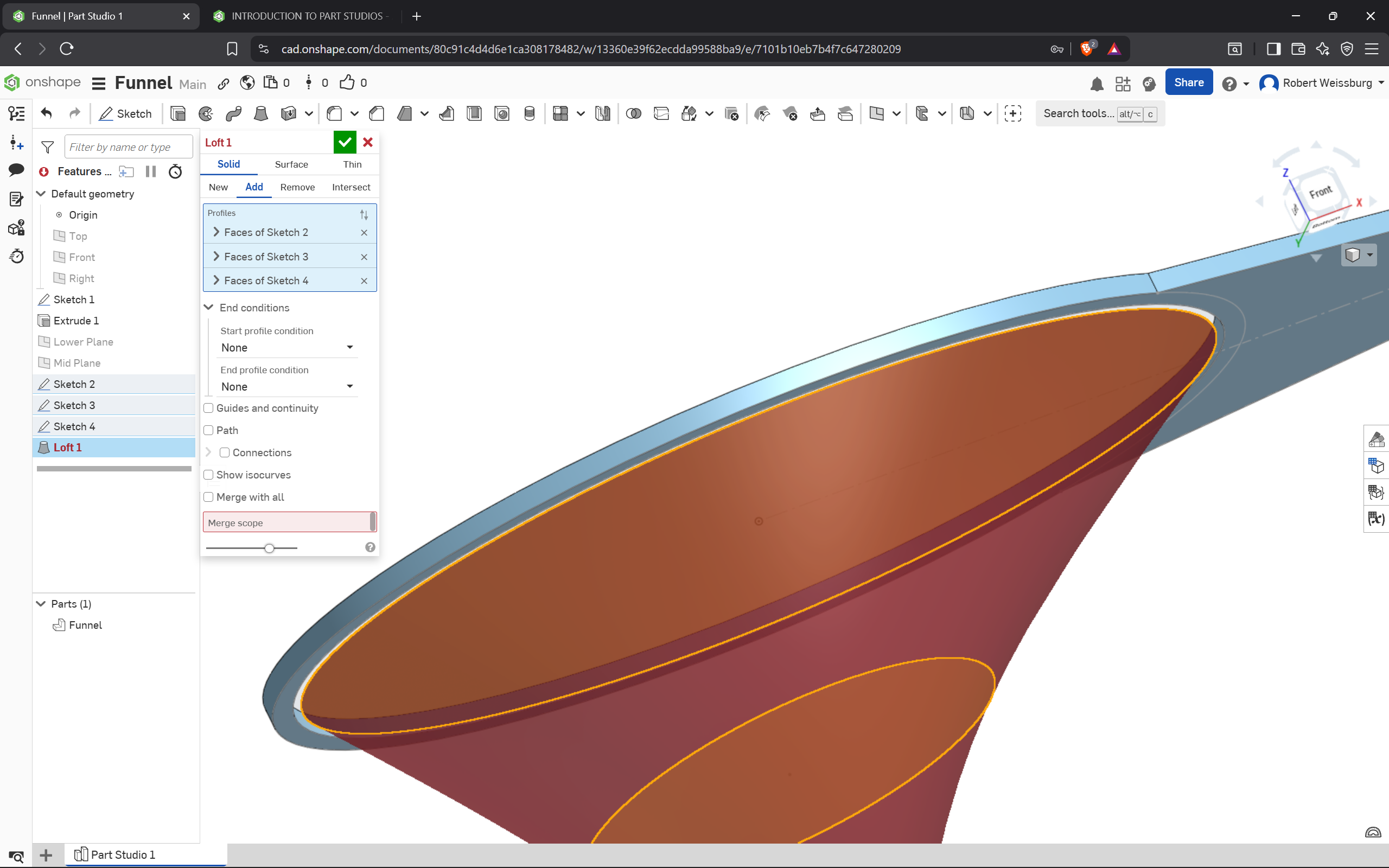

I am currently working through the Introduction to part studios advanced features exercise funnel on the OnShape tutorials. This is driving me crazy, i am on part 9 trying to loft the profiles but it will not work no matter what I try. It keeps highlighting the inner line red and not allowing the loft to happen. Any help would be appreciated!

Here is the Link to the document

https://cad.onshape.com/documents/c8f6d1461a3ed2645c796df3/w/c5149d4d45671162ad88071f/e/8be0f12b69649e827da2c0cf?renderMode=0&uiState=66f2da5ae0769c1647f6f5f6

Thank you for your time.

Comments

  • Matt_ShieldsMatt_Shields Member Posts: 363 EDU

    Your document isn't public, so it's hard to see the issue with the loft, but your sketches look good. Here it is working:

    https://cad.onshape.com/documents/7b265f9547ea96d0c8af0858/w/a086dde488156e48d7b16a86/e/0eecb85582340404ace05026

  • adriano_borgiaadriano_borgia Member Posts: 5

    I have adjusted the access, It should be public now. I looked through yours and it seems exactly the same. I have no idea why mine is always failing. I have tried deleting the whole part and starting from scratch, and i always get to the same failure.

  • Matt_ShieldsMatt_Shields Member Posts: 363 EDU

    It's really hard to grab the right profile from sketch 1 without also grabbing the inner loop. Either select the sketch from the Features list or check off "disable imprinting."

  • adriano_borgiaadriano_borgia Member Posts: 5

    Holy Cow!!!!! Yess!!!! Thank you so much!!! That worked perfectly! I just choose the sketch from the feature list and it instantly was happy!! I didn't realize the inner loop error was referring to grabbing the wrong curve.

    Thank you again Matt!
