Shelling a part with multiple features.

colin_king506
colin_king506 Member Posts: 67 ✭✭
in Community Support

I am try to shell the inside of this part without all the extraneous remnants. Any suggestions.

https://cad.onshape.com/documents/bc8497324d4bbc20d036cc2c/w/a92e26e553b7a900556e45dc/e/910fe6b8f10bb9e48eb0e9f9

Answers

  • glen_dewsbury
    glen_dewsbury Member Posts: 1,363 PRO

    What are the bits referred to as extraneous?

  • colin_king506
    colin_king506 Member Posts: 67 ✭✭

    Looks like the url did not post to show you what I was talking about, but I posted an additional comment with a picture of the intended appearance. Here it is again:


    Here is the original:


    https://cad.onshape.com/documents/bc8497324d4bbc20d036cc2c/w/a92e26e553b7a900556e45dc/e/910fe6b8f10bb9e48eb0e9f9

    I Posted the url, but I get the following message: "Site's 'cad.onshape.com' robots.txt did not allow access to the url."

  • colin_king506
    colin_king506 Member Posts: 67 ✭✭

    This is what I was going for:


    Sorry for the blurry image.

    This is an exercise that was intended to be completed with Solidworks, but I wanted to do it in Onshape.

  • colin_king506
    colin_king506 Member Posts: 67 ✭✭

    I figured out my error… I think. I am not sure in this case what the error in the shell command is referencing, I have done some digging and it has led to some confusing stuff.

    The drawing specifies a outer edge radius between the slope surface and the top of the body; no issues there. As indicated, when I place the 0.275 radius where the Red Line is and then do a shell then I receive the following error reply, "Shell 1 did not regenerate properly. Could not shell part with selections."

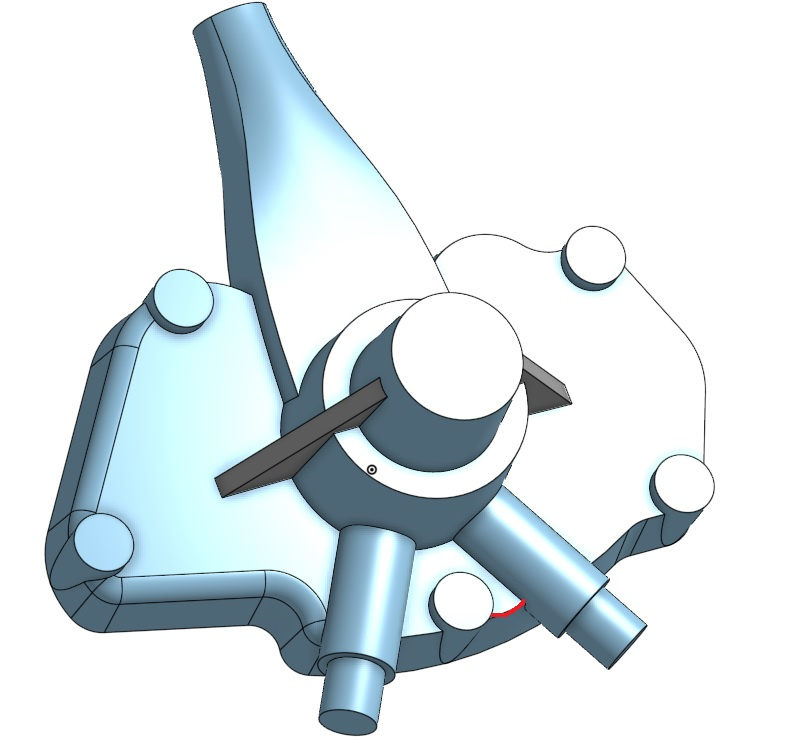

    Here is the shot of the part and the location I am referring to:

    error place.jpg

    THERE MAY BE OTHER SIMILAR INSTANCES OF THIS ERROR, BUT I HAVE BACKED UP TO HERE.

    https://cad.onshape.com/documents/5c75395ce1e1c14fc21af233/w/db59b3d5a8ce9ffb89c22a76/e/be2da276fb8bb88b2bba848b

  • MDesign
    MDesign Member Posts: 1,458 PRO

    You probably want to do most all of your radius work before shell.

  • colin_king506
    colin_king506 Member Posts: 67 ✭✭

    That is the issue. I have applied the requisite radii and I went back applied a radius, did a shell… rinse and repeat until an error showed up.

  • MDesign
    MDesign Member Posts: 1,458 PRO

    Works ok for me. but I'm not sure what's supposed to be filleted and at what size. Depending on the combination it does throw error.
