Onshape sheet metal construction, extend a sheet edge
juri_andruschenko
Member Posts: 2 ✭
Hi,
I've been struggling with a sheet metal design for hours.
I'm designing a sheet metal part that I want to manufacture later. Now I need to extend a sheet edge, and I can't seem to get it right.
I can't extend the sheet edge in one plane using the flange function, as it has to be curved.
Do you have any ideas?
https://youtu.be/Bs8qrlMj-18
Thank you!
Tagged:
0
Comments
Is this what you're looking for?
https://cad.onshape.com/documents/1968e34cd2a55fcbd15b0d8d/w/539503809272e06b14d52a40/e/220d6756ca74e20aa05262b3
Note that it gave an interference problem when trying to use a move face. 0 deg is not a flange.
Hi,
For this I either use 2 methods
Move Face

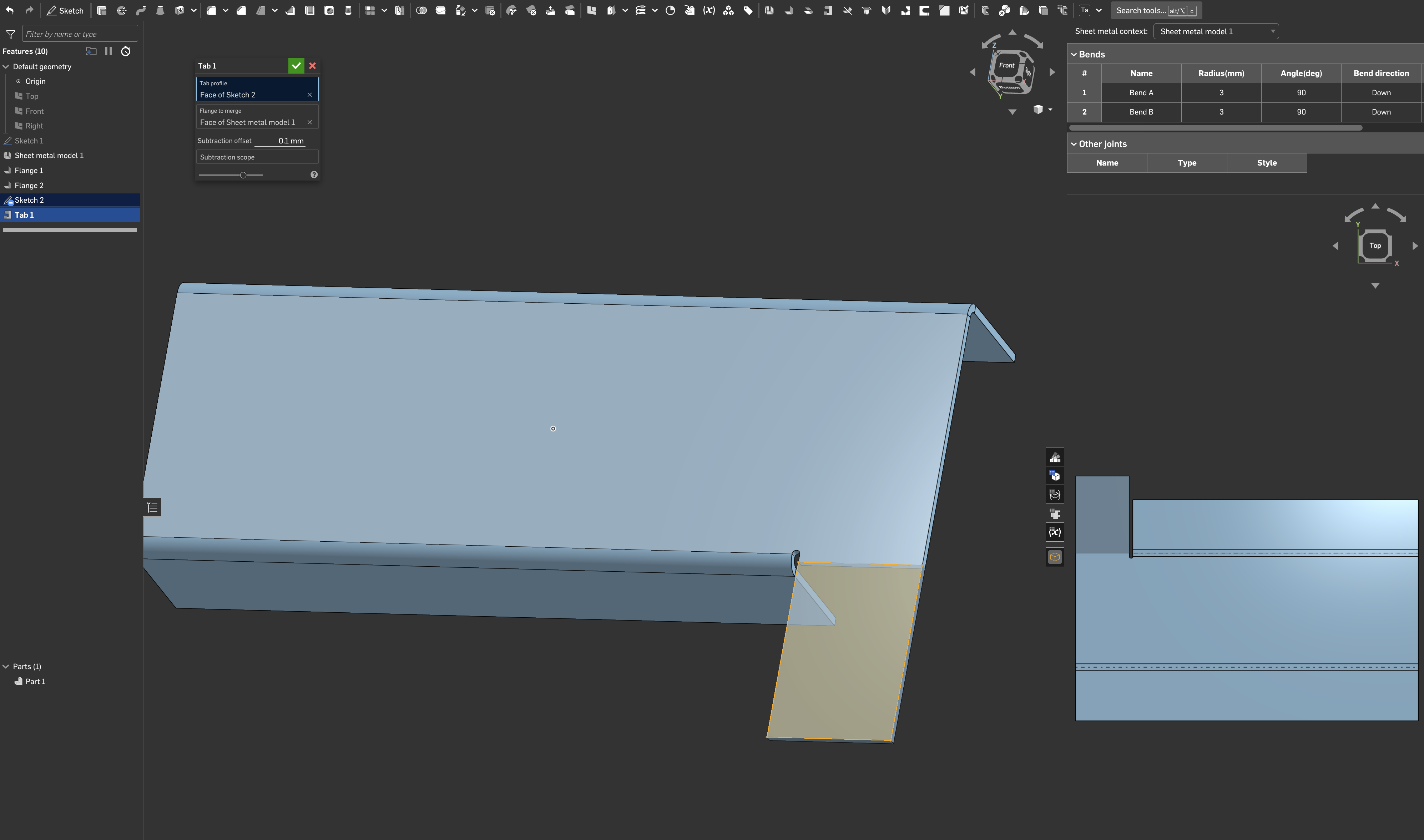

Sheetmetal Tab - more powerfull as sketch can define all kinds of shapes
