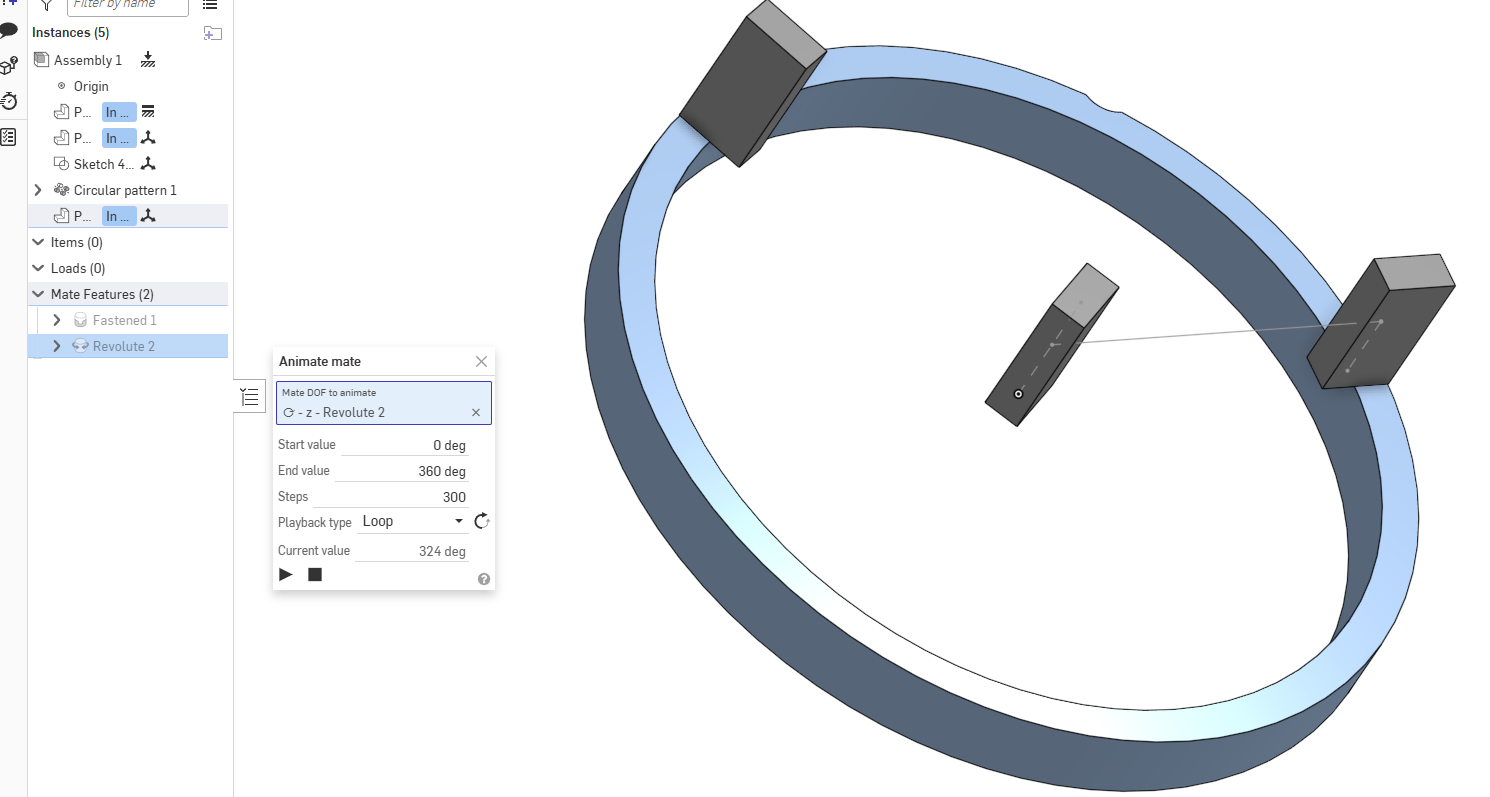

Blocks rotate along the center without Revolute mate.

yip_cmyip_cm Member Posts: 24

There is no mates connection between the center block and the 2 other blocks.

May I know why the 2 blocks moving together with the center block?

https://cad.onshape.com/documents/6f1297679fe443bf15bfcfa1/w/3e3031e96bb6b7565d9fbe4b/e/28e4be7c181e379d6da96d7d

Comments

  • glen_dewsburyglen_dewsbury Member Posts: 1,098 PRO

    Your question seems a bit off to me. Here's a sample of what I think you're looking for with out all the tangents mates.

    https://cad.onshape.com/documents/bf85617310fee0393f950df9/w/ae0a57f136699f464e31d77b/e/e19c74ba15cd7fa4b1fddd5b

  • yip_cmyip_cm Member Posts: 24

    Thanks for your reply, but ….

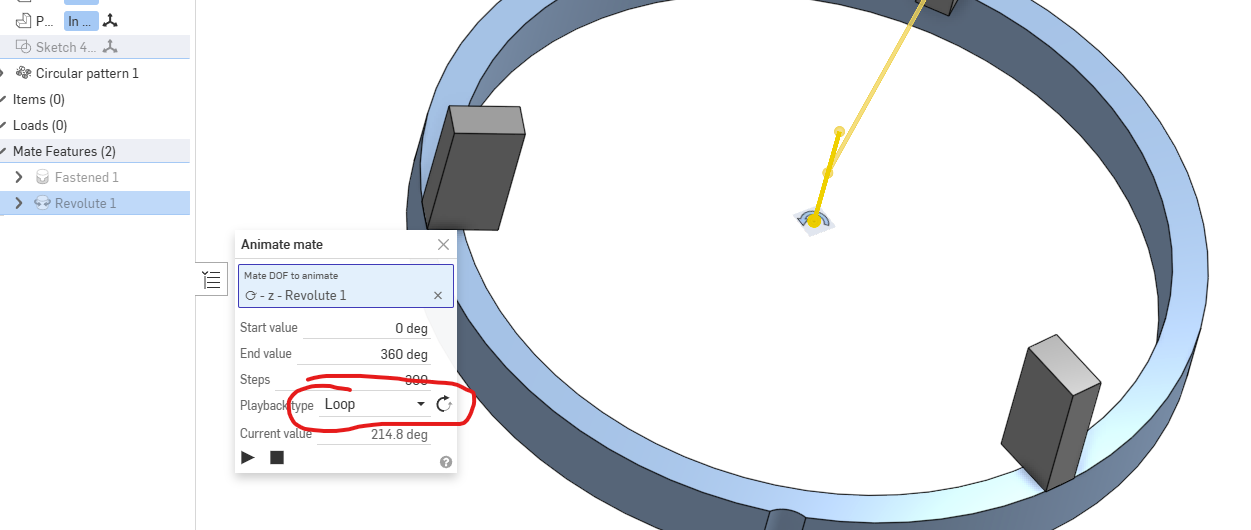

    I never ask the 2 blocks at the rim to rotate, I just ask the center block to rotate only.

    However, both the cube and the rectangular block were rotate together with the center block, why? Please advise.

    Thanks again.

    There was an error displaying this embed.

  • glen_dewsburyglen_dewsbury Member Posts: 1,098 PRO

    Likely something to do with all the tangents used making them lock together some how.

    Here's another sample with just the center block rotating. The other 2 blocks can be fixed any way you need.

    https://cad.onshape.com/documents/bf85617310fee0393f950df9/w/ae0a57f136699f464e31d77b/e/e19c74ba15cd7fa4b1fddd5b
