Best way to design grooved (internal toothed tube)

nuno_cruz763 Member Posts: 7 ✭

July 29 in Drawings

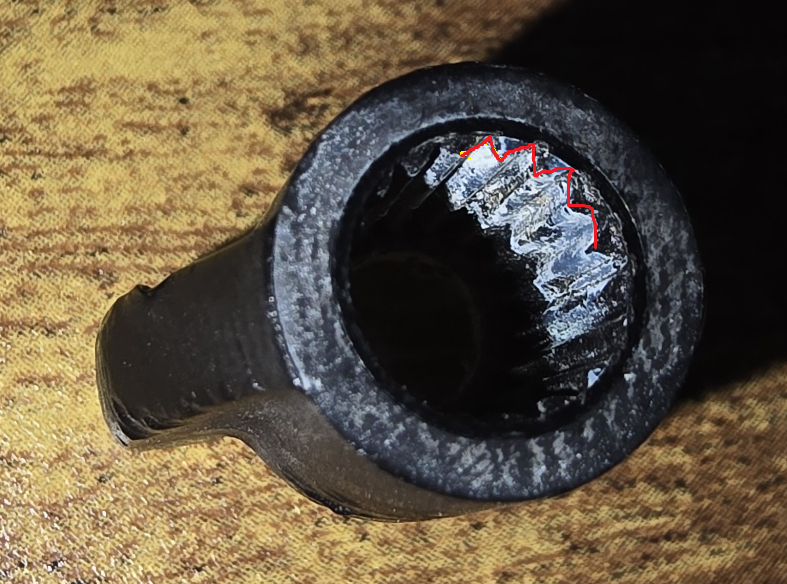

Could anyone help me with best way to design this internal toothed tube?

Thank you!

0

Comments

Matt_Shields Member, Onshape Employees Posts: 676 EDU

July 30

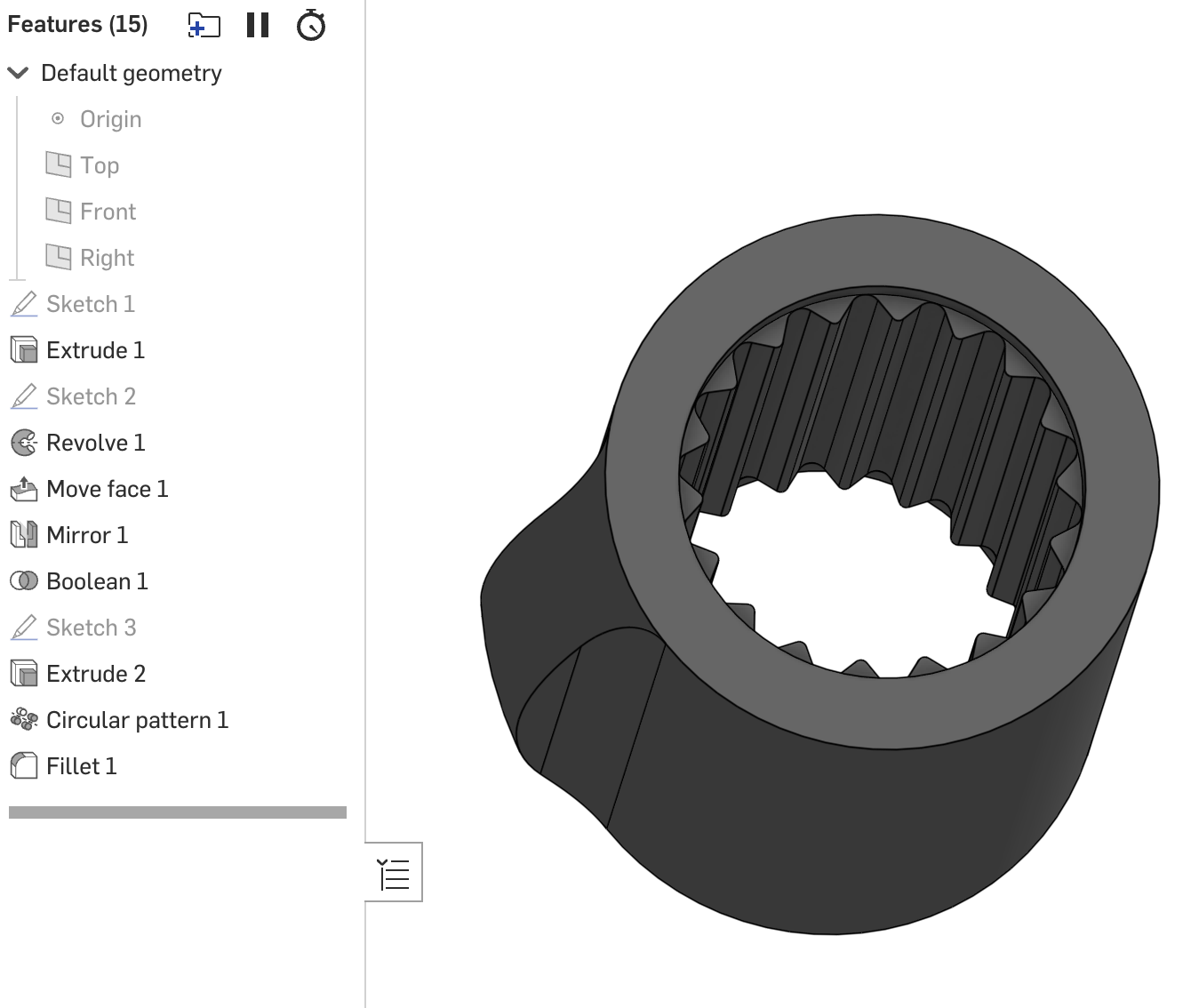

Circular pattern a tooth or a tooth cutout.

https://cad.onshape.com/documents/7b265f9547ea96d0c8af0858/w/a086dde488156e48d7b16a86/e/83187e807a7eb809ce05daf0
