Improvements to Onshape - August 7th, 2025

mlaflecheCAD

It's Thursday and we have a release chock full of goodies. This release contains a wide variety of features and improvements to usability, Configurations, Drawings, Render Studio, and more. Let's dive right in!

CAD IMPROVEMENTS

EDIT SKETCH PATTERN

In sketch patterns, such as linear and circular patterns, you can now add and remove instances and sketch entities after initial creation.

https://onshape.wistia.com/medias/gczlcbtyue

CONFIGURATION VISIBILITY CONDITIONS

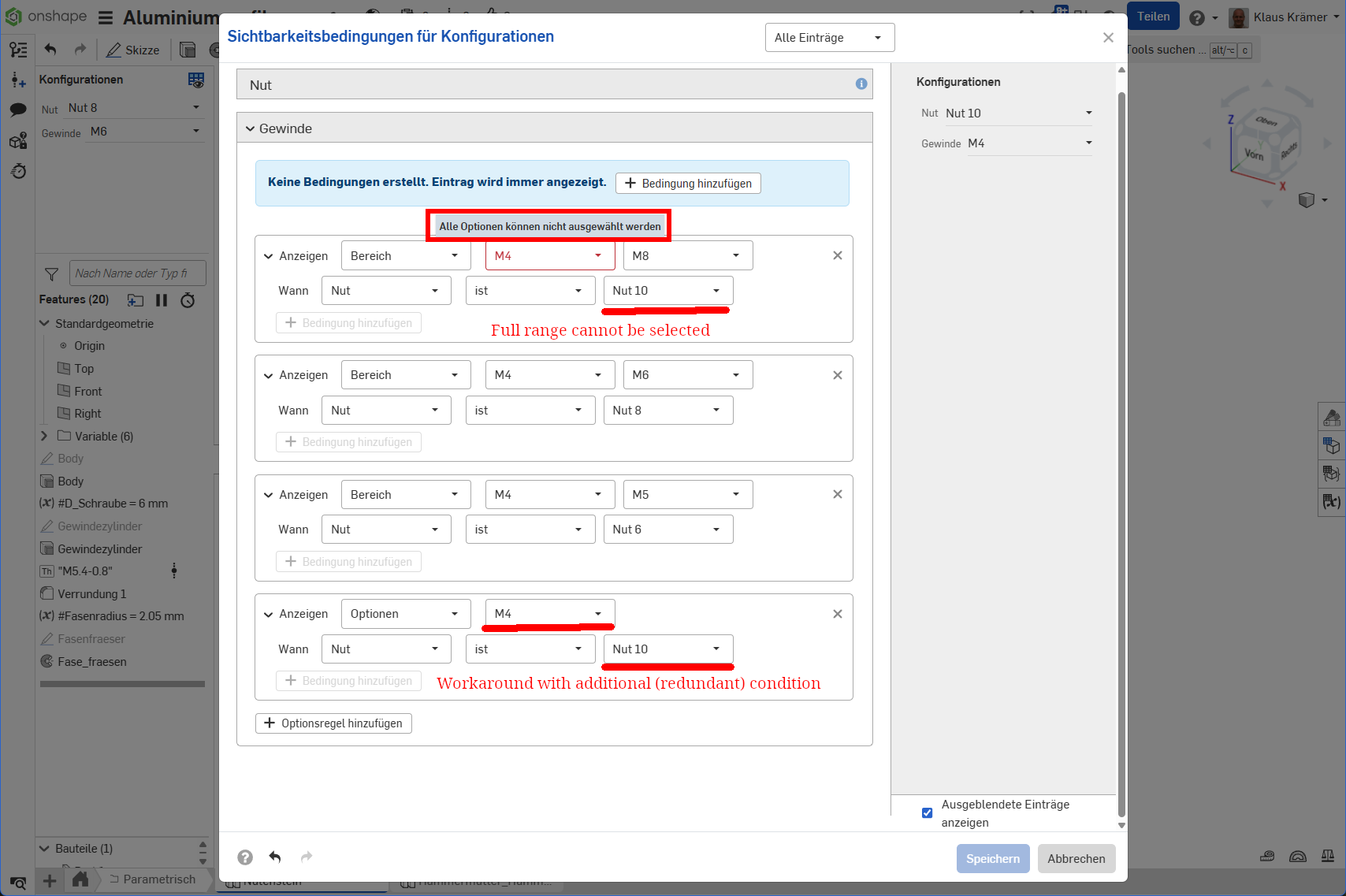

New options rules are available to dial in which values should be present based on other inputs. Human readable parameters now show when values are collapsed. A new undo/redo function is at the bottom of the screen and the right-side preview provides greater clarity now that the panel shows "hidden values" by default.

https://onshape.wistia.com/medias/irt8ca2ut4

FRAMES AND FORMS LIBRARY SEARCH FILTER

When inserting Frame elements or Sheet metal Forms from your library, you can search by name, size and configuration, rather than scrolling through dropdown lists.

https://onshape.wistia.com/medias/d0o1bmoe3c

CURVE DEVIATION

Onshape introduces the Curve deviation tool, designed to streamline the process of checking curve alignments. Accessible via the Analysis tools in a Part studio, it provides instant feedback on minimum and maximum deviations.

https://onshape.wistia.com/medias/owh2ncexo1

HIDE OR SHOW BEFORE SETTING ASSEMBLY CONTEXT

It is now possible to hide or show components before setting the initial context for your Part studio for in-context design.

https://onshape.wistia.com/medias/xq1jmwbo85

VARIABLE STUDIOS

As with configurations from the last update, you can easily reorder values and Variable Studios in the Variables panel as well as collapse and expand all.

https://onshape.wistia.com/medias/ftb2hk2yl9

WORKSPACE UNITS

Mixing different unit systems in your Workspace is now possible.

https://onshape.wistia.com/medias/4wcpv4d929

MATERIAL UNITS

Mixing unit systems for material libraries allows for preferred units and simplifies the import and export of custom material libraries.

https://onshape.wistia.com/medias/ktd9nq4uxu

EXPORT INNER LOOPS FOR FLATTENED SURFACES

Surface flattening has been enhanced to support inner edges during the export process.

https://onshape.wistia.com/medias/c2u2tjf8m6

DRAWINGS IMPROVEMENTS

NEGATIVE DIMENSION VALUES

Change the value of a sketch dimension relation to a negative value.

https://onshape.wistia.com/medias/dwi3wzr5at

COPY AND PASTE TABLE DATA

You may now copy and paste individual cell and table data in many ways; both internal to an Onshape drawing, or external to a spreadsheet or text editing application.

https://onshape.wistia.com/medias/m7w66x0oro

LOCKED HEADER ROW FOR INSPECTION TABLE

The top row of the Inspection list is fixed in place for better readability when viewing long inspection lists.

https://onshape.wistia.com/medias/ou6rxxbblp

DATA MANAGEMENT IMPROVEMENTS

LIST VIEW COLUMN SORTING AND PART HIGHLIGHT

Improved sorting options by Part number, Revision, and State in List view. Additionally, when opening from List view, Structure view or search results, individual components appear in Isolate mode within a multi-part studio.

https://onshape.wistia.com/medias/m2r8t2gsff

ASSIGN A TASK TO MULTIPLE USERS

Multiple users can be assigned to a single task, allowing one to complete that task.

https://onshape.wistia.com/medias/ovl3ju29ak

DOCUMENT RECOVERY

In the rare situation that a document needs recovery, the rich Onshape history is at your disposal, with new automatic options that appear if Onshape detects a slowdown that recovery can benefit.

https://onshape.wistia.com/medias/qpsjxrqvhh

RENDER STUDIO IMPROVEMENTS

FOLDER IMPROVEMENTS

Folder names are included in the Search filter, and Folders with their contents, can be suppressed or used for other operations.

https://onshape.wistia.com/medias/ml3asm4cu9

CUSTOMER SUPPORT IMPROVEMENTS

CONTACT SUPPORT

The Contact Support tool has been redesigned to support selective capture and also includes an expandable text area for more descriptive details. It also supports external markups and attachments in addition to the internal markup toolset.

https://onshape.wistia.com/medias/ildyxqy5dx

---

Please take a moment to try out these new features and improvements and leave your comments below. For a detailed list of all the changes in this update, please see the changelog.

Remember: The updates listed here are now live for all users when creating new Documents. Over the next few days, these features will also be available in Documents created before this update.
