Button "Hole/thread callout"
александр_боровенский152
Member Posts: 3 EDU
in Drawings

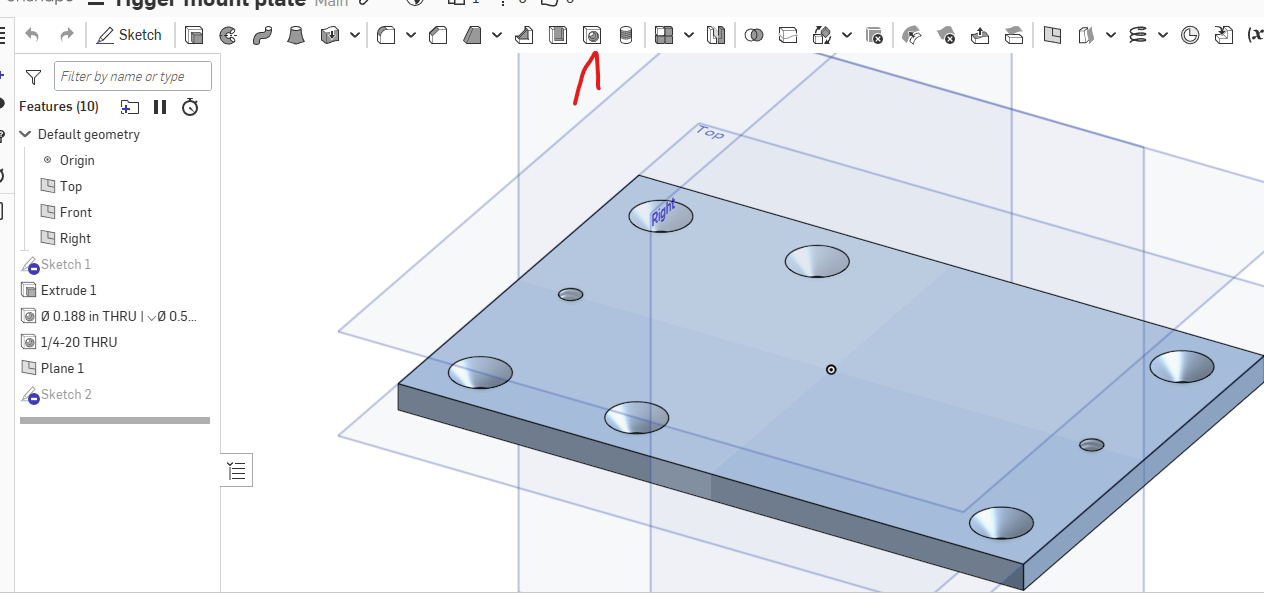

ello everyone! I have a problem - I can't make a callout for the size of the hole diameter. The Hole/thread callout button does not work.k.
0
Comments
Question. Did you use an extruded circle for the hole or the "hole tool"?

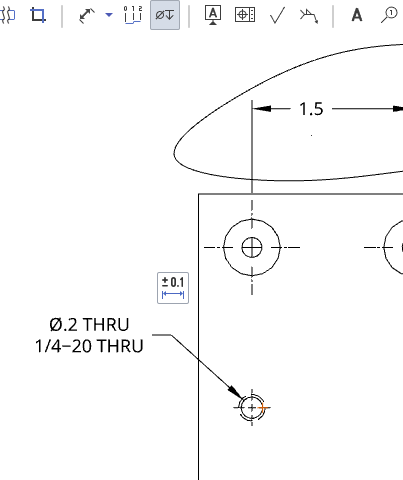

The hole call out in drafting responds better when the hole tool is used in part studio.
I used a circle to extrude the hole. I always did this and everything looked fine on the drawing.
Could it be your (extruded) hole is not perpendicular to the view? In these cases, or if the surface around the (extruded) hole is not planar, the callout might not work.
