Curve Pattern on Spiral with Orientation locked on Circle Center
I want to pattern an object along a curve (ive tried both Helix and Parametric) and lock the orientation on the center of the circle (in my case the Z Axis).
The curve starts at 120mm Radius and ends at 40mm radius
https://cad.onshape.com/documents/00c9db9d02dbafeaa5e0345b/w/500ced153d64ee09c8cacef3/e/7f5494a24f6260ffa34ba8d8?renderMode=0&uiState=68c9b5950dc5a3ffa226f524

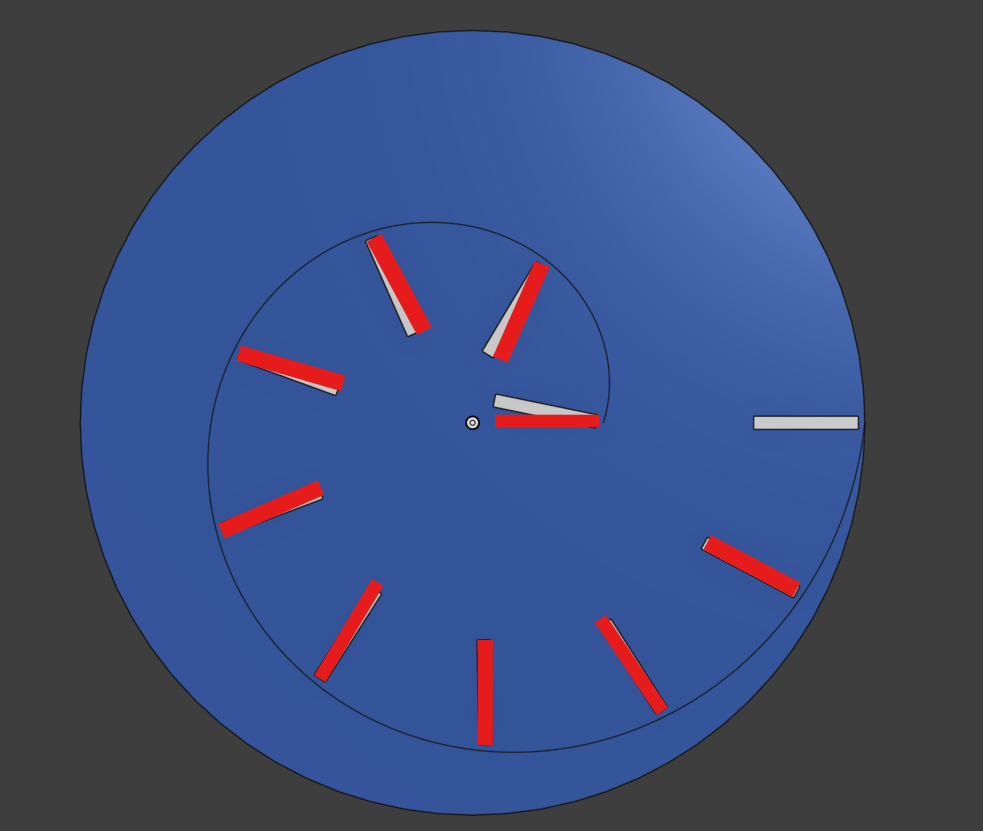

Grey: What I get
Red: What I want
Tagged:
0
Comments
Pattern a sketch feature which is dimensioned by the angle, and coincident with the curve, and re-apply feature.
Simon Gatrall | Staff Mechanical Engineer | Carbon, Inc.
