Introduction to Part Studios help
tyler_geiger873
Member Posts: 11 ✭

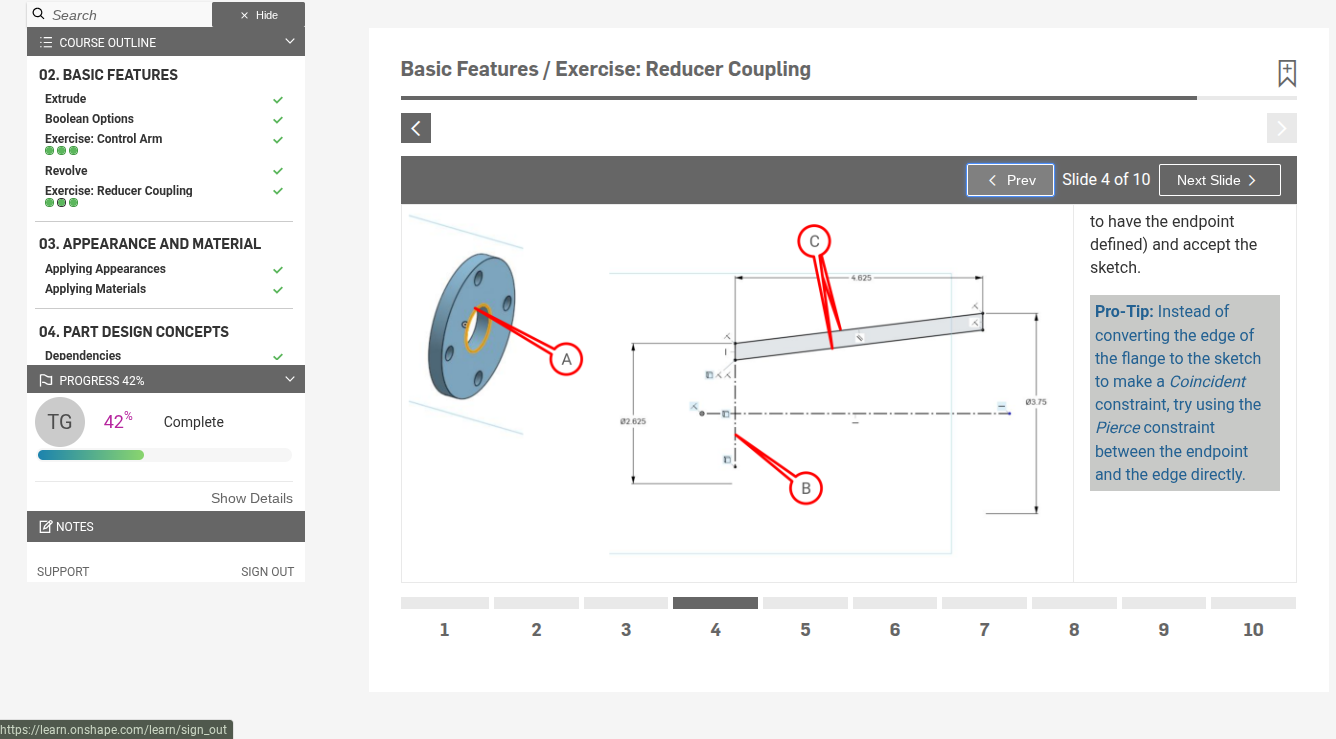

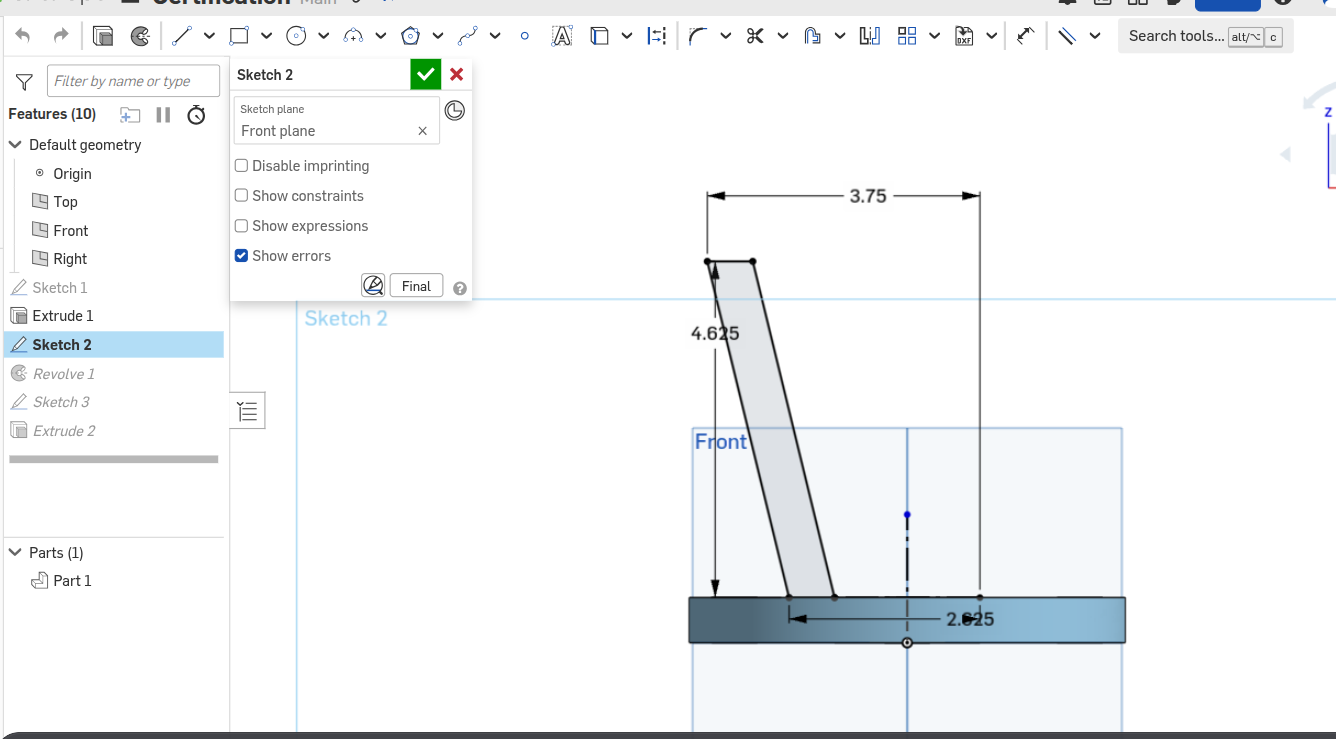

hey I currently trying to take the Introduction to Part Studios and I'm trying to make the part for it I tried to find any problems but I couldn't and I'm getting different sizes and surface area can I get some help, https://cad.onshape.com/documents/14547d652de9e1a3a496d85d/w/b2f1dea0dddd9491365aba92/e/9514e34d174575d6f8d5b0a8?renderMode=0&uiState=694438890944c63e58b70501
Tagged:
0
Comments

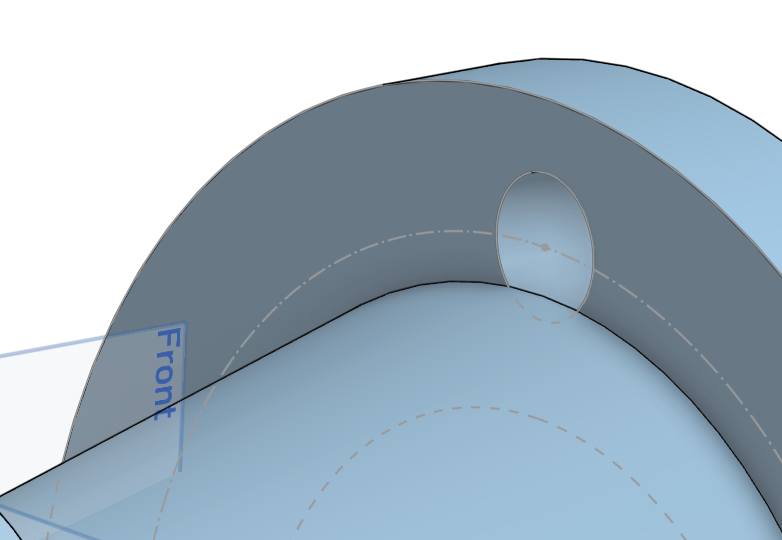

Double-check Sketch 2. I don't think the part is supposed to look like this:
hey I checked it and I still cant figure it out my dimensions are correct

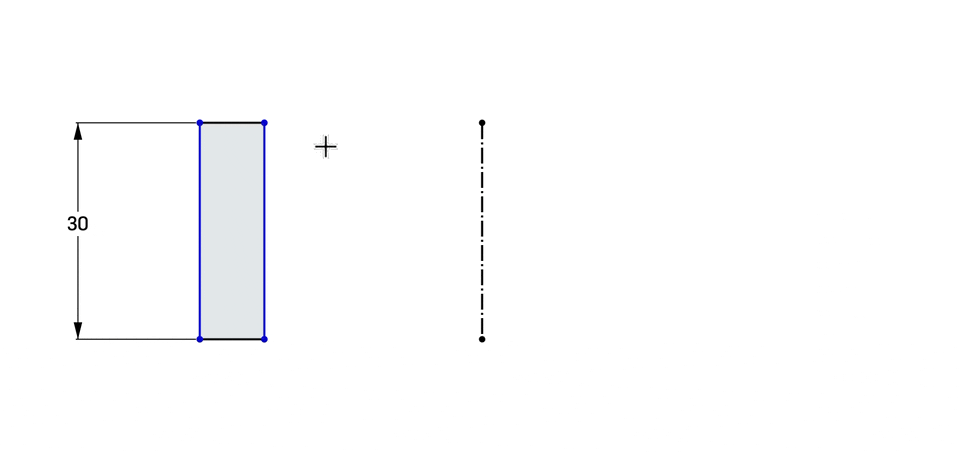

To get diameter dimensions you need to click on the entity, the center line and then just beyond the centerline.
Simon Gatrall | Product Development Specialist | Open For Work
thank you so much that was the problem i completely forgot about that.
