Offset
chandrashekar_r
Member Posts: 51 ✭
in General

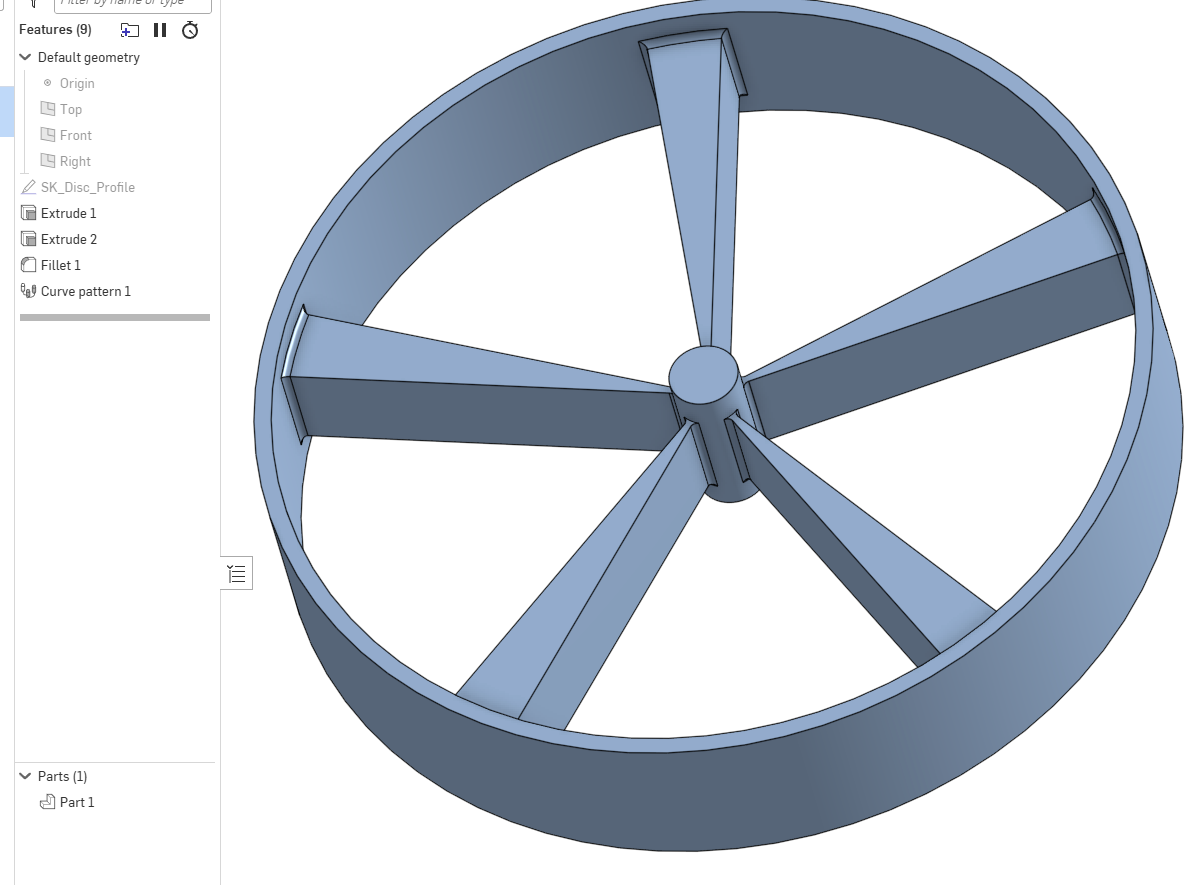

The Blades are touchng the top face , i need blades to stat after 5 mm from top
https://cad.onshape.com/documents/b4af917b0966a89e95812e53/w/0fbce43b1cd9011d208d003b/e/4a155e16af29858bff001812?renderMode=0&uiState=69a3ebdfa5e128d6293e3a49
0
Comments
You could sketch the outer ring, the blades, and the hub as separate sketches, then extrude to the height you need for each.
Or this:
https://cad.onshape.com/documents/4e10d0c22649b844b8f016c8/w/6e420cd61e95bd639f2e5e84/e/5ec0abd9461e0dc6af33d59b?renderMode=0&uiState=69a484a269fb5639898fccf0
I created a new plane 5mm below the top, sketched a 125mm circle there, and then an extrude/remove to delete the top of the blades & hub.
If needed the hub to match the ring height you could sketch the hub circle on the same plane and extrude/add back up 5mm.
I'm new at this, but starting to figure a few things out!
Here is another option.
https://cad.onshape.com/documents/2c34febaf65d84ecc403953c/w/14c20b0fe8cfc5815ffeb2ee/e/f2e16a4645ef0be7571ce566
