Problem with a script that sometimes doesn't work

slomi_huta

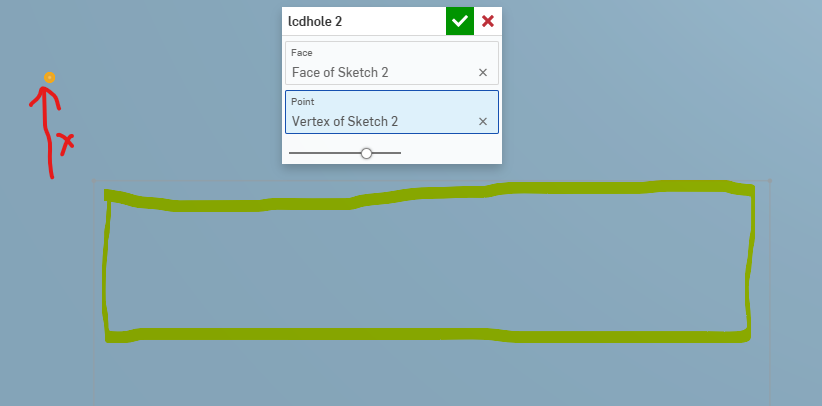

If I create a point and run the script on it it doesn't work

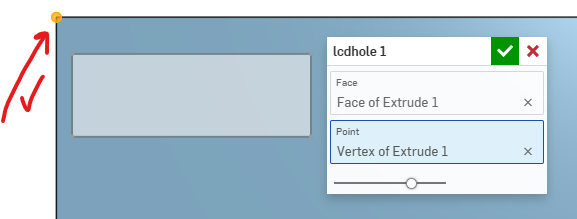

And it only works on a point of a 3D object.

FeatureScript 2931;
import(path : "onshape/std/common.fs", version : "2931.0");

annotation { "Feature Type Name" : "lcdhole" }
export const lcdhole = defineFeature(function(context is Context, id is Id, definition is map)
precondition
{
annotation { "Name" : "Face", "Filter" : EntityType.FACE, "MaxNumberOfPicks" : 1 }
definition.face is Query;

    annotation { "Name" : "Point", "Filter" : EntityType.VERTEX, "MaxNumberOfPicks" : 1 }
    definition.corner is Query;

}
{
    var plane = evPlane(context, { "face" : definition.face });
    var cornerEntity = evaluateQuery(context, definition.corner)[0];
    var pt = worldToPlane(plane, evVertexPoint(context, { "vertex" : cornerEntity }));

    var sk1 = newSketchOnPlane(context, id + "sk1", { "sketchPlane" : plane });

    skPolyline(sk1, "rectLcd", {
                "points" : [
                    vector(pt[0] + 4.7 * millimeter, pt[1] - 36 * millimeter),
                    vector(pt[0] + 76.7 * millimeter, pt[1] - 36 * millimeter),
                    vector(pt[0] + 76.7 * millimeter, pt[1] - 11 * millimeter),
                    vector(pt[0] + 4.7 * millimeter, pt[1] - 11 * millimeter),
                    vector(pt[0] + 4.7 * millimeter, pt[1] - 36 * millimeter),

                ]
            });

    skSolve(sk1);
    opExtrude(context, id + "ex1", {
                "entities" : qSketchRegion(id + "sk1"),
                "direction" : -plane.normal,
                "endBound" : BoundingType.BLIND,
                "endDepth" : 5 * millimeter,
            });

    opBoolean(context, id + "bool1", {
                "tools" : qCreatedBy(id + "ex1", EntityType.BODY),
                "targets" : qOwnerBody(definition.face),
                "operationType" : BooleanOperationType.SUBTRACTION,
            });

});

NeilCooke

Try

var sketchPlane = evPlane(context, { "face" : definition.face });
sketchPlane.origin = evVertexPoint(context, { "vertex" : corner });
var sk1 = newSketchOnPlane(context, id + "sk1", { "sketchPlane" : sketchPlane });

slomi_huta

annotation { "Feature Type Name" : "lcdhole" }
export const lcdhole = defineFeature(function(context is Context, id is Id, definition is map)
precondition
{
annotation { "Name" : "Face", "Filter" : EntityType.FACE, "MaxNumberOfPicks" : 1 }
definition.face is Query;

    annotation { "Name" : "Point", "Filter" : EntityType.VERTEX, "MaxNumberOfPicks" : 1 }
    definition.corner is Query;

}
{
    var sketchPlane = evPlane(context, { "face" : definition.face });
    sketchPlane.origin = evVertexPoint(context, { "vertex" : definition.corner });

    var sk1 = newSketchOnPlane(context, id + "sk1", { "sketchPlane" : sketchPlane });
     var cornerEntity = evaluateQuery(context, definition.corner)[0];
    var pt = worldToPlane(sketchPlane, evVertexPoint(context, { "vertex" : definition.corner }));


    skPolyline(sk1, "rectLcd", {
                "points" : [
                    vector(pt[0] + 5 * millimeter, pt[1] - 5 * millimeter),
                    vector(pt[0] + 10 * millimeter, pt[1] - 5 * millimeter),
                    vector(pt[0] + 10 * millimeter, pt[1] - 10 * millimeter),
                    vector(pt[0] + 5 * millimeter, pt[1] - 10 * millimeter),
                    vector(pt[0] + 5 * millimeter, pt[1] - 5 * millimeter)
                ]
            });

    skSolve(sk1);
    opExtrude(context, id + "ex1", {
                "entities" : qSketchRegion(id + "sk1"),
                "direction" : -sketchPlane.normal,
                "endBound" : BoundingType.BLIND,
                "endDepth" : 50 * millimeter,
            });

    opBoolean(context, id + "bool1", {
                "tools" : qCreatedBy(id + "ex1", EntityType.BODY),
                "targets" : qOwnerBody(definition.face),
                "operationType" : BooleanOperationType.SUBTRACTION,
            });

});

Thank you very much for the response
I really appreciate it
But unfortunately the problem remains.

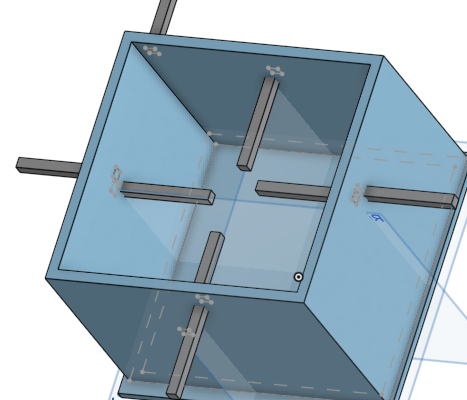

When I cancel the BOLEAN it performs the EXTRUDE

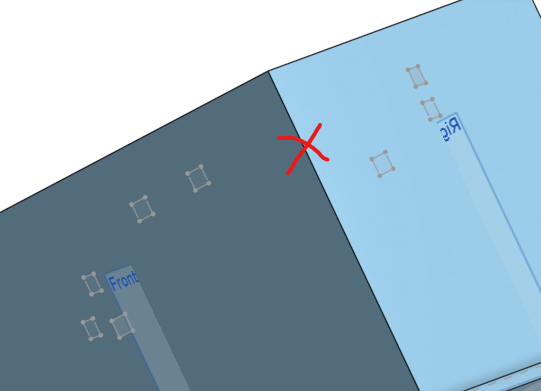

But with the BOLEAN it only performs a draw

NeilCooke

With the sketch plane origin set to the point, you don't need "cornerEntity" or "pt", your polyline will start at (0,0), therefore:

"points" : [
vector(5 , - 5) * millimeter,
vector(10, - 5) * millimeter,
vector(10, - 10) * millimeter,
vector(5, - 10) * millimeter,
vector(5, - 5) * millimeter
]

(or use skRectangle)

Not sure why the boolean fails, unless it does not intersect the solid? What is the error?
