How to scale a sketch parametrically?

john_robinson568
john_robinson568 Member Posts: 16 ✭✭
edited April 18 in Community Support

Hi all,

I am making a simple jewelry box, with the outline of a rose flower debossed into the lid. I created the sketch of the rose in Inkspape, and then imported the resulting .DXF into onshape. The sketch is very complex, lots of curves and vertices. I know that when you open a sketch, and it has no dimensions, that if you add a single dimension and then change that dimension, the whole sketch will scale accordingly. The problem I am having is that that only seems to work when the sketch is open for editing. If I add a single dimension to the rose that I am importing based on a parameter (I am trying to scale the size of the rose based on the outside diameter of the lid), then when I change that paraemter, then the sketch does not scale, instead it tries to pull the sketch apart, which causes the model to fail. So now I'm a bit lost. I figure that there must be a simple way to do this, but I'm afraid the solution is escaping me. Appreciate any tips. Cheers, John

Tagged:

Best Answer

  • eric_pesty
    eric_pesty Member, pcbaevp Posts: 2,936 PRO
    Answer ✓

    Best way to do this is to create solids/ surfaces for what you want to do first and scale these instead.

    Basically "delay" the scaling of that part until you are done with the sketch itself.

Answers

  • CADNurd
    CADNurd Member Posts: 166 ✭✭
    edited April 18

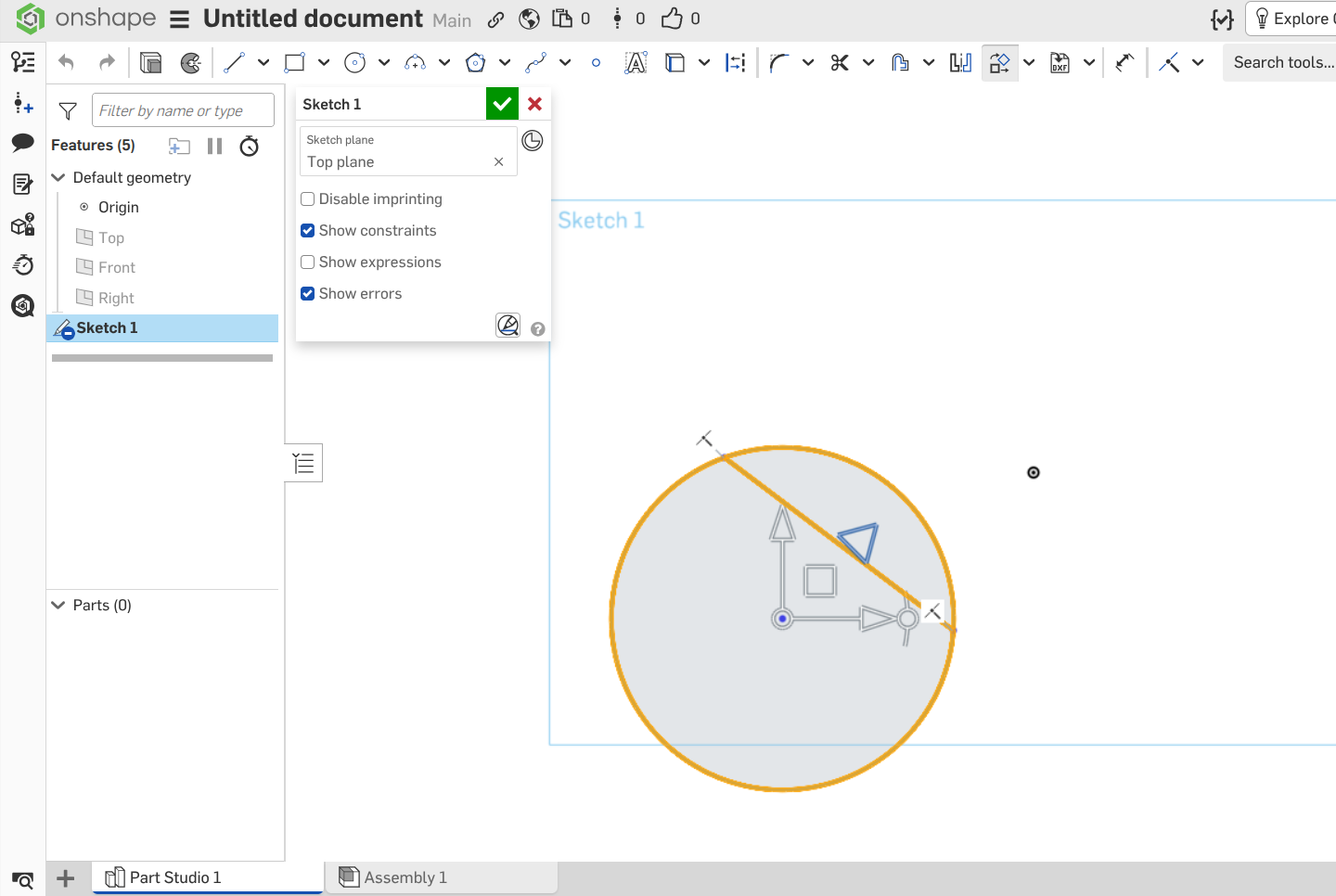

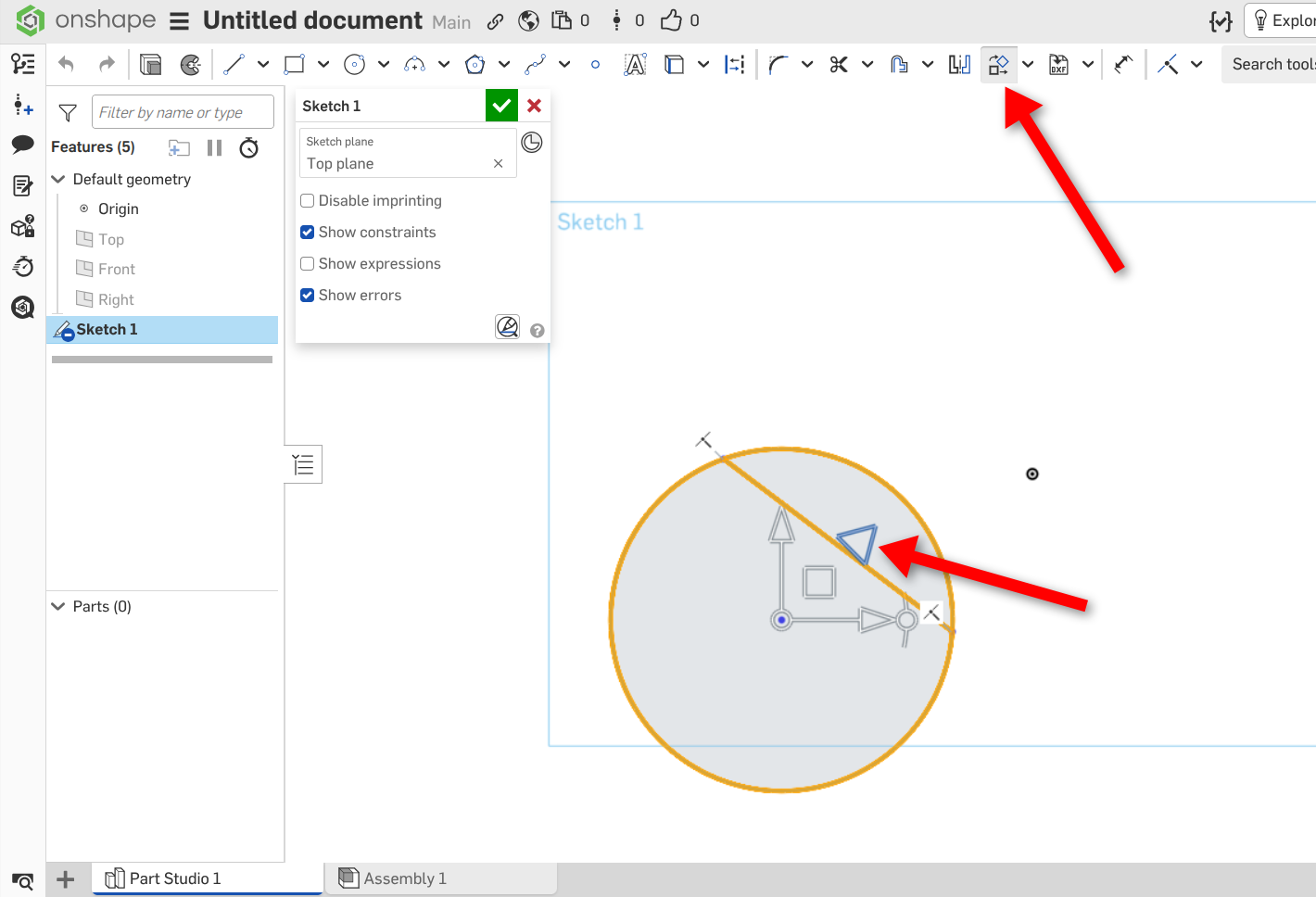

    With the sketch open, go to the 'transform' tool, then box-select the entire sketch - a triad-thing should appear - grab the diagonal triangle and pull it outwards and upwards - a dimension box should appear letting you input a scaling factor.

    Copy of 1080p Annotate Template .png

    Unemployed Onshaper - Operating on European time - More of me here ➤➤ https://linktr.ee/Liam.G

  • eric_pesty
    eric_pesty Member, pcbaevp Posts: 2,936 PRO
    Answer ✓

    Best way to do this is to create solids/ surfaces for what you want to do first and scale these instead.

    Basically "delay" the scaling of that part until you are done with the sketch itself.

  • john_robinson568
    john_robinson568 Member Posts: 16 ✭✭

    Thanks very much for the reply. The question is how do you make that parameter-driven? AFAIK, the sketch transform tool is a one-time operation.

  • john_robinson568
    john_robinson568 Member Posts: 16 ✭✭

    Thank you for the reply. This is what I ended up doing.

  • CADNurd
    CADNurd Member Posts: 166 ✭✭

    Yes. You're right, a one time operation, which - for some reason - doesn't accept variables. If you search the forum for discussions on 'Sketch Blocks' and why Onshape doesn't have them, you might pick up some tips/advice.

    Unemployed Onshaper - Operating on European time - More of me here ➤➤ https://linktr.ee/Liam.G

  • CADNurd
    CADNurd Member Posts: 166 ✭✭

    P.S. - Gave ChatGPT a go at the 'Missing Sketch Blocks' mystery and learned a thing or two . . .

    https://chatgpt.com/share/69e3f056-5e2c-832d-950c-d17092f2b0fb

    Unemployed Onshaper - Operating on European time - More of me here ➤➤ https://linktr.ee/Liam.G

  • donald_chavez
    donald_chavez Member Posts: 7 ✭

    The issue is that a single dimension won't reliably scale a complex imported DXF sketch once its geometry becomes constrained. A better approach is to keep the rose sketch unconstrained and use the Transform feature with the Scale option to resize it parametrically. Link the scale factor to a variable calculated from the lid diameter and the rose's original size. This avoids forcing individual curves and vertices to move independently and helps prevent sketch failures.

  • robert_scott_jr_
    robert_scott_jr_ Member Posts: 948 ✭✭✭

    "then the sketch does not scale, instead it tries to pull the sketch apart, which causes the model to fail."

    Another way to do this is to draw vertical construction lines outside and left and right of the flower and make them coincident to points (tangent to curves can also work if need be) that are at the extremes of the flower. Make the distance between the two lines the dimension you want the flower to be. - Scotty
