Loft for a fuselage

o_krumm

Hello everyone. I am currently trying to draw a fuselage for a model aircraft. I am having problems with the Loft function. I think it is easier to explain with a picture:

In the upper picture you can see the final profile an the vertex. The lower picture shows the problem. I don´t know why it looks like that...

here ist the link to the document: https://cad.onshape.com/documents/6ea2d12d864c9c49417e4a54/w/0d8d81adb10c8dc6d90ab589/e/2a8c27669cf21dd86663c09d

I hope someone knows how to help.

WIth best regards, Oliver

larry_hawes

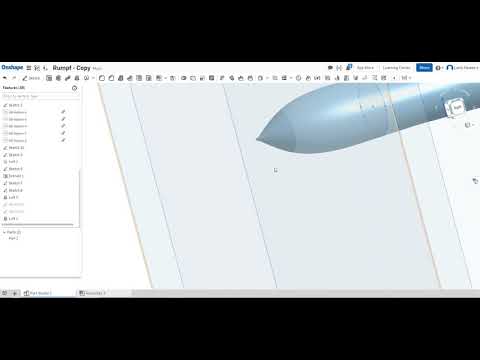

Hope this helps. Maybe leave the start profile conditions at 'none'?

https://cad.onshape.com/documents/6292b62b774bc15640b63c1a/w/edfadf885e706ec76a0db7d5/e/a47dbad9c45494d90bc764c5

http://www.youtube.com/watch?v=L3Xh_zNiq-Y

philip_thomas

These are the fun ones

https://cad.onshape.com/documents/37b142adc75112b037b7c994/w/404e256cb8fecbfbbc200b5e/e/ab03125db9082c5b3510945c

larry_hawes

Nice Philip - never noticed the guides.

philip_thomas

@larry_hawes - I also recommend NOT lofting the 'V' cut - cut that in afterwards - get the fuselage lofting smoothly first

o_krumm

looks much better thanks. But it is far from perfect. The fuselage is still not round:

philip_thomas

@o_krumm - its not round because none of the cross sections are round!!!!!!!
I have modified the part studio to make it round

o_krumm

oh yeah i just saw it. Sorry for my bad choice of words. of course it is not round because of the elliptic faces. What I meant was that it is not as eliptic as I would expect. I also played around with the revolvecommand but I need the fuselage to be elliptic. I found a way around the usage of paths and/or guides but it is very time consuming as you need to adjust the faces all the time to get to the shape you desire:

philip_thomas

Looks like you have it!
