Sketch is not fully defined?
ron_deangelis
Member Posts: 7 ✭
Hello,
started using onShape yesterday. In my sketch, I created construction rectangle, placed a point on each corner to add holes. As shown in the pic, showing all constraints. What am i missing to add a constraint to resolve the "not fully defined"?
0
Comments
Hard to tell without sharing the document, but my guess would be that one of those lines needs to be constrained as vertical or horizontal. Try grabbing one of the corners and your square probably rotates.
Hi Matt,
Added the horizontal constraint to fix the rotation. Still getting not fully defined?
Also, what is that above the model, a plane?
https://cad.onshape.com/documents/5542700b7955b1d48a833f79/w/4f3cb9fdb0fe683aa9b17cf0/e/4ef0889eeab1e88229f000dd?renderMode=0&uiState=6830e78ff669022501457e97
thank you for your help
Hi Matt,
I added the horizontal constraint and fixed the rotation. Still getting not fully defined.

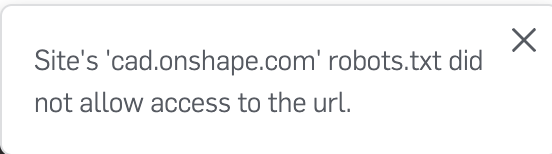

Trying to add a link to the document, but getting this and not sure how to add the robots.txt .
Edit sketch 4. Delete that huge rectangle above the model and your sketch will be fully constrained.
hi matt
Ooooh i must must invertenly created it without knowing i did
Thank uou again
Ron
Did you use a center point rectangle or a collection of lines? CP rectangle will include constraints needed.
