How to 'bend' an extrusion around a curve
sree_vemuri643
Member Posts: 2 ✭

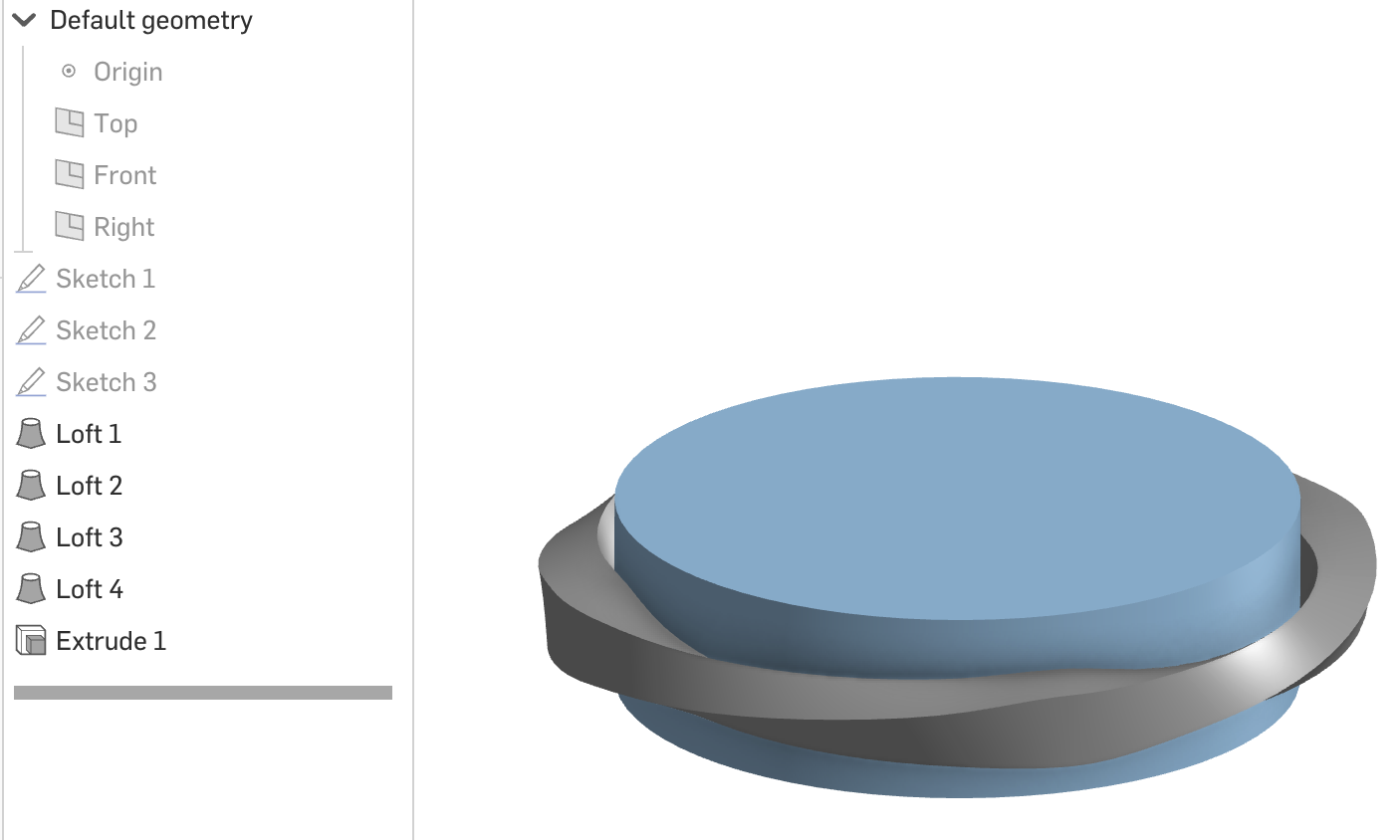

I'm trying to bend this thingy around a curve, is that possible?
Like bending the stick thing around the circle?
0
Comments
you can’t bend things. You have to model them bent
I would love for Onshape to add tools to taper, flex, and otherwise distort geometry like this.
The Onsherpa | Reach peak Onshape productivity
www.theonsherpa.com
I have been working on geometry distortion tools, but alas there's a WoW patch dropping next week so development has really slowed down.
hahaha I am excited to see what you come up with. I do think there's a lot more power for deformations available with Parasolid, but not exposed yet to FeatureScript.
The Onsherpa | Reach peak Onshape productivity
www.theonsherpa.com
In the meantime, you can fake it.

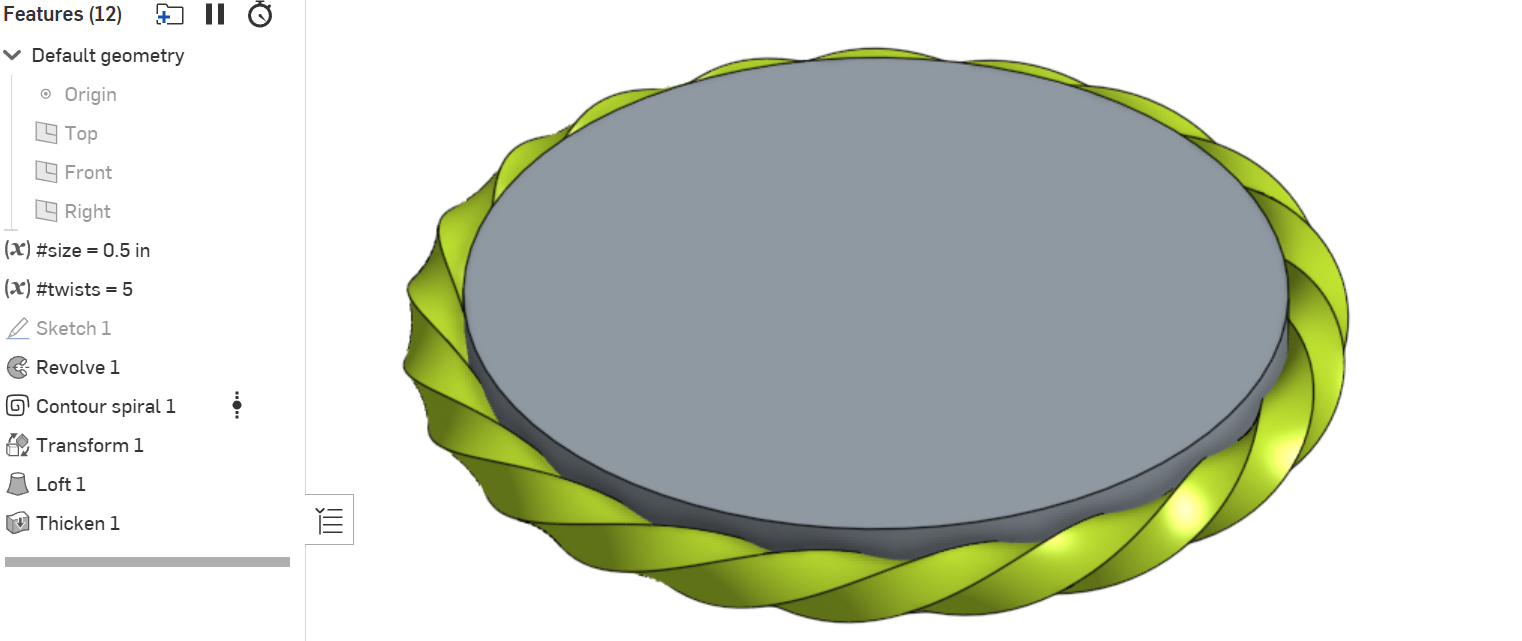

You could use Konstantine's
Contour spiral feature to do it:
https://cad.onshape.com/documents/1fbb0d1bcbfb3c7bd2bfd56c/w/4904580d39b1359501a1f6ee/e/fd3908c68ded6fbd22a99a6…
