Need help with Loft feature for Aerofoil
daniel_savov
Member Posts: 2 ✭
Comments
Loft can be tricky. Please share a link to your document and enable public copies so we can take a closer look.
Most likely the profiles are not connected to the path, or the profile connections are not matching properly.
Usually you would need a few guide curves along with the path. Guide curves work well when going from vertex of profile A to vertex of profile B.
Learn more about the Gospel of Christ ( Here )
CADSharp - We make custom features and integrated Onshape apps! Learn How to FeatureScript Here 🔴

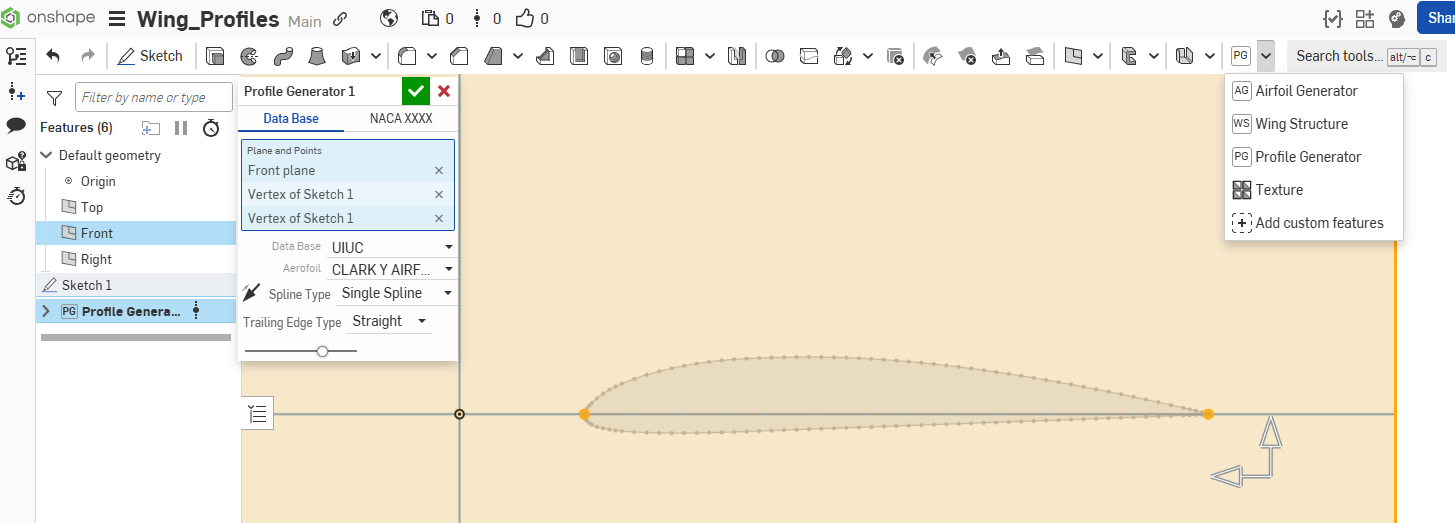

Have you tried using the Profile Generator feature? (you'll need to add it - click Add Custom Features, search for it and add it)
I've found it works better if I don't use the origin as one of the vertices.
Once you generate one profile (root of the aerofoil), create a new plane generate the aerofoil tip profile - you should be able to loft between them
In the example here I used Sketch 1 to define the vertices
