Flange issue
john_tor
Member Posts: 19 ✭
Hi
I was watching this tutorial:

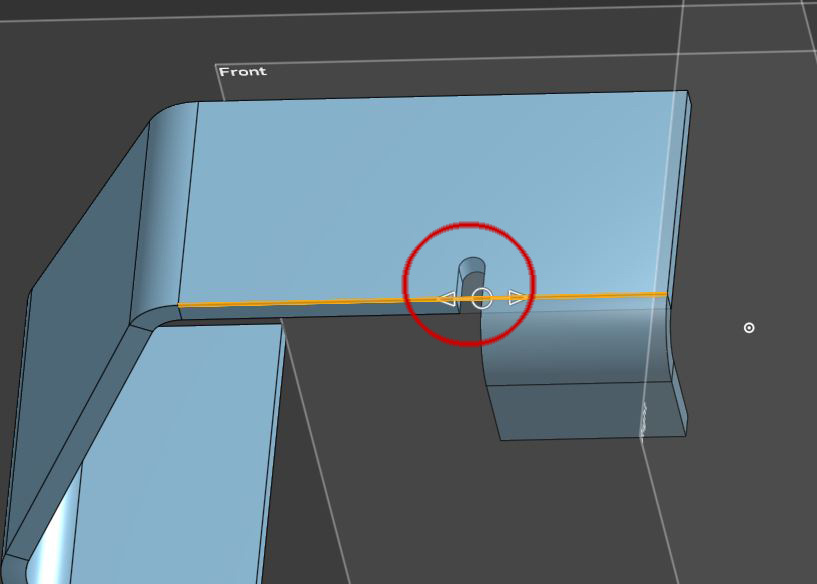

At approximately the 8:20 mark, he used the Flange command. I did the same, but the model generated this odd recess, which you can see highlighted in red in the screenshot below.
I didn't understand how to fix it.
here is the link to my project:
Could you please help figure it out and fix it? Thanks
0
Comments
Check your relief type in your first sheet metal feature. Looks like it is set to "obround". If you set it to "tear", it won't create that relief cut.
I also have a long and rambly video about that part that might have a few interesting nuggets in it…
https://www.youtube.com/watch?v=XlOD7KCmkDA&list=PLa8CoVttf7wXTjnx5d_n87Qh-1kjymyIS
Thank you
Ok, I fixed it by modifying the Bend relief option in "Tear"
