Mate offset orientation, very confusing to me
carl_larsson
Member Posts: 4 ✭✭
Hi there,

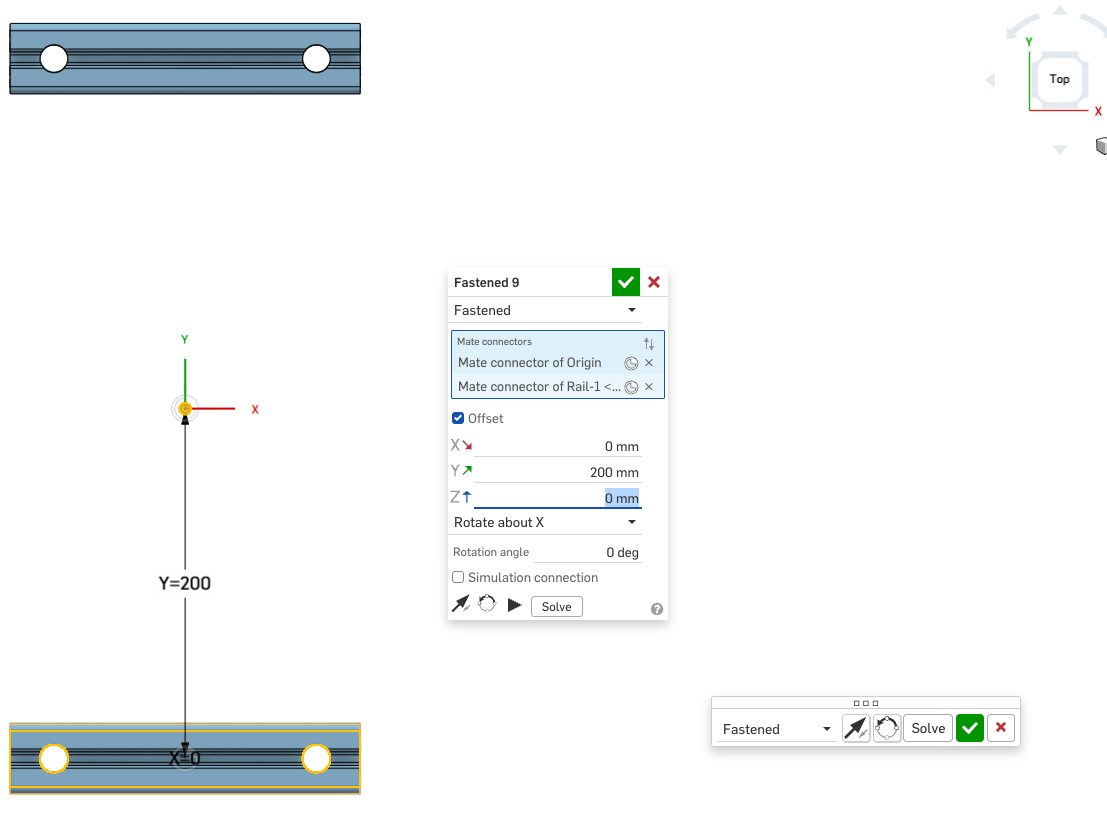

How is the direction (negative/positive) working when offseting something? To me it feels completely random. In the image below, how come a positive offset of 200 mm in the Y-direction is translated downwards when both local and "global" coordinate system is the opposite?
Thanks,
Carl
0
Comments
There are two mate connectors involved in the mate. The orientation of the mate can easily be flipped as well. The positive Y has to do with one of the mate connectors. I can honestly almost never predict which sign is going to be what I want, but I’ve gotten used to just editing until I get the desired result. I’m sure if I analyze it, it does actually make sense.
Simon Gatrall | Product Development Specialist | Open For Work
Yes I know there are two mate connectors. I checked that as well, still doesn't make sense. Same part being offset which means the parts coordinate system is oriented the same way as shown in the screenshot above.
