Logic Driven Switch Configuration
troy_ostrander
Member Posts: 77 ✭✭
in General
Is this possible in Onshape?
0
Comments
I think the answer is probably yes, but I'm not 100% sure what you're asking. Do you mean something like
if #myValue > 5 set the length to 10 and if not set it to 7?I made a video series that might help about all of the ways to build logic into your part studios. Since the creation of those you can also drive feature suppression with an expression, which gives this kind of thing way more power.
The Onsherpa | Reach peak Onshape productivity
www.theonsherpa.com
HI @EvanReese thanks for your video series. I am new to Onshape and was exploring what is possible. I was hoping for someone to point me in the right direction. It could be that this is not possible yet in Onshape. That would be good to know too.
I am trying automate best fitting drawer slide hardware. I can get the logic statement to work but instead of the result being a value, I need the result to switch configuration.
Here is example logic of it producing the correct value
(#DEPTH >= 750 mm ? 750 mm : (#DEPTH >= 700 mm ? 700 mm : (#DEPTH >= 650 mm ? 650 mm : (#DEPTH >= 600 mm ? 600 mm : (#DEPTH >= 550 mm ? 550 mm : (#DEPTH >= 520 mm ? 520 mm : (#DEPTH >= 500 mm ? 500 mm : (#DEPTH >= 480 mm ? 480 mm : (#DEPTH >= 450 mm ? 450 mm : (#DEPTH >= 420 mm ? 420 mm : (#DEPTH >= 400 mm ? 400 mm : (#DEPTH >= 380 mm ? 380 mm : (#DEPTH >= 350 mm ? 350 mm : (#DEPTH >= 320 mm ? 320 mm : (#DEPTH >= 300 mm ? 300 mm : (#DEPTH >= 270 mm ? 270 mm : (#DEPTH >= 250 mm ? 250 mm : 0 mm )))))))))))))))))
https://cad.onshape.com/documents/b9b3305a3ad2b3f2f803f97f/w/a0c42c2ad2127870732aa6e6/e/c7404778e9603741aab5f2f9
Ah! I see what you're up to there. There's not a way to actually select a different configuration via logic like this, but you can drive so much of your design via logic that perhaps you don't need to use an actual configuration. What leads you to want to change the configuration vs just changing values in your model based on logic?
It looks like your ternaries work, but this problem is a good job for a binary search algorithm and featurescript. I have run into similar issues in the past so I figured now is as good a time as any to make a custom feature for it. I'm out of time for today, but I'll post a video explanation shortly.
Here's a link to get the custom feature.
The Onsherpa | Reach peak Onshape productivity
www.theonsherpa.com
Derek Van Allen | Engineering Consultant | MeddlerThanks @EvanReese OK thanks for the clarifcation. I am sure there is another way. "What leads you to want to change the configuration vs just changing values in your model based on logic?"

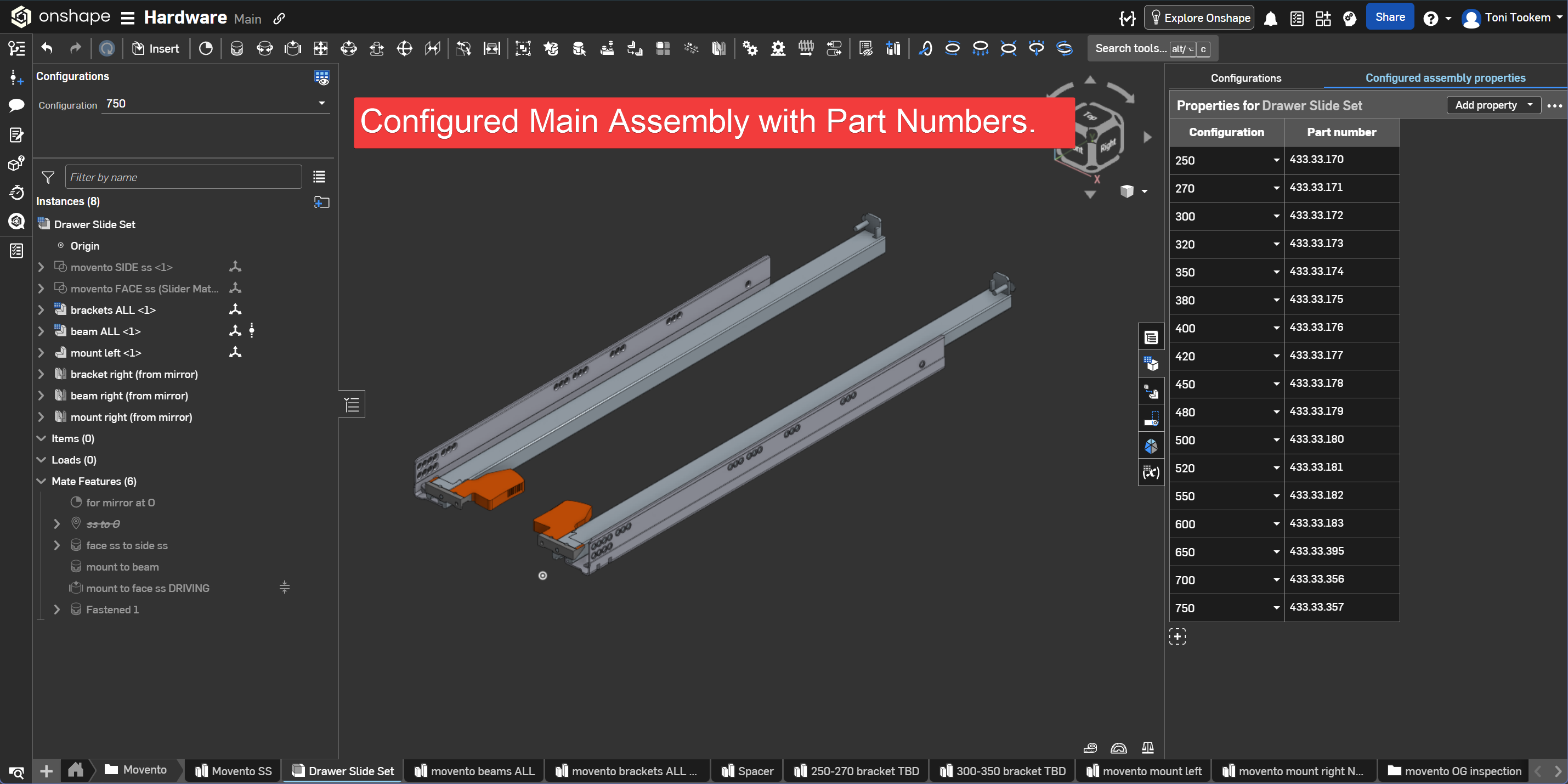

I thought changing config is the only way to get the part number to the BOM. See screenshots. I can share this doc with you directly if it helps.

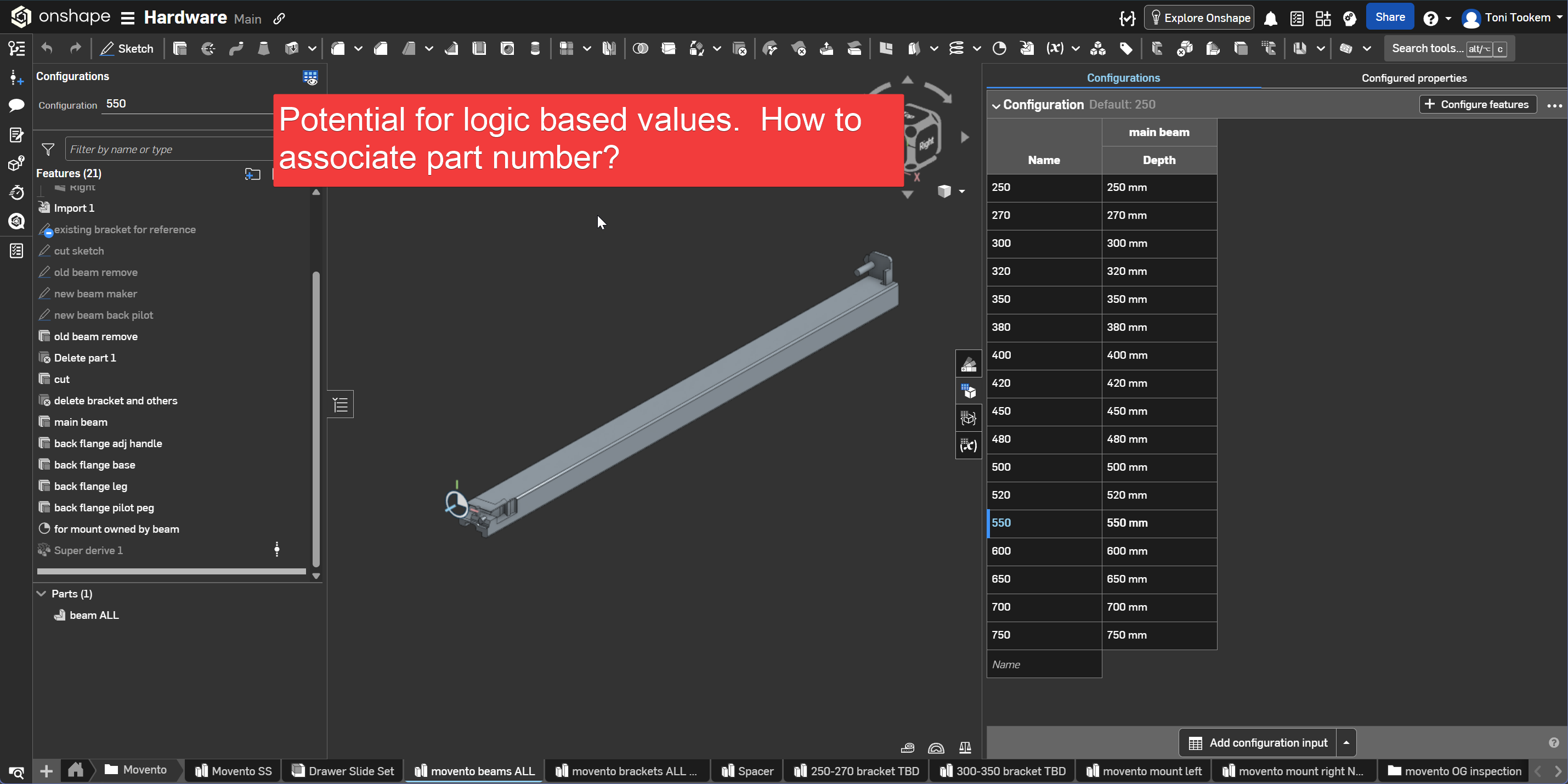

The beam is controlled by values and brackets and mounts are imported geometry. Lets forget the imported geometry for now and focus on that how does one assign a part number to eg 750 value for the beam ? Then we can pass through ONLY this part number to the main assembly.
BTW drawer slide depths Increments are not equal. They differ 20mm, 30mm and 50mm depending on specific part number.
Not again… try now
The Onsherpa | Reach peak Onshape productivity
www.theonsherpa.com
I see. In your case, why not just configure the depth value by the configuration drop down so no one ever gets the chance to try #DEPTH = 323.599283mm? You can limit selectable options to you list of values. That way you could also configure the part numbers as you're doing now.
If that isn't going to work, you can actually set the PN with a custom feature too if you want to go that route, but it's more complicated, and I'm not currently seeing the point of trying that here based on your example.
The Onsherpa | Reach peak Onshape productivity
www.theonsherpa.com
Just gonna go ahead and keep that gif bookmarked
Derek Van Allen | Engineering Consultant | MeddlerThanks @EvanReese for the " Nearest list value" FS. So I took it to the next level with a "Auto PN Assignment" FS. (Thanks to Claude Sonnet 4.5)

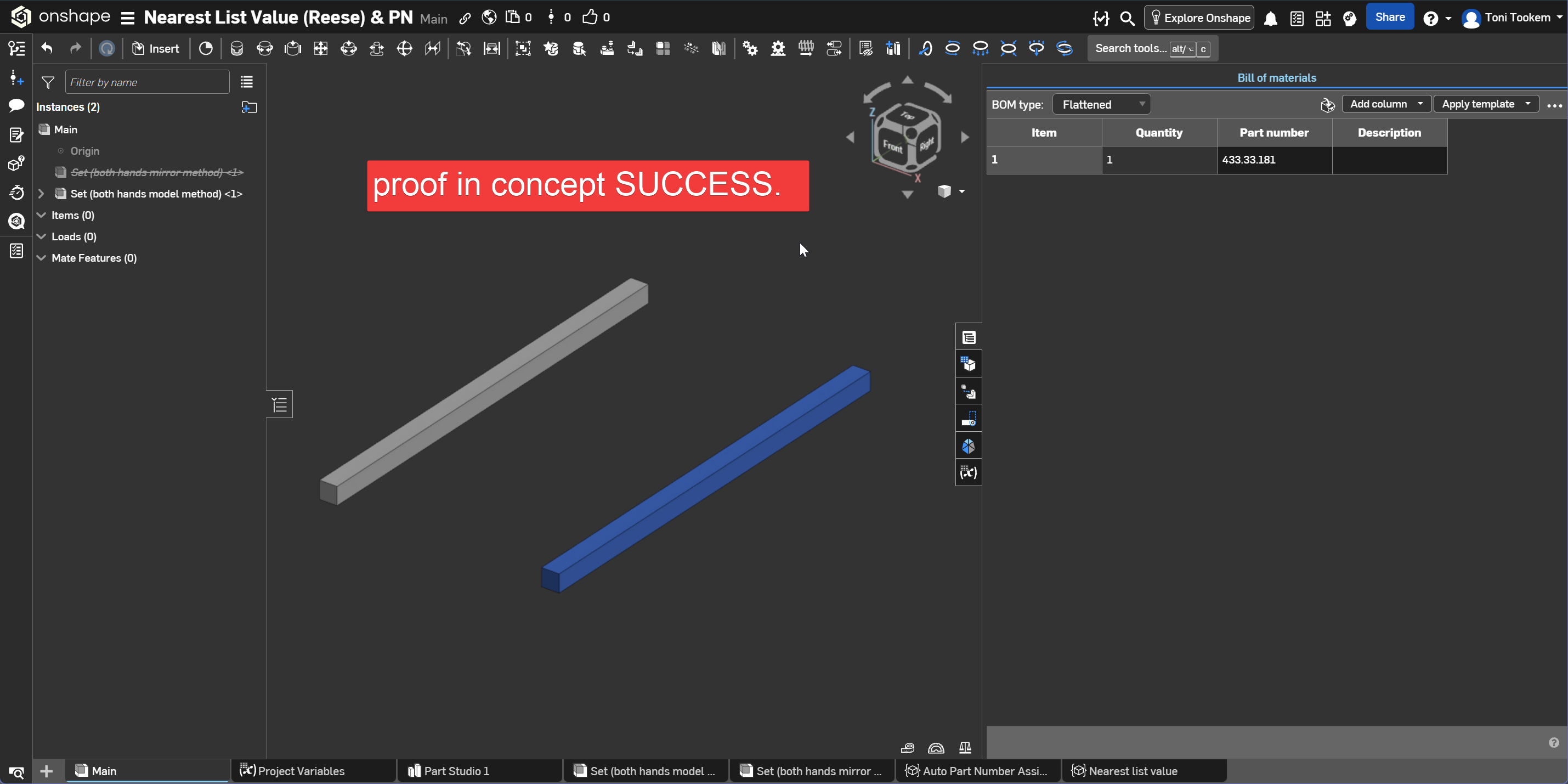

Here are the results:
https://cad.onshape.com/documents/9625b82998a2f86e9f23a403/w/6dd35be56d16cb9825eadc4d/e/7ac9b05c5786e987a49652b6
I've built out a bit more a complete workflow for testing so you would adjust "Project_Depth" in the variable Studio.
I think it's convoluted process whereas I'd be much more straightforward to just have logic configuration switching at assembly level but for now I guess this is work around.
