Help with Complex "Fillet"

nolan_van_dine

Hi there,

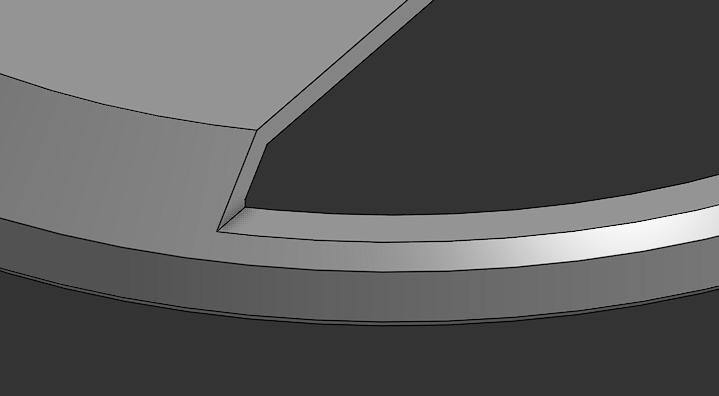

I'm wondering if anyone can offer suggestions on how to create a "fillet" between the edge of the slanted section and the top of the ring but tangent to the horizontal radial edge as shown in blue but flush and with two squared edges

jelte_steur814

do you mean like this:

nolan_van_dine

I don't think so but its hard to tell, that looks like the regular fillet tool which creates a curve along the entire radial face.
I'm looking to keep the selected face flat

_anton

Depends on what exactly you're asking of this fillet. Easiest solution is to take the fillet exactly to the bottom of the lid, thusly: https://cad.onshape.com/documents/f62756ba36438dddd7c73f9a/w/b120076dd65dbe57887c613e/e/3f0049b6328a3395f8c24dd9

Using width fillet is another option: https://cad.onshape.com/documents/f62756ba36438dddd7c73f9a/w/b120076dd65dbe57887c613e/e/fdf38b0bf83b33c2353886d8

MDesign

Like this?

S1mon

I would probably use a couple of bridging curves and a boundary surface. Then you could make a small chamfer or fillet, and replace that face.

EvanReese

throwing my hat in the ring. This solution is very flexible.https://cad.onshape.com/documents/9a6ca0c6773ba398f1268908/w/c8c32e3b908a8b65897c32dd/e/87810b113552842643c13476

MDesign

https://forum.onshape.com/discussion/comment/116076#Comment_116076

variable fillet is probably what your looking for.

EvanReese

https://forum.onshape.com/discussion/comment/116419#Comment_116419

ooh clever use of that!
