Manipulator Style Cheat Sheet?

S1mon

Does anyone have a cheat sheet for all the manipulator styles/types? There are no illustrations in the standard docs and I had to dig around to figure out that the one I was looking for is called "tangential".

See also:

https://forum.onshape.com/discussion/30130/add-illustrations-to-the-standard-library-documentation

Caden_Armstrong

Default:

Secondary:

Simple:

Tangential:

S1mon

@Caden_Armstrong

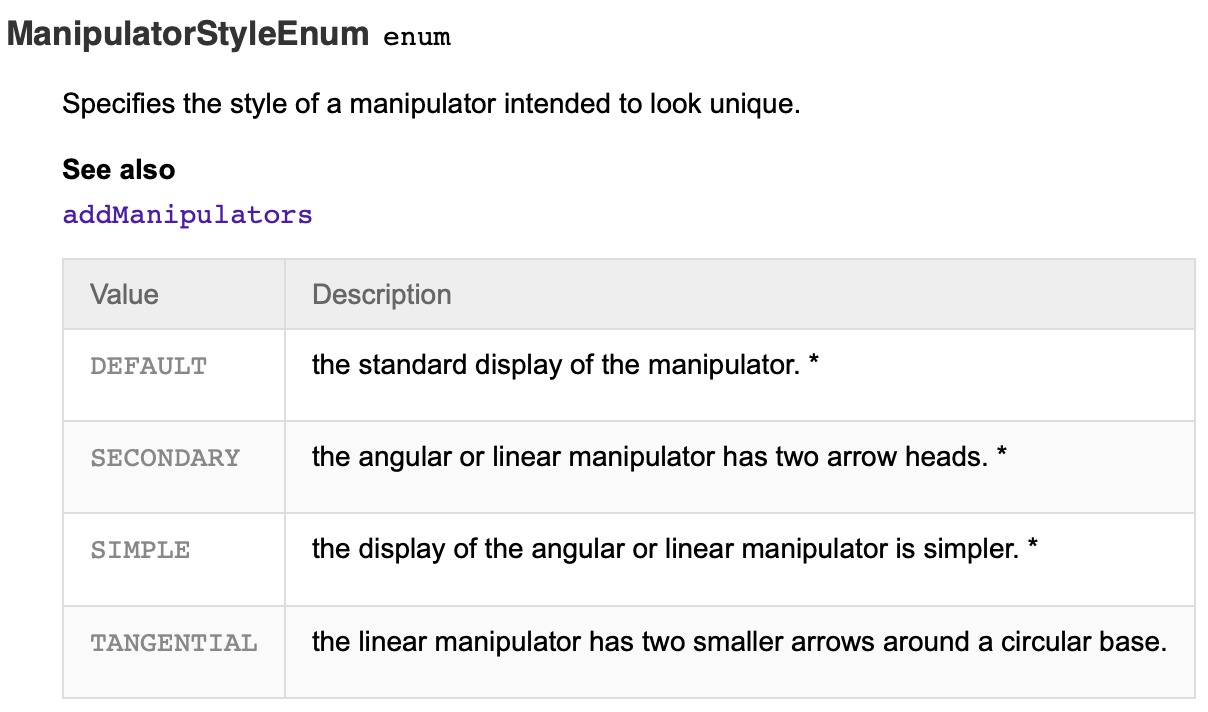

Thanks. That covers the styles:

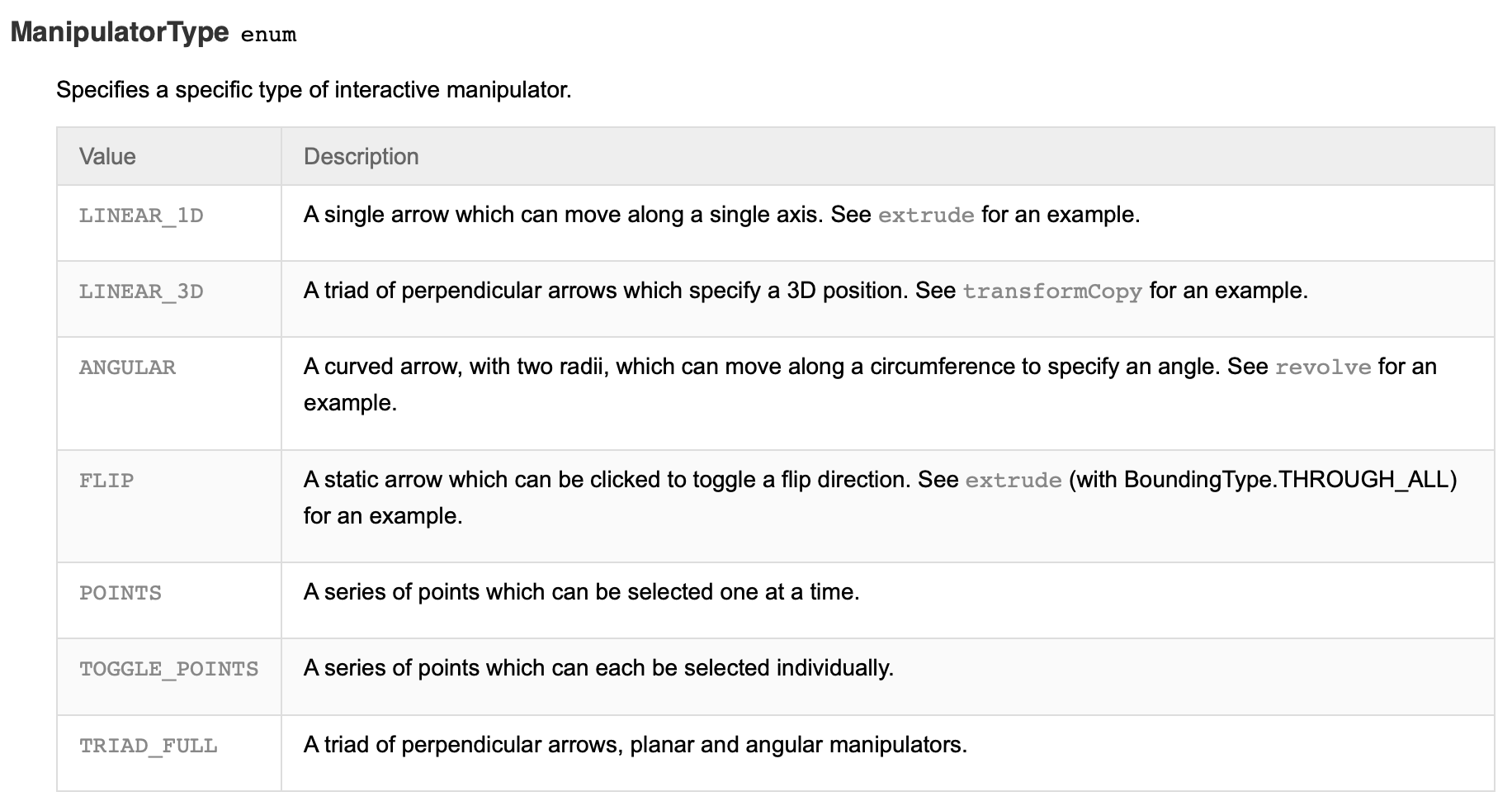

But then there are also a bunch of types:

And then, can I have a secondary/triad_full?

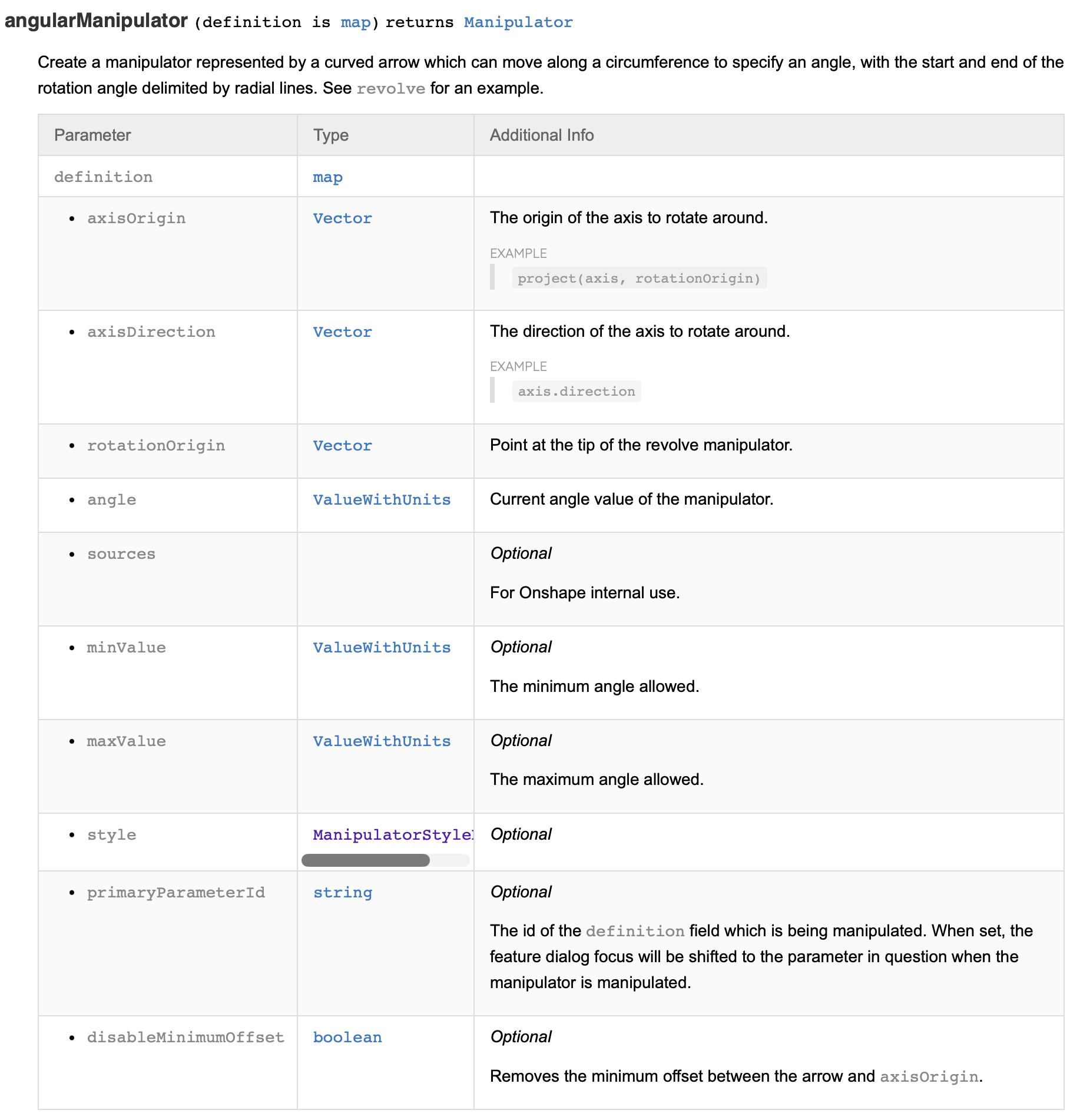

Angular is really painful without a diagram of what the various inputs mean:

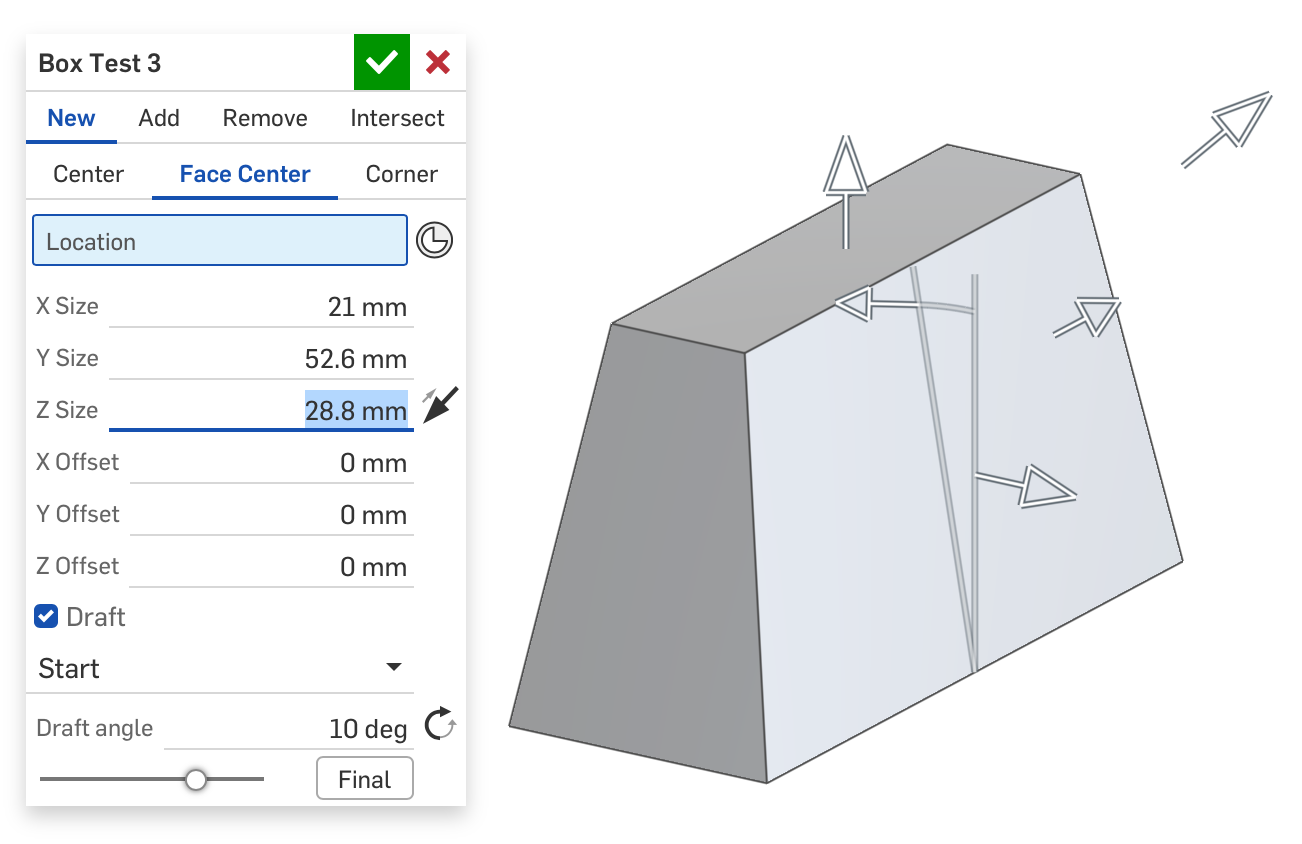

When I set up a pretty simple test feature, it took me a lot of flipping and axis choices to get to the point where I finally got the draft manipulator on this in the right orientation:

Caden_Armstrong

At some point in programming you just got to try it out and see for yourself.
Its part of why featurescript is great, its really easy to whip together a quick sample just to test things out.

What about the angular documentation could be improved? To me, everything looks pretty well explained.

S1mon

In retrospect, I guess the angular info is clear-ish. However, as I was trying to use it to drive draft, in my brain, pull direction is one of the most important "axes", and I assumed the stationary line of the manipulator was the axis. The axis is actually not a visible part of the manipulator at all. It's the axis of rotation. Again, in retrospect, I imagine that the positive z of that vector defines which way the angle winds, and the x or the y defines the stationary part. However, a simple diagram would have really made that a lot more clear.
