Vibe-coding FeatureScript

Hi all,

I just finished a FeatureScript feature that lets you import an SVG (as a text blob) and convert it into sketch elements.

https://cad.onshape.com/documents/e37c5dc041b343cb6bde607d/w/f7b0bf8a214658dc31c353f6/e/7217f6a6f01abf2583a1d61c?renderMode=0&uiState=69388fdff20ff15b50aa8344

I created the attached guidelines to use with any LLM to improve its ability to generate appropriate FeatureScript.

Most of the work was done in Claude in the browser, with passes through ChatGPT, Gemini, and Grok, depending on how well they resolved issues, how strategically they thought, and how well they handled different aspects of coding. I also used Cursor for some of the work. All the models failed at some point, which is why I switched among them.

I also use Perplexity for general Onshape questions, development questions, and development environment questions. I mostly do this to separate these productivity questions to one place where I can get back to them, if needed.

In each of these LLMs, I create a space or project where I provide an overview of what I am trying to accomplish and…the guidelines. Also, I save every conversation (that I can remember) to feed an LLM at the end of the project to do a post mortem and generate learnings.

An overview from Notebook LLM from saved conversations:

Developing FeatureScript features for Onshape requires developers to master specific aspects of the language, prioritize performance within its constraints, and understand the unique requirements of CAD geometry modeling.

The primary lessons learned from building complex features like the SVG-to-Sketch converter fall into five categories:

1. FeatureScript Language Quirk and Syntax Strictness

FeatureScript operates with strict rules that differ significantly from common scripting languages:

• Strict Typing and Usage: Explicit parameter and return types are strictly required for all functions. Furthermore, all declarations must be used or removed, otherwise they trigger an error.

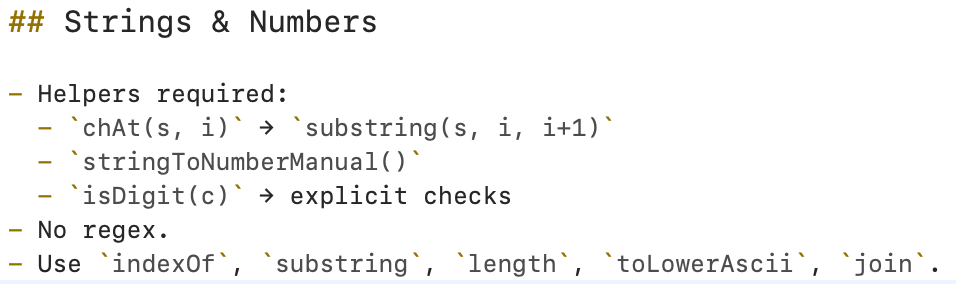

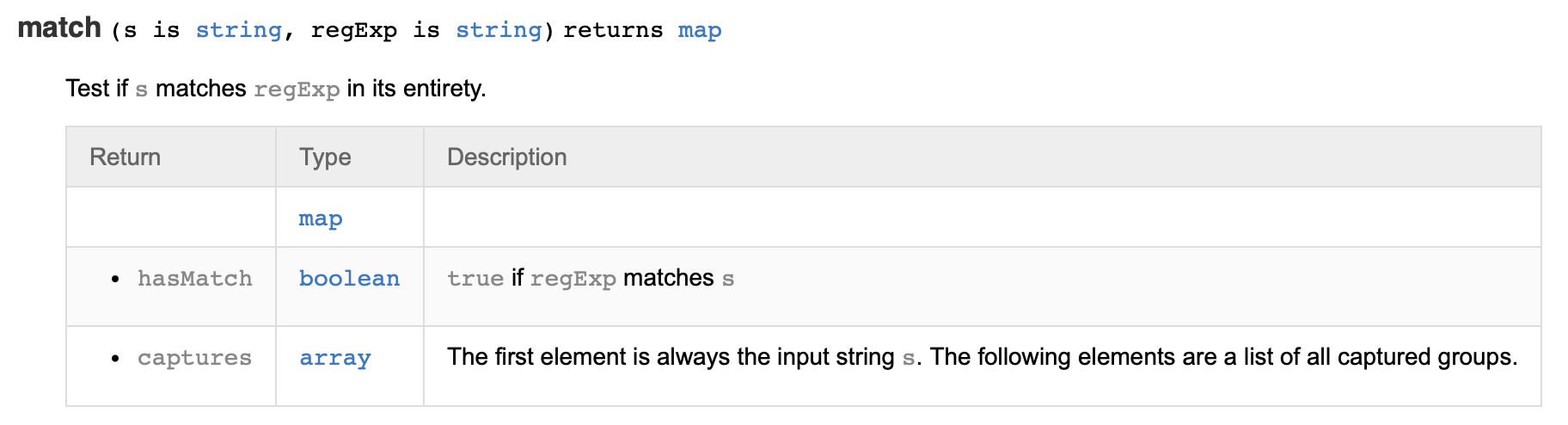

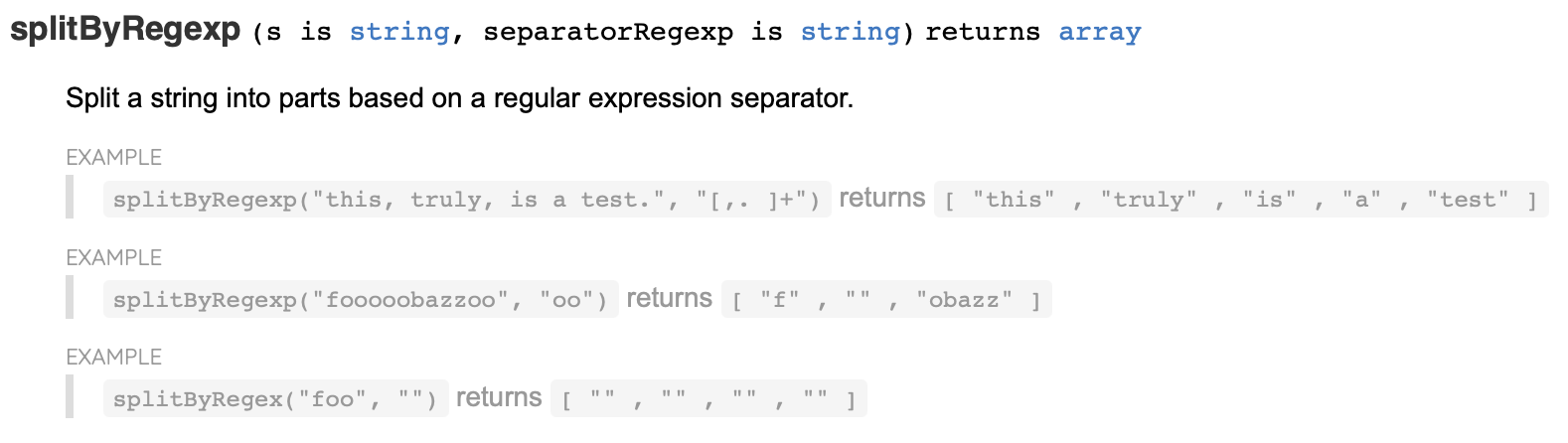

• Unsupported Operations: The language does not support many standard operations. For example, developers must manually implement basic helpers, such as a function to retrieve a character at an index (chAt) and functions for safe digit checking (isDigit), as the core library may lack them.
• String Comparison Limitations: FeatureScript strictly prohibits comparing strings using range checks like >= or <=. Instead, checks must use explicit equality matching or the find/indexOf function within a defined whitelist string to check for valid characters or commands.
• Variable Declarations: Follow the rule of one variable declaration per line for both var and const.

2. Performance Optimization: Avoiding O(n²) String Operations

The most significant performance bottleneck identified in FeatureScript parsing is string concatenation:

• Avoid Concatenation in Loops: Repeatedly building a string inside a loop (result = result ~ c) leads to O(n²) complexity because a new string is created and copied in every iteration. For large inputs (e.g., a 10,000-character file), this translates to tens of millions of operations.
• Use the Array + Join Pattern: The high-performance solution is to accumulate string fragments into an array (var parts = [];) and then use the built-in join(parts, "") function once at the end. This reduces the total complexity to the efficient O(n). This is critical for frequently called functions like number and path data parsers.

3. Handling CAD Geometry and Units

CAD modeling in FeatureScript introduces unique requirements for geometry creation and coordinate handling:

• Mandatory Units: Coordinates passed to geometry functions, as well as angles used in trigonometric functions (cos, sin, atan2), must have explicit units (e.g., * millimeter or * radian). Plain numbers cannot be used for trigonometric input.
• Point Dimensionality: Onshape's sketch functions ultimately expect 3D vectors with a unit definition. The toMM helper function must ensure it creates the geometry point as a 3D vector, typically by adding a z=0 coordinate multiplied by the appropriate unit (vector(x, y, 0) * millimeter).
• Coordinate System Inversion: SVG defines geometry using a Y-down coordinate system, while Onshape uses a Y-up system. Correct geometry conversion typically requires negating the Y coordinates during translation.

4. Robust SVG Parsing and Data Handling

Creating a reliable parser requires defensive coding against real-world file formats and FeatureScript's type system:

• Handling Metadata/Tags: Implement robust attribute parsing logic that does not rely on the attribute order. This prevents errors when attributes like style="..." or other extraneous data appear before critical attributes like d="...".
• XML Cleanliness: The parser must explicitly skip XML comments (<!--...-->) and processing instructions, as the data inside them can otherwise be misinterpreted as elements, causing unexpected behavior.
• Line Ending Compatibility: Since FeatureScript's string escape sequences ("\r") may not reliably recognize Windows carriage return characters (\r), a robust solution involves using a whitelist approach to keep only valid characters (printable ASCII, newline, tab) and drop all other control characters during input preprocessing.
• Relative Path Commands: To correctly parse SVG paths using lowercase (relative) commands (e.g., m, l, c), the parser must constantly calculate and update the "current position" (cur) based on the previous segment's endpoint.

5. CAD Topological Closure Paradox

Achieving reliably closed profiles in Onshape sketches is notoriously difficult and requires careful handling of the SVG Z command:

• Geometric vs. Topological Closure: Although an SVG path may be geometrically closed (the last point is mathematically identical to the first point), Onshape's sketch solver requires an explicit topological closing entity (a line segment) to recognize the profile as a closed loop.
• The Snapping/Hint Fix: The ideal solution to maintain the highest quality geometry (G1/G2 continuity) is to re-enable "snapping" logic for the final curve/line segment, ensuring the endpoint is mathematically identical to the starting point. Crucially, the script must then always emit a line segment for the Z command, even if it has zero length. This zero-length line acts as the necessary "hint" for the solver to recognize the loop without creating microscopic, non-coincident gaps that lead to continuity errors.
• State Management is Key: Because FeatureScript passes the mutable Sketch object by value, any function that adds geometry (emitPath) must return the updated sketch object, and the calling feature logic must reassign this object (sk = result.sketch;). Failure to do this means the final skSolve() function runs on an incomplete sketch, which remains an open profile.
