Making dimensions EQUAL = whilst in a sketch
null_null3941
Member Posts: 17 ✭
in General
When in a sketch, it would be great if we could make dimensions equal so the dimensions change together when I make a dimensional change.
0
Comments
Or you can use constraints.
Using the EQUALS CONSTRAINT
The darker lined dimension in the upper rectangle is DRIVING the gray lined dimension in the lower rectangle
ALSO, all lines on the upper rectangle have the EQUALS constraint applied
Whereas in the lower rectangle, only the right most line has the EQUALS constraint applied
@Matt_Shields this, as mentioned (in one of the posts i saw with regards to this) creates a feature tree full of functions.. is there really no way that onshape will take on this mod to enable the dims to have equations in them? this is a really neat function of most cad systems that ive used anyway..
Dimensions do have equations in them. You can even use comments and such.
I used to miss being able to set dims equal to other dims from SolidWorks. But then after a while in Onshape I found it is not necessary at all.
The on the fly variable works just fine, you can also create a variable from the measuring tool with a single click.
Between that and the equal constraint, you're fully covered.
If you end up with a bunch of variables on the tree, then you can use the variable menu on the right side flyout to manage them quickly. Otherwise you may just be abusing that style of relationships. I actually like the variable method since you can see at a glance the design intent without even opening the sketch. Whereas in SolidWorks this was hidden until you edited the dimension.

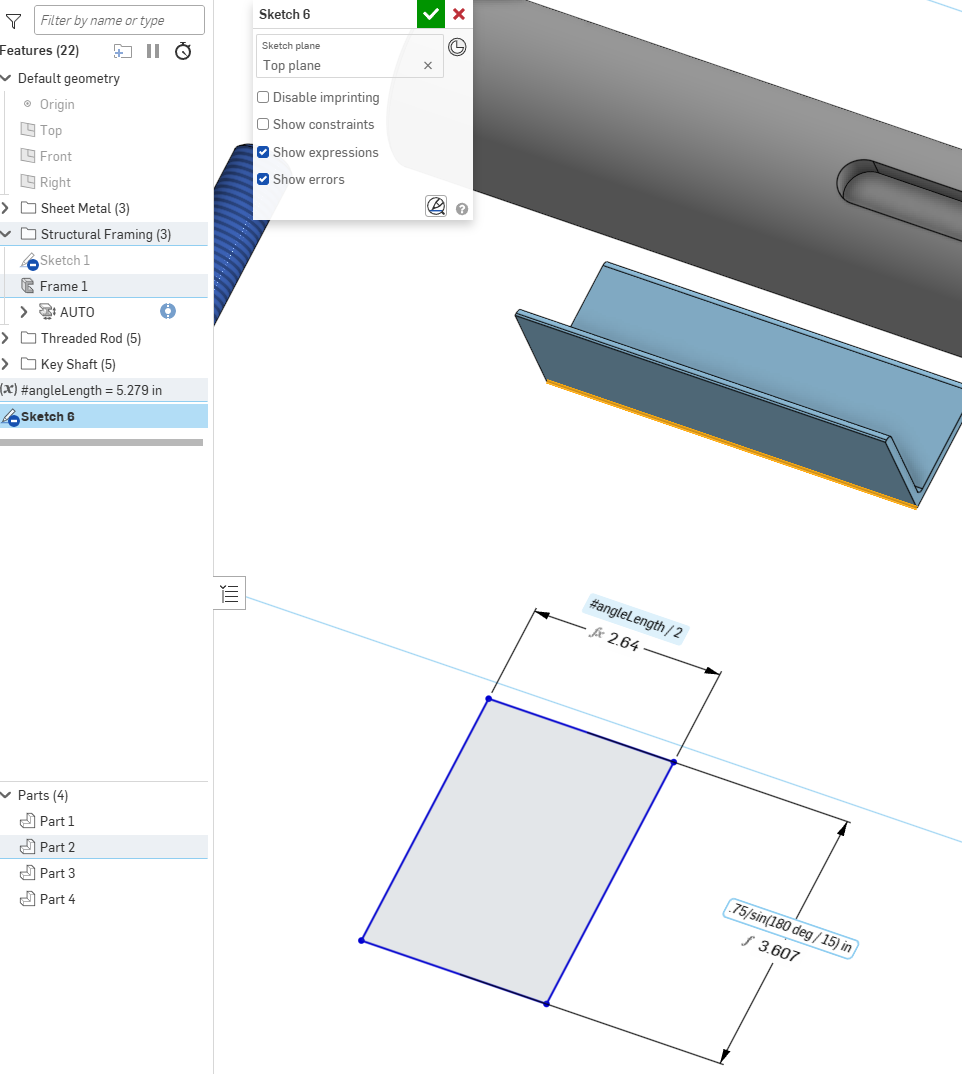

you can also check the show expressions option in the sketch to see all your equations.
I sometimes use construction lines as well. E.g. if I want to make a rectangle with L = 2*W, I'll have two construction lines through the middle of the long axis of the rectangle and set those two equal to the width.
Agreed, I use construction lines and relations most of the time.
It helps make it obvious what the design intent is at a glance without the need for variables or hidden constraints
