Fill a hollow object

andrea_6andrea_6 Member Posts: 7 ✭✭
Hello. I have an object with a hole inside. I want to make it solid, how can I fill hidden holes?

Best Answer

Answers

  • noanoa Onshape Employees, Developers Posts: 141
    Hi @andrea_6 ,

    I recommend trying our Delete Face tool. More info here: https://cad.onshape.com/help/Content/deleteface.htm

    Depending on the complexity of your model, you should be able to use that tool, select all the internal faces, and the model will fill.

    If you make your document public and include a link to it here, we may be able to help more.

    -Noa

    Noa Flaherty / Customer Success / Onshape Inc.
  • philip_thomasphilip_thomas Member, Moderator, Onshape Employees, Developers Posts: 1,381
    edited January 2017
    Alternate methodology where there are multiple voids or multiple faces that are difficult to pick;

    Lets say your part is called Part1

    1) Generate a cube around your part (Part2)
    2) Use Transform/copy to make an identical cube (Part3)
    3) Boolean subtract Part1 from Part2 (keeping tools)
    4) Hide Part1 Part2 Part3
    5) Delete all other bodies (these are the voids)
    6) Show Part1 Part2 Part3
    7) Boolean subtract Part2 from Part3 (you now have an exact copy of the original part (minus the voids)
    8) Optional - this step preserves the original body ID - use this step if Part1 has been derived somewhere else or used in an assembly. Boolean union Part1 and Part2 (make sure you select Part1 first).

    This process is very repeatable and works for any number of voids. Because the steps are always the same, it would lend itself very well to a custom feature (FeatureScript).

    I hope this helps :)



    Philip Thomas - Onshape
  • philip_thomasphilip_thomas Member, Moderator, Onshape Employees, Developers Posts: 1,381
    AWESOME!!! Neil's Solution is better :)
    Philip Thomas - Onshape
  • andrea_6andrea_6 Member Posts: 7 ✭✭
    A lot of good answers here! :)
  • Isaac_9Isaac_9 Member Posts: 1 ✭✭

    I also had issues with voids.

    I slowly realized this after my 3D printer slicer (Cura) was simulating some very strange wall geometry that I could not resolve in the slicer settings.

    I was about to finish with Neil & philip_thomas' solutions using the Boolean feature. That's when I noticed the negative space wasn't producing additional parts to union with.

    I thought the boolean operation must have filtered out this small void because of a small feature limit or something, or because it treated it as a gap rather than OP's voids. This would have been easy to just re-create the part with a final boolean operation.

    Then I realized my mistake.

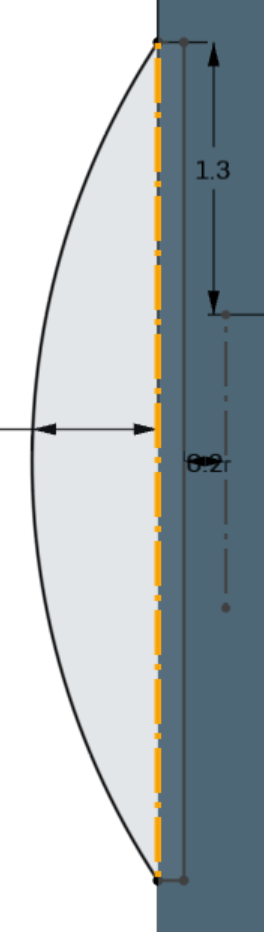

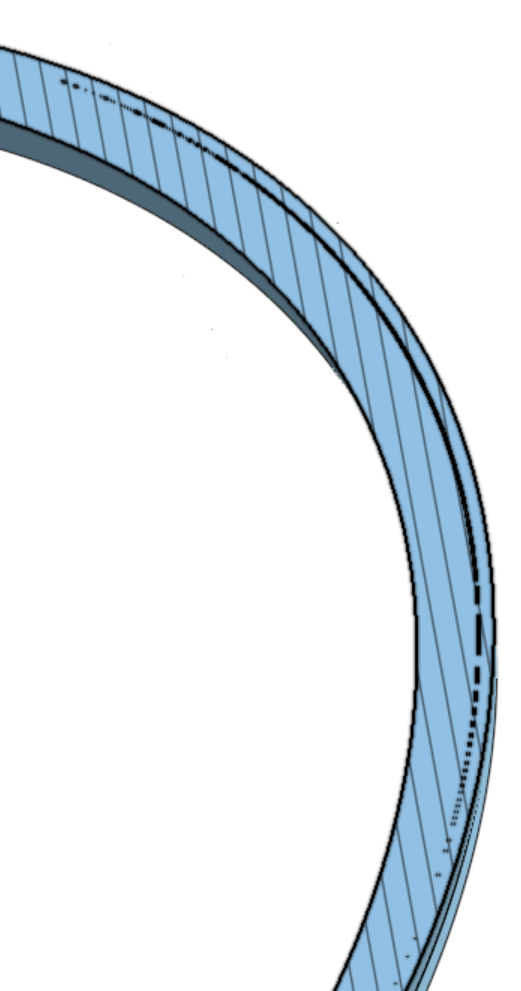

    The voids originally came from a sketch profile for a revolve feature closing itself at 0mm from the curved sidewall. For whatever reason, this wasn't perfect (the plane might not have been orthogonal to the wall) and was the source of my issue. I resolved this by offsetting the closed surface into the wall of the part with an offset from an internal wall. This completely solved my issue, and I no longer needed a workaround.

    In other words, good design practices help avoid issues.
