Center marks that extend past the hole

PauloPaulo Member Posts: 23 ✭✭
in Drawings
Hi - new to Onshape, but old at Solidworks - how can I create a center mark that extends past the hole? Like this:


Best Answer

Answers

  • Options
    H_WangH_Wang Member Posts: 20 ✭✭
    NeilCooke said:
    Hi @Paulo_C - welcome to Onshape! The centermark tool only puts crosshairs at the center of the hole. If you want to extend them you have to use the 2 point centerline. Please create an improvement request to have an option to change this behaviour in the category on the right -->



    Imagining doing this for tens of holes!
  • Options
    Ketil_VollandKetil_Volland Member Posts: 29 ✭✭✭
    This is very important question from Paolo, and it should really be changed into an improvement request as this is something I am sure a lot of engineers would like. Haibing_Wang has a very good comment to this, and I totally agree
  • Options
    Klaus_MKlaus_M Member Posts: 7 ✭
    I have also sent this question to the support and they answered that they are working on it ...

    The workaround is ok for a complete circle.
    It does not work properly for a partial circle, because the quarter circle points are not caught and it is difficult to place the line exactly.
  • Options
    Lucas_KuhnsLucas_Kuhns Member, csevp Posts: 88 PRO
    edited November 2022

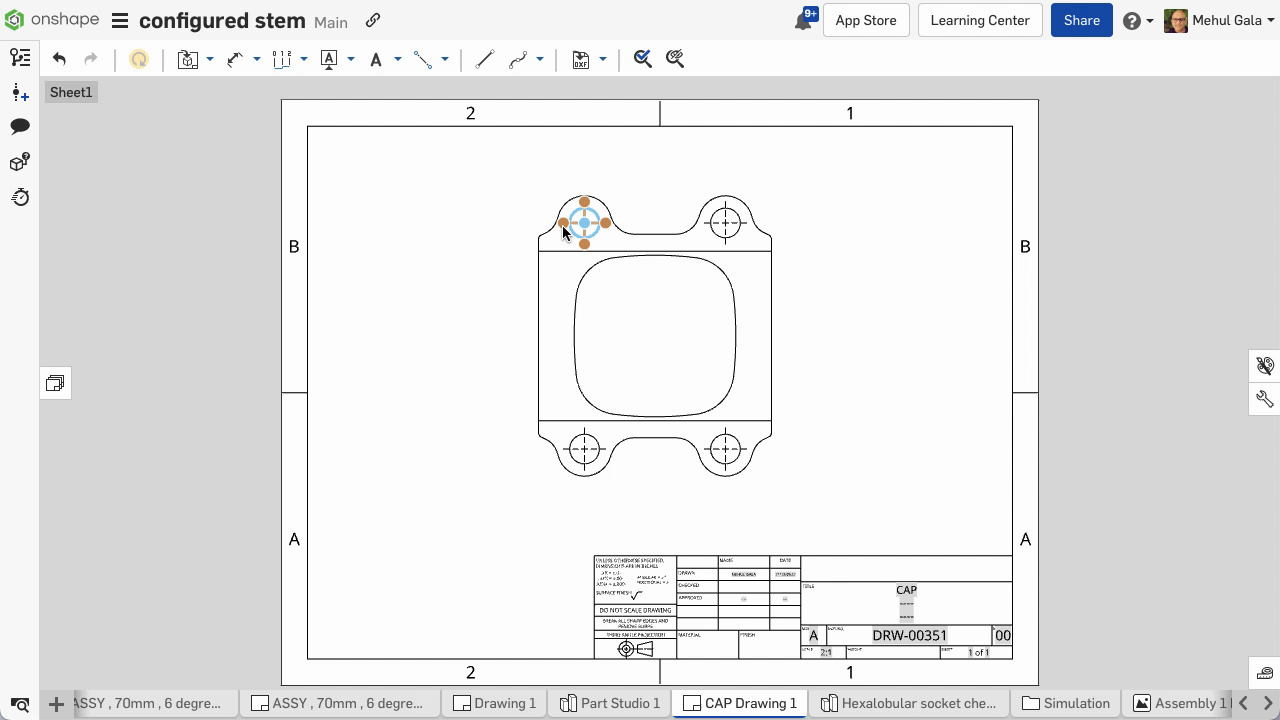

    If I understand the request correctly, it would appear that this was released in the most recent update of Onshape last week.

    Improvements to Onshape - November 21st, 2022 — Onshape
