"Same same, but different" or WTF with arks
evgenii_fyodorov
Member Posts: 5 ✭

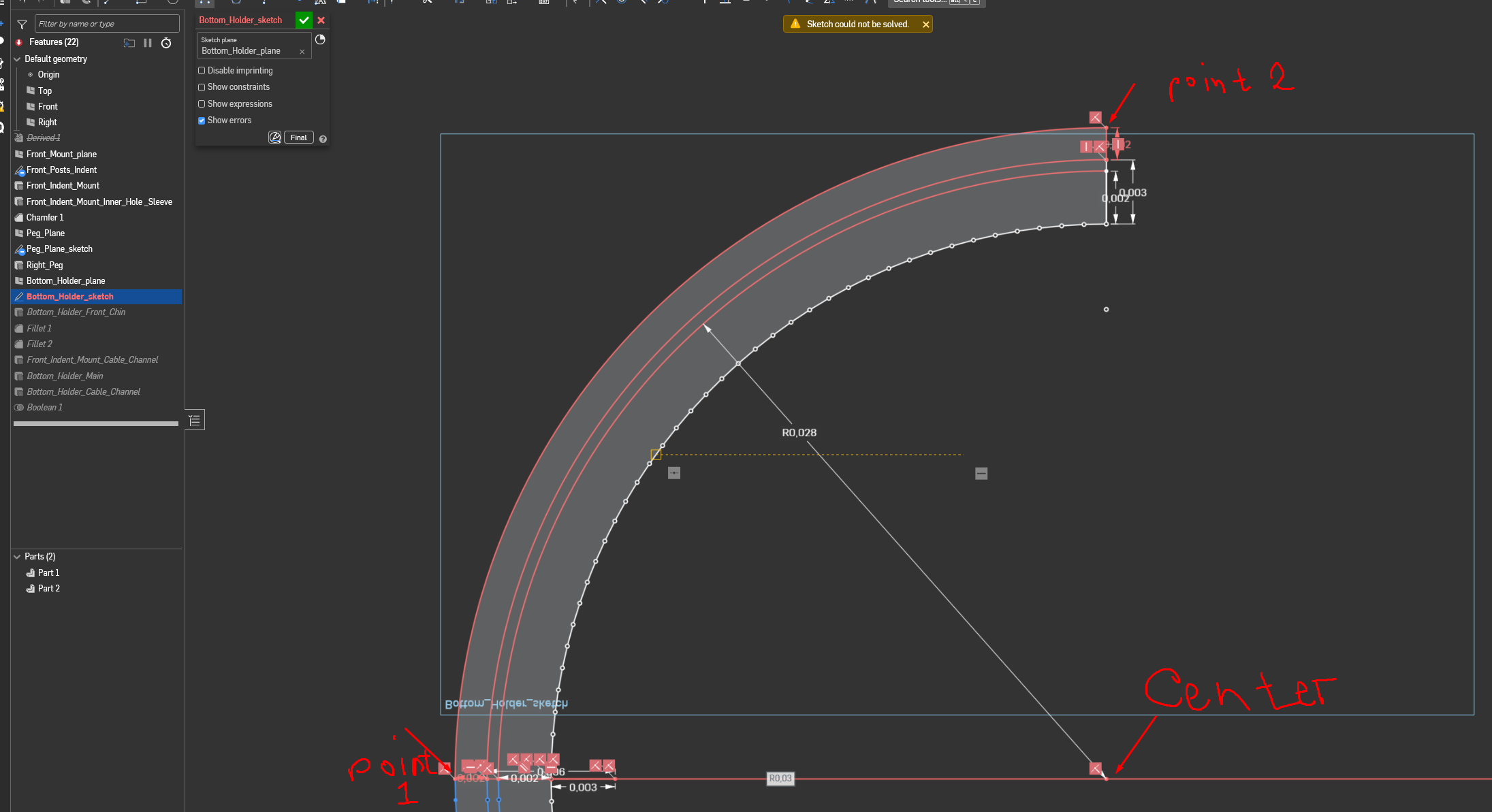

So, I want to put an arc in my sketch. I have a center point, I have a point where I want to start this ark and where I want to end it. So I use the center point arc tool and watch how half of my sketch get's lid in red, like so:

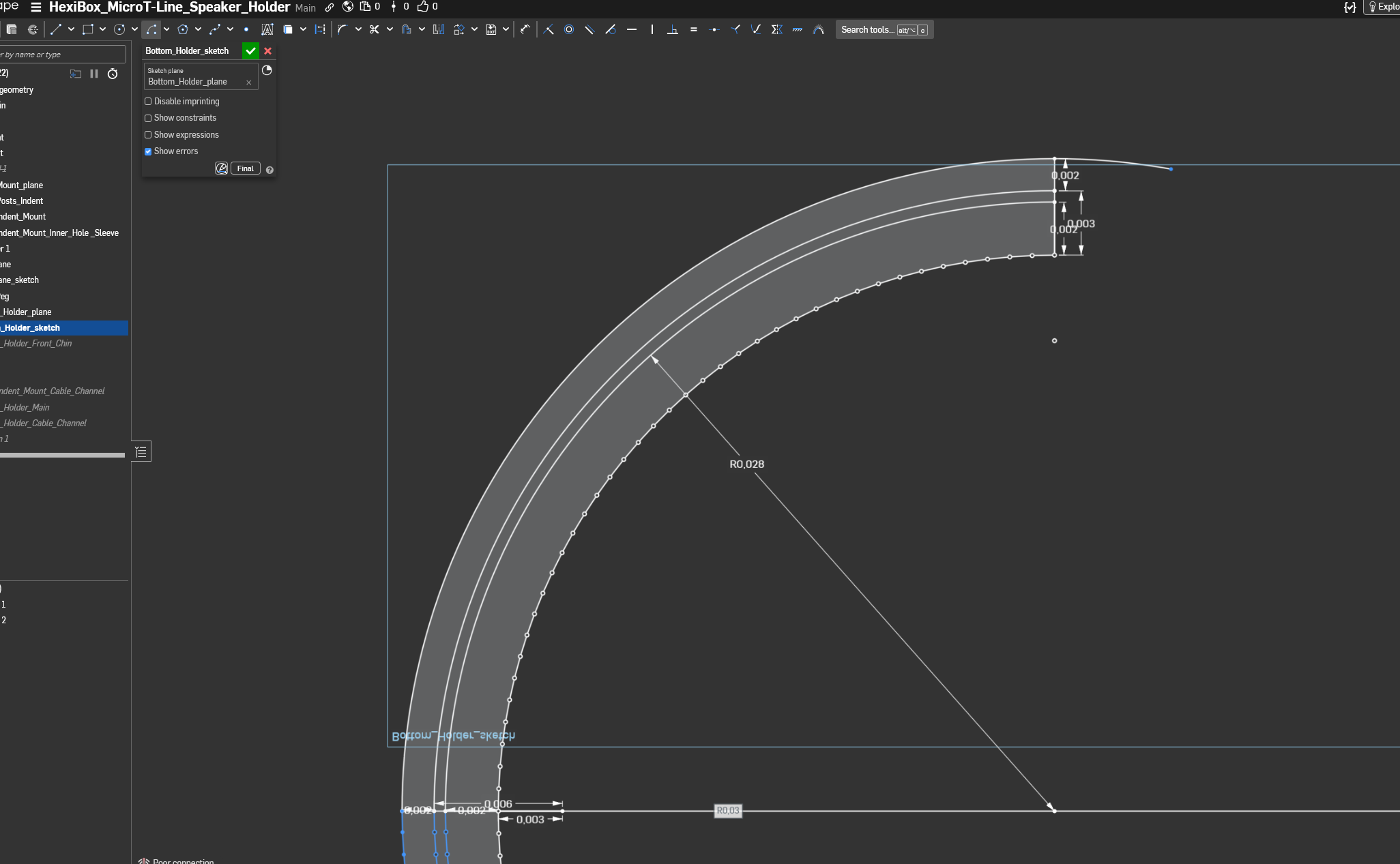

But when I do literally the same thing, but instead of ending ark in one of those two points, I continue the arc just a little bit further - everything is ok, sketch resolving correctly:
And that would be fine except that now I'm getting a loose end in my sketch. Which makes me a bit annoyed.
As far as I can see, it does not matter which direction the arc is made - the result is always the same. It precisely passes through both point 1 and point 2, but everything resolves correctly only when I get it past the ending point.
I acknowledge that I did not use any courses to teach myself CAD. I prefer just to dive right into making something. And when I eventually get stuck on something that I don't know how to resolve or how to do, the trial-and-error method (with a bit of heavy swearing) usually does the trick. But this time, I can't explain what's happening to Google well enough to get to the answer.
Thanks in advance for wasting time on my problems)
https://cad.onshape.com/documents/212f3144157fe77975f92f73/w/cf2d9021a4958718c308cf82/e/2f9467bf56600dd6362b8911?renderMode=0&uiState=697df61170507c976b079296
Comments

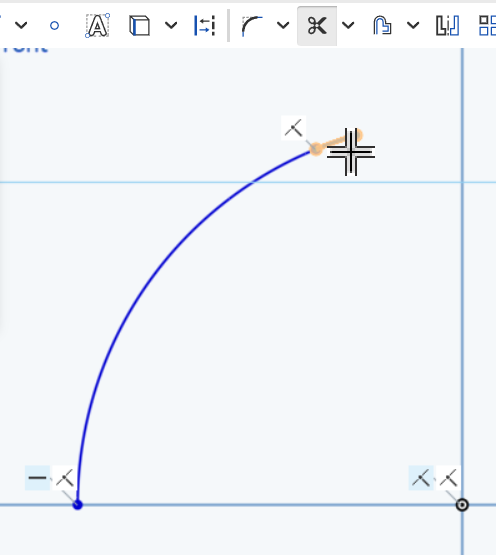

That is strange. I can't comment on why it's red. But since it works if you go past the point, what if you just use the Trim tool to trim off the loose end?
If that doesn't work then probably something is not lining up the way that it seems.
